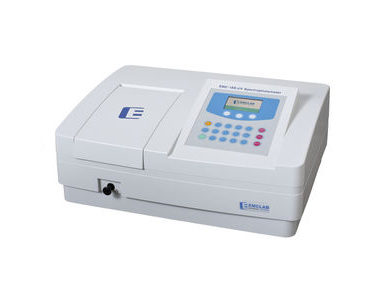

UV/VIS Spectrometer EMC-18S-UV

EMC-18S-UV are simple-to-use instruments with advanced performance, its stray light is only 0.05%T. The local stand-alone software provides functions of Photometry, Quantitative Test, Kinetics and System Utilities functions.

Features:

  • Color TFT screen
  • System can also save the test results. Total 200 groups of data 200 standard curves can be saved in the RAM. Convenient for check and reload.
  • Data can be restored after a sudden power cut
  • Auto setting wavelength
  • Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime
  • Pre-aligned design makes it convenient to change lamps
  • Large sample compartment, it can be accommodate 5-100 mm path length cuvettes with optional holders. A variety of optional accessories are available. Incl. EASY UV Basic PC Software
MODEL EMC-18S-UV
WAVELENGTH RANGE 190-1100 nm
SPECTRAL BANDWIDTH 2 nm
OPTICAL SYSTEM Single Beam, grating 1200 lines/mm
WAVELENGTH ACCURACY ±0.05 nm
WAVELENGTH REPEATABILITY 0.3 nm
PHOTOMETRIC ACCURACY <±0.05 % T or ±0.003A@1A
PHOTOMETRIC REPEATABILITY ±0.15 % T (0-100%), ±0.001A (0-0.5A), ±0.002A (0.5-1A)
PHOTOMETRIC RANGE 0-200 % T, -0.3 -3A, 0-9999 Conc.
STRAY LIGHT <0.05 % T@360 nm
STABILITY 0.002A/h@500 nm
BASELINE FLATNESS ±0.002A (200-1000 nm)
DISPLAY TFT color screen
NOISE 0.0005A@500 nm
DETECTOR Silicon Photodiode
CENTRAL BEAM HEIGHT 15 mm
STANDARD CELL HOLDER 4-position cell holder 10×10 mm
LIGHT SOURCE Tungsten lamp & Deuterium lamp
OUTPUT USB Port & Parallel Port (Printer)
POWER AC 110/220 V 50/60 Hz
DIMENSION (L x W x H) 490 x 370 x 220 mm
WEIGHT (in Kg) 11
