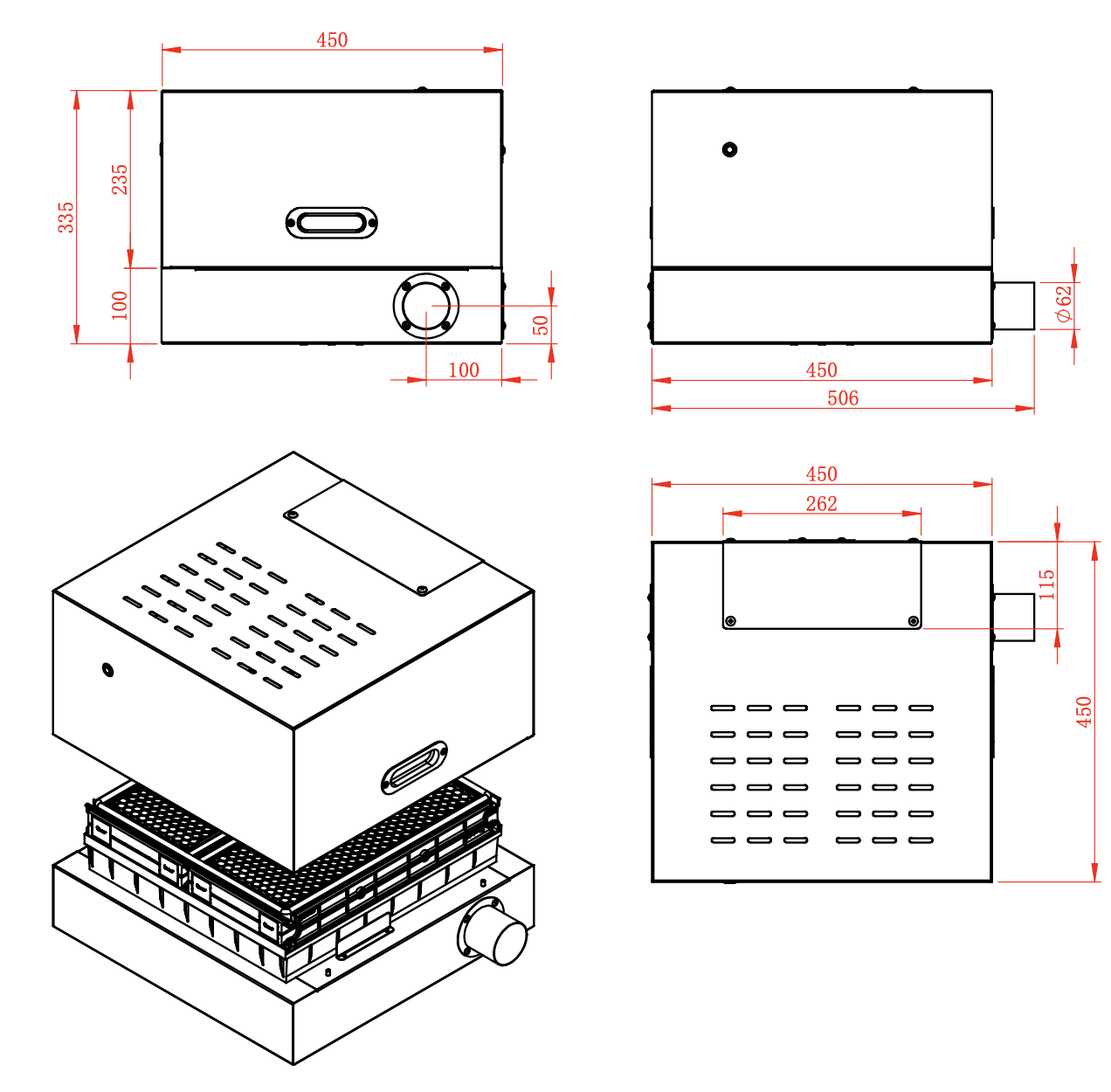

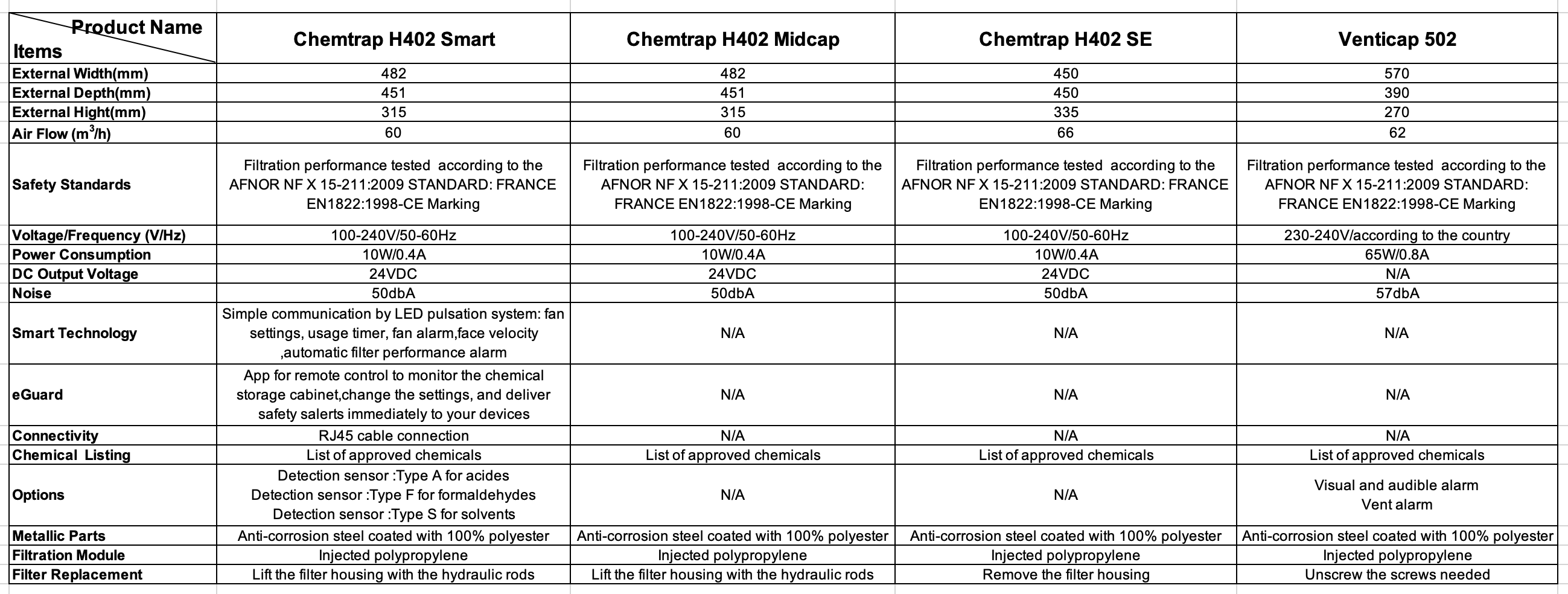

| External Dimension, L x D x H | 570 mm x 390 mm x 267 mm |
|---|---|
| Filtration module | Injected polypropylene (PP) |
| Metallic Parts | Anti-corrosion steel coated with 100% polyester |
| Pipe and fitting | Option 1 : Stainless Steel 1 meter / 60-70 mm diameter |
| Air Flow | 75 m3/h (fixed speed) |
| Voltage/ Frequency | 220-240 V / 50-60 Hz |
| Energy Consumption | 19 Watts |
| Sampling Port | Used to test for filter saturation points/breakthrough point |
| Additional Alarm (Optional) | Audible Fan failure alarm |
| Filter Type (One of these type) | 1. Carbon Filter, Type F2AS – volatile organic compounds / solvents |
Erlab Venticap 502 Filtration Box

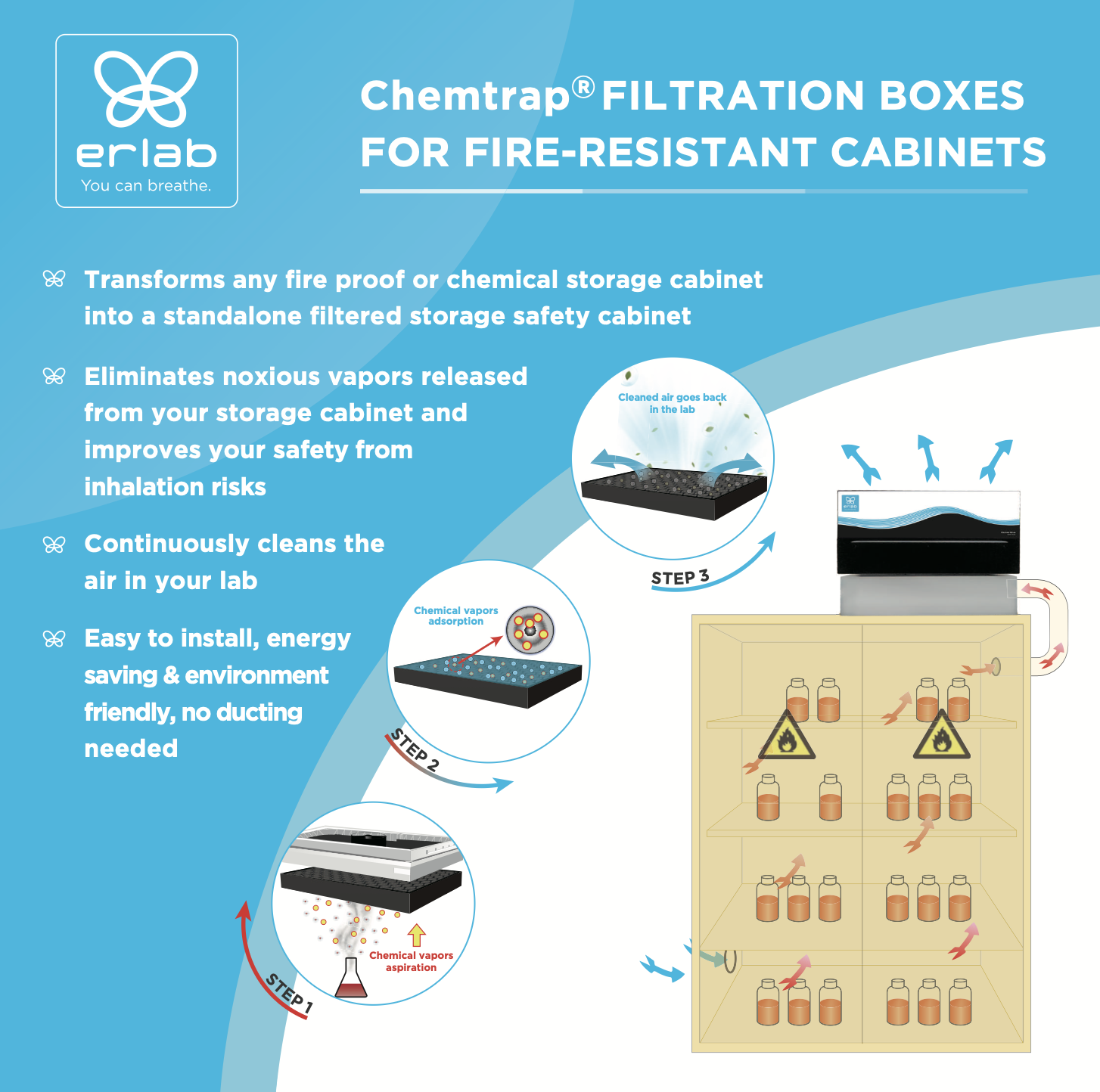

Erlab Venticap 502 Filtration Box provides ventilation for the chemical flammable and/or acid cabinet. Chemicals trapped in the cabinet internal chamber are capture, filter and return the clean air back to the laboratory. The filtration box is designed as a stand-alone system with no need for ducting. It is equipped with an adjustable pipe that accommodates connection points from the side or back of your existing chemical storage cabinet. It is designed to operate non stop 24/7, with very little energy consumption, to as low as 19 Watt. Compatible with a wide range of safety cabinet.
User protection
When connected to a chemical storage cabinet, Erlab Venticap 502 filtration box eliminates the noxious vapours that are inhaled when opening of the cabinet.
Simple and easy
No ducting is needed. A simple and fast connection with a universal pipe fitting, with option of fixed and flexible hose.
Laboratory air purification
Venticap 502 not only provide more than 10 times air change per hour for the chemical storage cabinet, it also helps to filter air in the laboratory to improve the indoor air quality.
