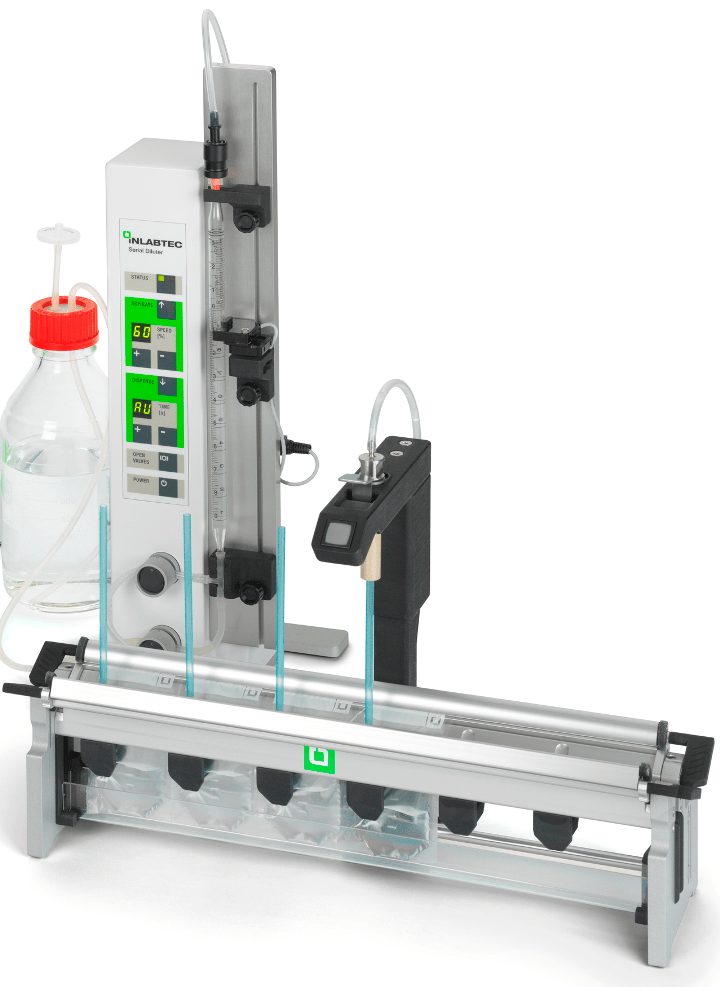

INLABTEC Serial Diluter SA complete, 6 dilutions, pipette straws

SKU: 110000

With the pioneer model Serial Diluter, the sample is placed in the bag together with the tip. The diluent then rinses the sample from the tip followed by a sterile air blast into the bag.

The method of operation of Serial Diluter SA is the same as with the Serial Diluter TA: place the sample, including the tip of the stem, into the first bag and attach the dosing arm for automatic dilution at the touch of a button – it’s as simple as that! Like the Serial Diluter TA, the Diluent flows through the culm for mixing and diluting.

Performing a serial dilution has never before been as simple and convenient as with the Serial Diluter and in addition without going through the labour intensive process of preparing serial dilution tubes!

Number of dilution steps

1 to max. 6

Compatible pipette tips

All known pipette straws with a length between 160 and 220 mm

Process time per dilution

< 4 s per dilution using LO Pipette Tips or pipette straws

Interfaces/ connection sockets

1 x USB socket for software updates
1 x connection socket optical sensor
1 x connection socket bag holder
1 x connection socket 24VDC power supply

Total weight

4.9 kg

Dimensions (W x H x D)

Dispenser unit: 175 x 480 x 180 mm
Bag Holder: 430 x 150 x 120 mm

Mains voltage

100 – 230 V / 50 – 60 Hz

Signs power adapter


INLABTEC Catalogue


INLABTEC Serial Diluter SA Manual
