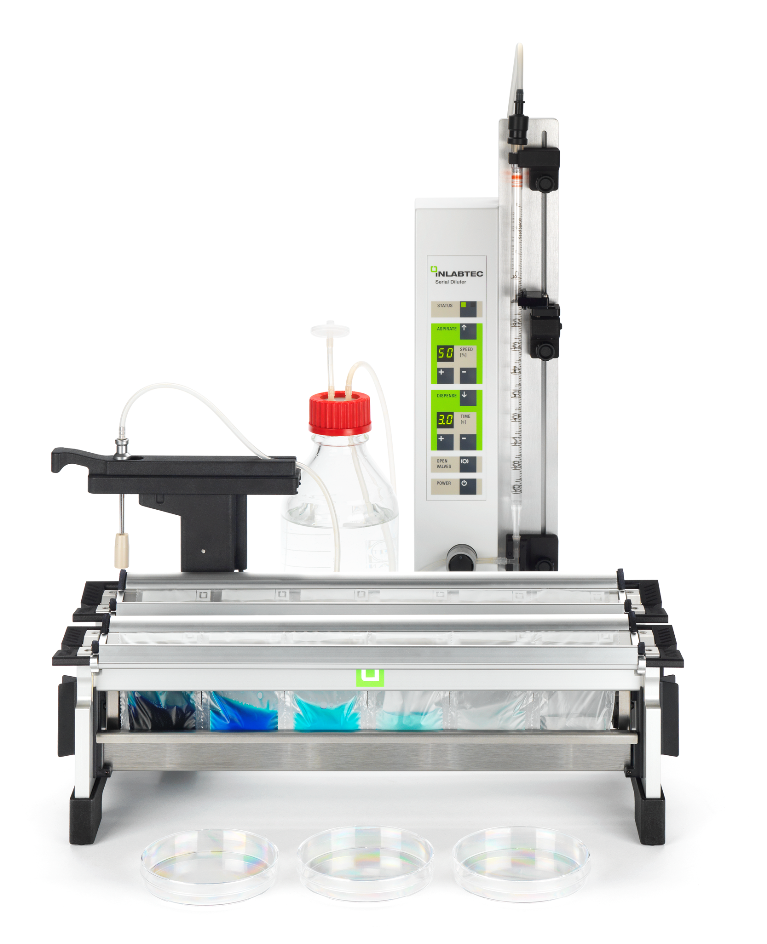

INLABTEC Serial Diluter UA12 complete, 12 dilutions, with bag vortexer

SKU: 150000

Connect the diluent and a 10 ml pipette, insert bags and start diluting! The new Serial Diluter UA with integrated mixer and intelligent process monitoring guarantees reliable and efficient dilution of samples for viable cell counts.

The procedure is 100 % identical to the ISO method – instead of pipetting into a test tube filled with 9 ml of Diluent, pipette into a filled bag. The Serial Diluter UA is available in six or twelve-stage versions.

The Serial Diluter UA with an integrated, highly efficient bag mixer which universally suitable for all microbiological sample types including viscous, high-fat or sugar-containing samples such as cream, egg yolk, syrup, etc.

Number of dilution steps

1 to max. 12

Bag mixer

Paddle type, stainless steel
Mixing time: adjustable 0. 5 s – 99 s
(factory setting: 3 s)

Compatible pipette tips

All known 10 ml pipettes made ​​of glass or plastic

Process time per dilution

3 s (corresponds to the mixing time set)

Interfaces/ connection sockets

1 x USB socket for software updates
1 x connection socket optical sensor
1 x connection socket bag holder
1 x connection socket 24VDC power supply

Total weight

6.5 kg

Dimensions (W x H x D)

Dispenser unit: 175 x 480 x 180 mm
Bag Holder UA12: 430 x 200 x 280 mm

Mains voltage

100 – 230 V / 50 – 60 Hz

Signs power adapter


INLABTEC Catalogue


INLABTEC Serial Diluter UA Quick Guide


INLABTEC Serial Diluter UA Manual
