Mini Shaker

SKU: MS-LR/R/L/S/FS/5TR/1FH/23FH/5FH/SNH/TH/FLH

※1. Excluding protrusion and holder.

※MS-FS is a set of seven options for [5TR/1FH/23FH/5FH/SNH/TH/FLH]

※Holders and racks are not included.

※Custom-made holders and racks are available. Please contact us

Features

  • It is compatible with the ambient temperature 0 to + 50 °C environment that can be used in the incubator. (No condensation)
  • Various shaking methods are available to choose from according to the application.
  • Shaking speed can be adjusted intuitively with simple knob structure.
  • Uses a brushless motor to achieve a low rotation range. Has excellent durability.
  • Can be used in a small space!
MS-LR

Order No: 4-1724-01
Specifications
Shaking Method: Reciprocating/Swirling
main unit size * 1 (mm) : 150 x 169 x 118
Shaking Method: Reciprocating/Turning (switching type)
Shaking Speed: 10 to 180 rpm
rotation speed Variable Type: Variable with knob
Shaker Block Dimensions: 150 x 150 mm
Operating Ambient Temperature: 5 to 50 ° C
Amplitude: 20 mm
Shaking Angle: –
Allowable Load: 1 kg (Holder Excluded)
Motor: DC Brushless Motor (10 W)
material : Main Unit/SPCC top board/SUS430
power supply: DC24V 1A (Dedicated AC Adapter Included/AC100 to 240 V 50/60 Hz) Approx. 1.5 m
Weight: about 2.4 kg
*1. Protrusions, Excluding Holder
*Holder and rack are not included.
*Holders and racks can be custom-made. Please contact us.
Package size：280×215×145 mm　3 kg　 [About Package size]

Video Link: https://youtu.be/H3BQpvIO0Gg

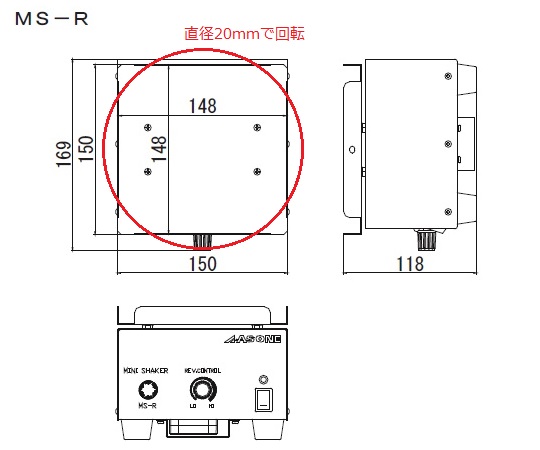

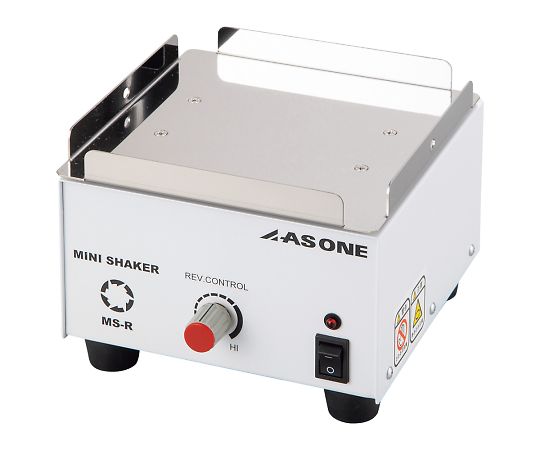

MS-R

Order No: 4-1724-02
Specifications
Shaking Method: High-Speed Swirl
main unit size * 1 (mm) : 150 x 169 x 118
Shaking Method: High-Speed Swirl
Shaking Speed: 10 to 340 rpm
rotation speed Variable Type: Variable with knob
Shaker Block Dimensions: 150 x 150 mm
Operating Ambient Temperature: 5 to 50 ° C
Amplitude: 10 mm
Shaking Angle: –
Allowable Load: 1 kg (Holder Excluded)
Motor: DC Brushless Motor (10 W)
material : Main Unit/SPCC top board/SUS430
power supply: DC24V 1A (Dedicated AC Adapter Included/AC100 to 240 V 50/60 Hz) Approx. 1.5 m
Weight: about 2.4 kg
*1. Protrusions, Excluding Holder
*Holder and rack are not included.
*Holders and racks can be custom-made. Please contact us.
Package size：280×215×140 mm　3 kg　 [About Package size]
MS-L

Order No: 4-1724-03
Specifications
Shaking Method: Reciprocating
main unit size * 1 (mm) : 150 x 169 x 118
Shaking Method: Reciprocating
Shaking Speed: 10 to 180 rpm
rotation speed Variable Type: Variable with knob
Shaker Block Dimensions: 150 x 150 mm
Operating Ambient Temperature: 5 to 50 ° C
Amplitude: 20 mm
Shaking Angle: –
Allowable Load: 1 kg (Holder Excluded)
Motor: DC Brushless Motor (10 W)
material : Main Unit/SPCC top board/SUS430
power supply: DC24V 1A (Dedicated AC Adapter Included/AC100 to 240 V 50/60 Hz) Approx. 1.5 m
Weight: about 2.1 kg
*1. Protrusions, Excluding Holder
*Holder and rack are not included.
*Holders and racks can be custom-made. Please contact us.
Package size：280×220×150 mm　2.5 kg　 [About Package size]
MS-S

Order No: 4-1724-04
Specifications
Shaking Method: Seesaw
main unit size * 1 (mm) : 150 x 169 x 112
Shaking Method: Seesaw
Shaking Speed: 10 to 120 rpm
rotation speed Variable Type: Variable with knob
Shaker Block Dimensions: 150 x 150 mm
Operating Ambient Temperature: 5 to 50 ° C
Amplitude: –
Shaking Angle: ± 5 °
Allowable Load: 1 kg (Holder Excluded)
Motor: DC Brushless Motor (10 W)
material : Main Unit/SPCC top board/SUS430
power supply: DC24V 1A (Dedicated AC Adapter Included/AC100 to 240 V 50/60 Hz) Approx. 1.5 m
Weight: about 1.8 kg
*1. Protrusions, Excluding Holder
*Holder and rack are not included.
*Holders and racks can be custom-made. Please contact us.
Package size：275×215×145 mm　2.5 kg　 [About Package size]
MS-FS

Order No: 4-1724-11
Specifications
Optional Full Set
Optional set of 7 types of 5TR/1FH/23 FH/5FH/SNH/TH/FLH.
Package size：520×455×140 mm　5 kg　
MS-5TR

Order No: 4-1724-12
Specifications
Rack for 5 mL Tube
16 pieces Kan
Package size：275×210×120 mm　1 kg　
Video Link: https://youtu.be/oeUdzPzq4uI
MS-1FH

Order No: 4-1724-13
Specifications

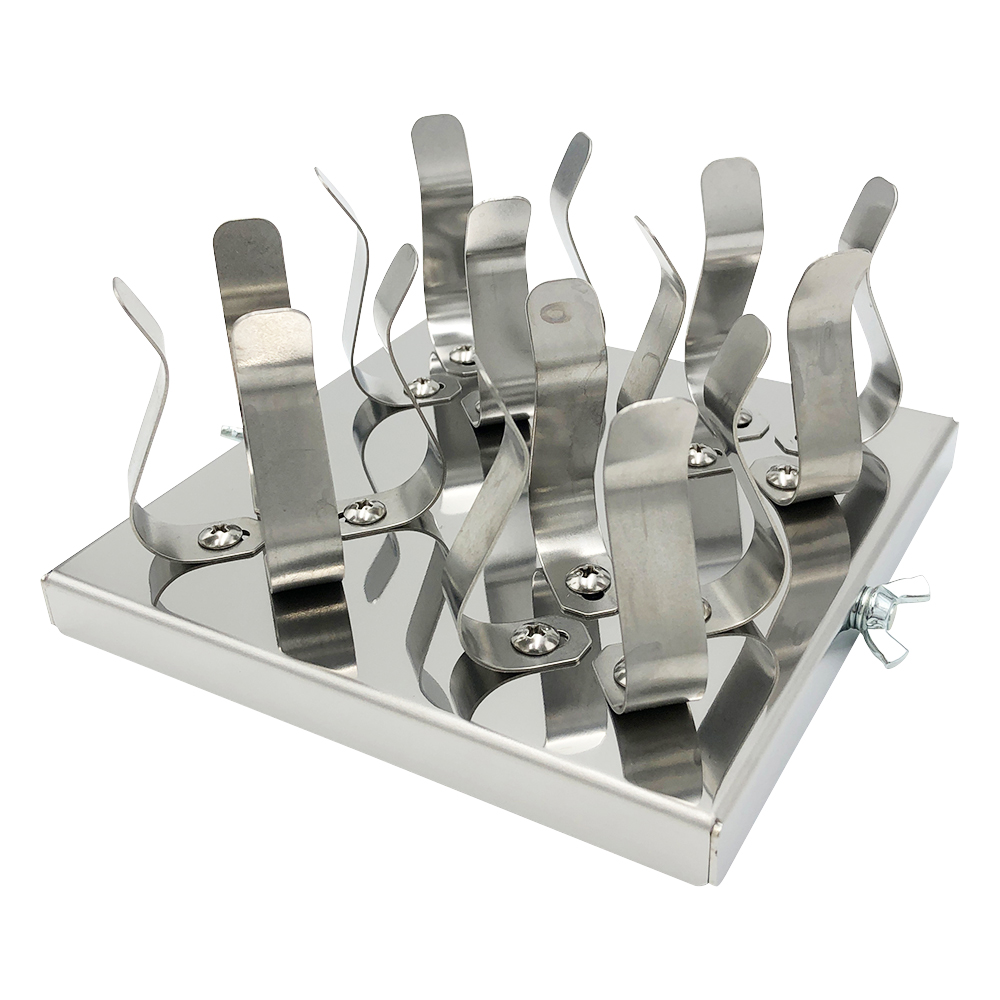

Flask Holder for 100 mL
4 pieces Kan
Package size：5×280×150 mm　1 kg
MS-23FH

Order No: 4-1724-14
Specifications
Flask Holder for 200, 300 mL
1 piece Kan
Package size：280×210×150 mm　1 kg
Video Link: https://youtu.be/WyHYFEfUuoY
MS-5FH

Order No: 4-1724-15
Specifications

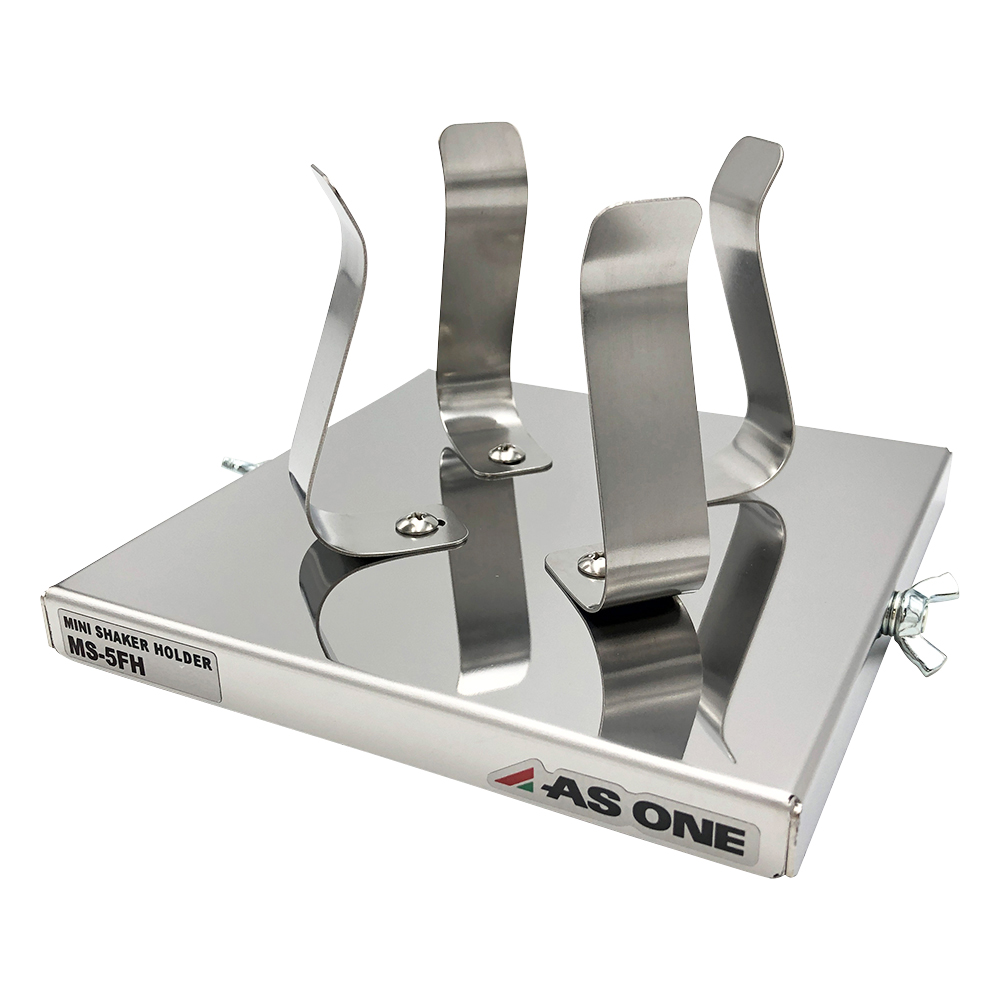

Flask Holder for 500 mL
1 piece Kan
Package size：280×215×145 mm　1 kg
MS-SNH

Order No: 4-1724-16
Specifications
Spring net holder
36 pieces Kan
Package size：280×210×145 mm　1.5 kg
Video Link: https://youtu.be/bldnmSbTzIQ
MS-TH

Order No: 4-1724-17
Specifications
50 mL centrifuge tube Holder
4 pieces Kan
Package size：280×215×145 mm　1 kg
MS-FLH

Order No: 4-1724-18
Specifications

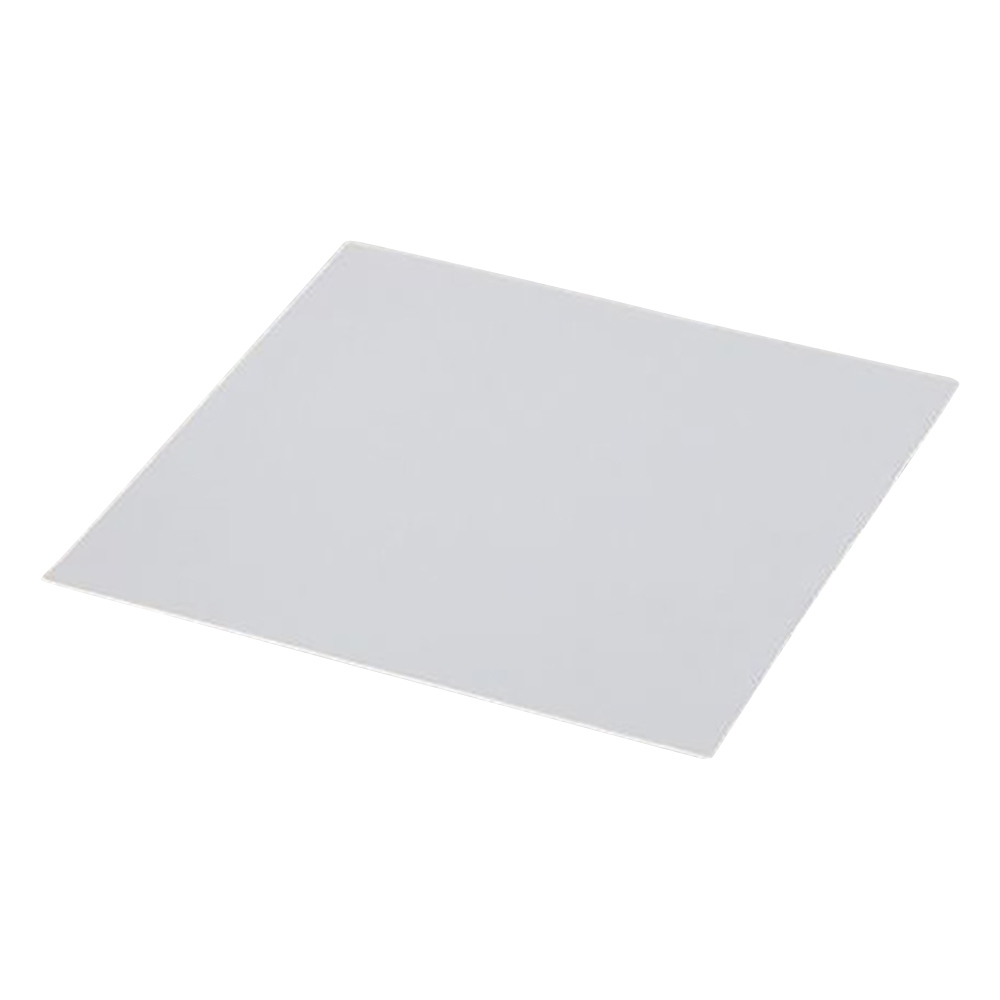

Flat holder
silicon sheet
Package size：280×215×145 mm　50 g
