| MODEL | K12L / K20L / K24L / K40L |
|---|---|
| Width (in cm) | 42.00 / 42.00 / 48.00 / 48.00 |
| Depth (in cm) | 51.00 |
| Height (in cm) | 76.50 |
| Weight (in kg) | 30.00 / 34.00 / 30.00 / 34.00 |
| Power consumption (in W) | 1500 / 2200 / 1500 / 2200 |
| Current consumption (in A) | 8 / 10 / 8 / 10 |
| Sample positions | 12 / 20 / 24 / 40 |
| Temperature range max. | 450°C |
| Digestion vessel size | 250mL / 250mL / 100mL / 100mL |

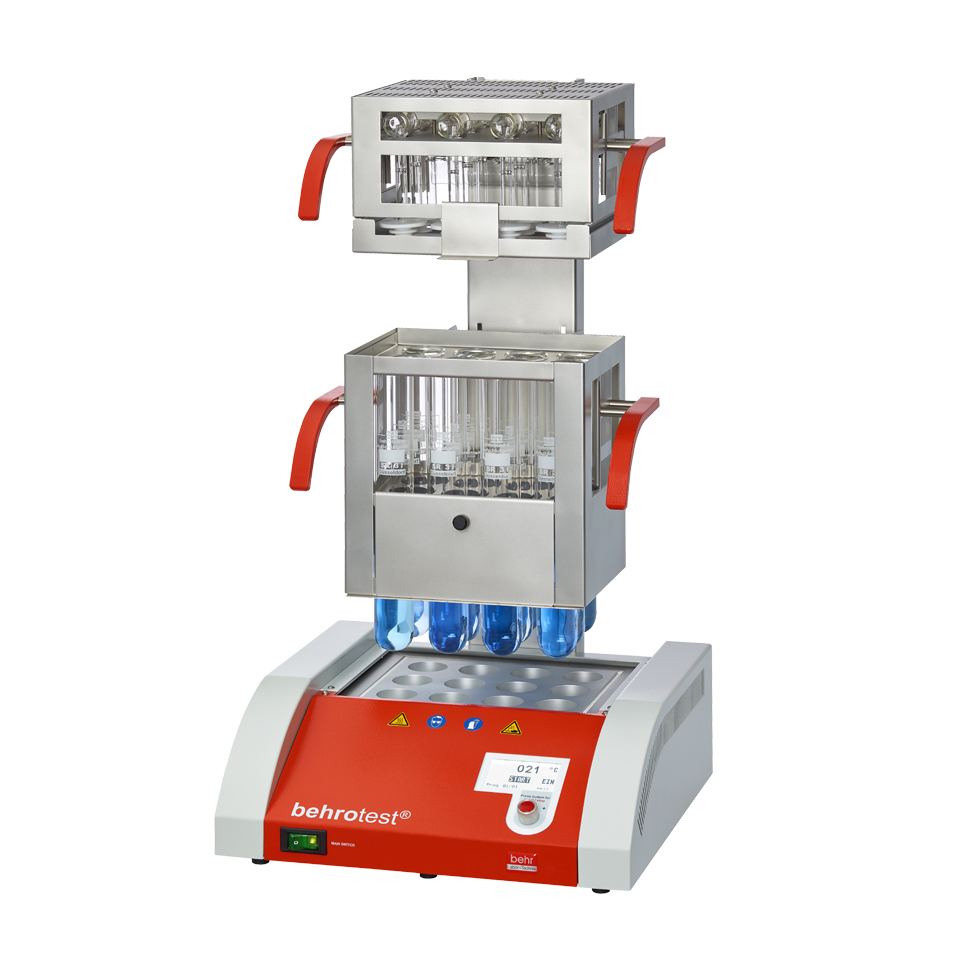

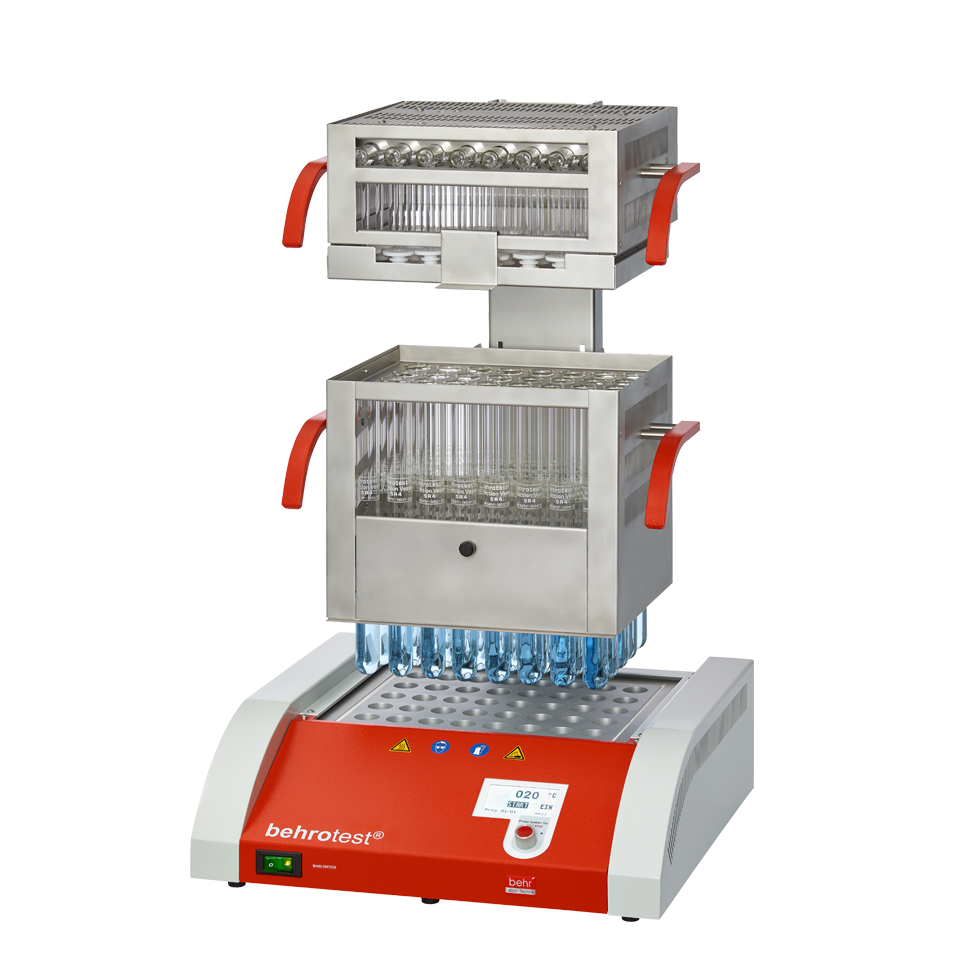

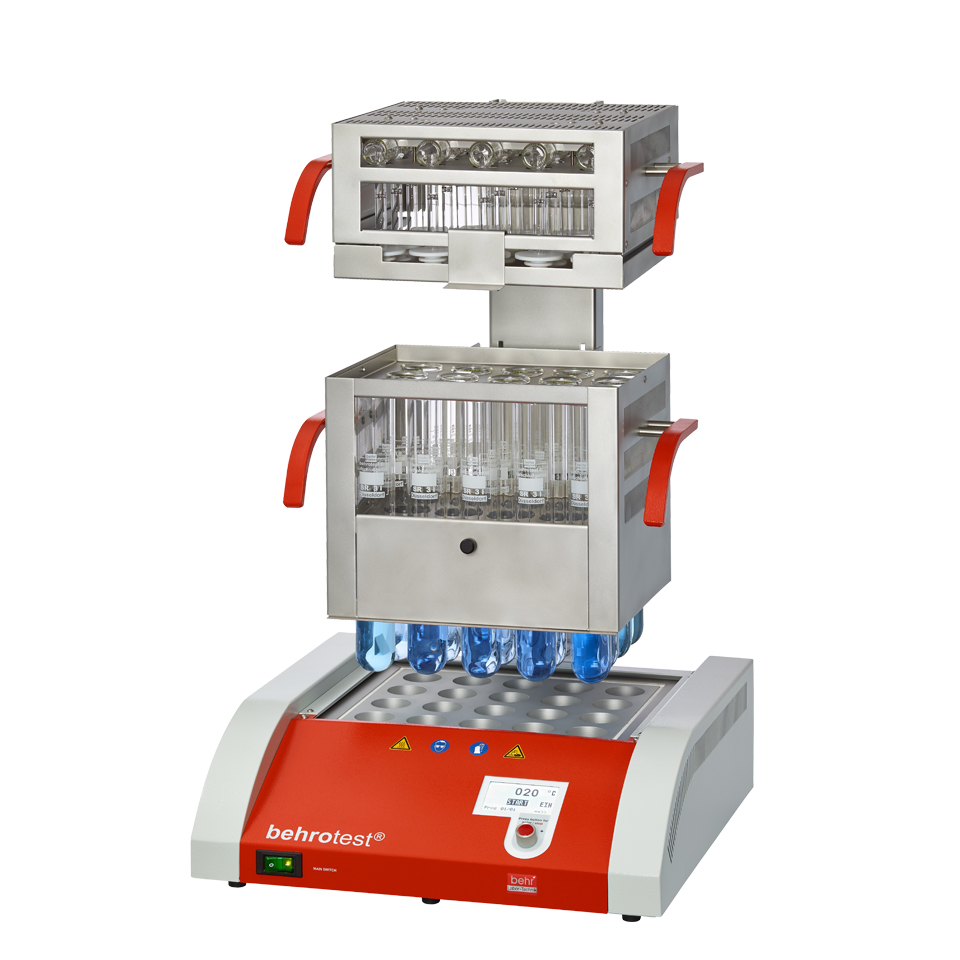

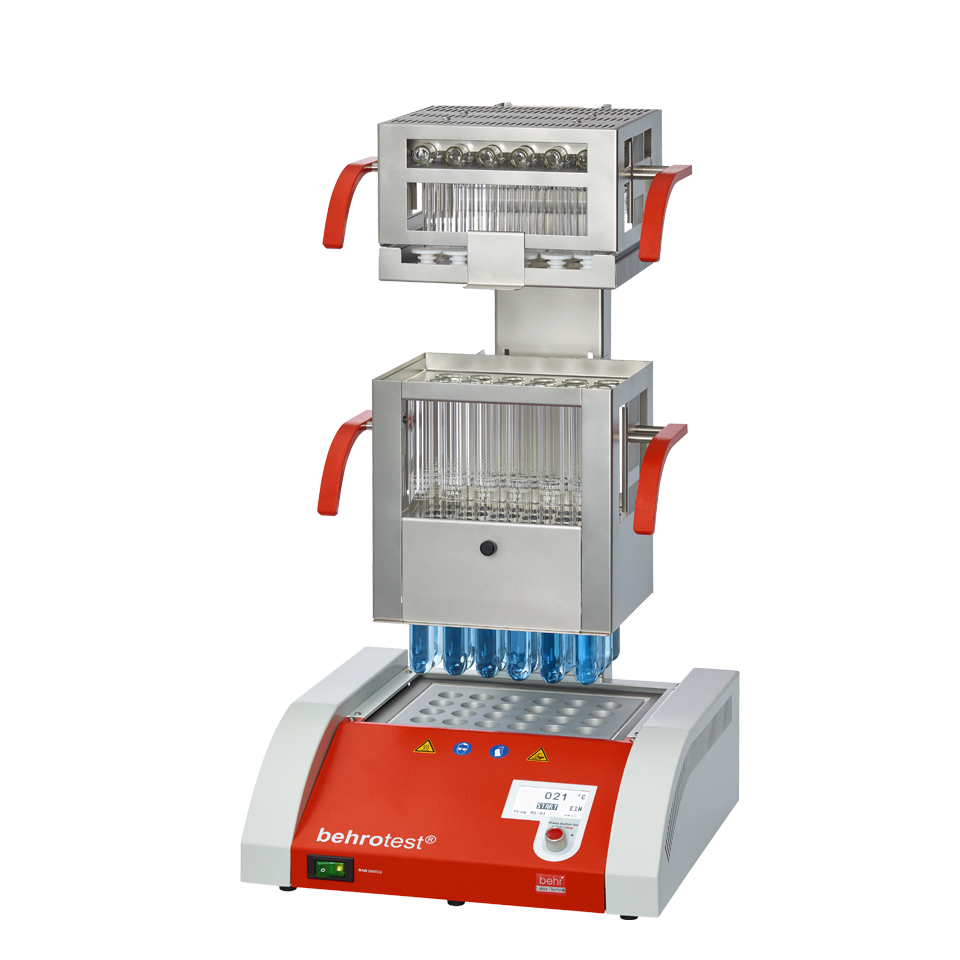

Behr-Labor behrotest® Kjeldahl Block Digestion System, L series, with 12 / 20 / 24 / 40 sample slots, Fully Automatic Lift
behr series L Kjeldahl block digestion systems are equipped with a fully automatic lift

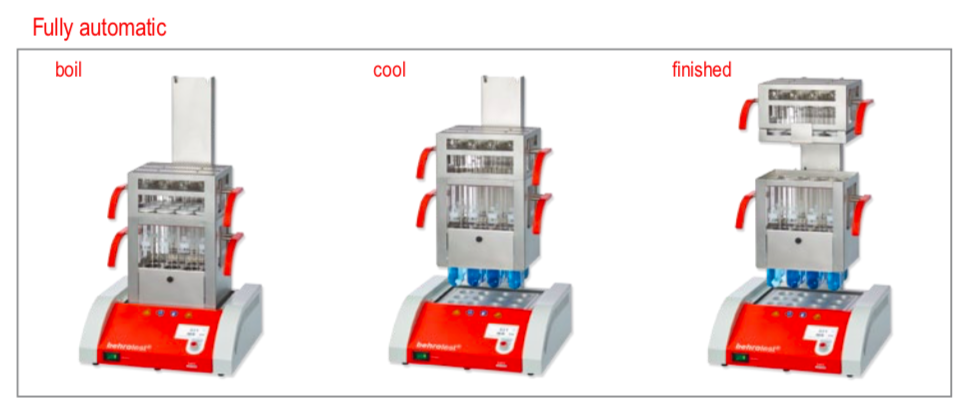

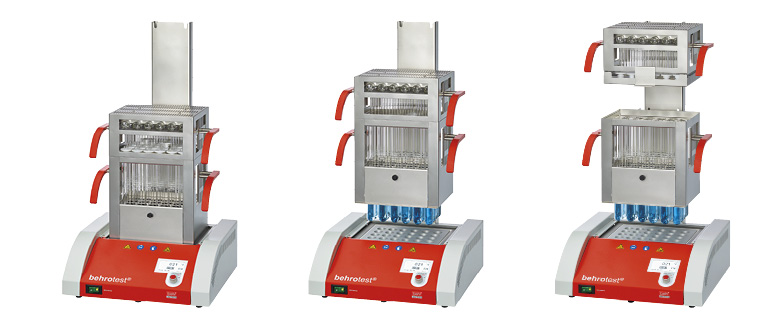

The user therefore does not need to handle heavy sample units and hot chemicals. The software regulates the sample lift as well as the behrosog 3, thus enabling nearly automatic digestion. At the end of the digestion, the lift moves the entire unit with the rack and extraction hood up. Following a freely programmable cooling / extraction time, he lifts the extraction hood off and moves it into the end position.
- Temperature profiles and starting time point of digestion are freely programmable
- behr one-button operation for extremely easy and quick programming
- USB interface
- The included Windows software lets the user transfer application-specific time/temperature profiles via the interface bidirectionally between one or more devices (K 12 L, K 20 L, K 24 L and K 40 L) and a PC
- The progress of the digestion can be observed via the removable viewing door on the insert rack
behrotest® standard digestion vessels have standard sizes. This means that they fit in digestion and distillation devices of most manufacturers. It also means that standard digestion vessels of most manufacturers also fit in our behrotest® steam distillation units.
