| MODEL | InKjel 450P / InKjel 475P / InKjel 625P / InKjel 1210P / InKjel 1225P |
|---|---|
| Width (in cm) | 54.00 |
| Depth (in cm) | 44.00 |
| Height (in cm) | 75.00 |
| Weight (in kg) | 20.00 |
| Power consumption (in W) | 1500 |
| Current consumption (in A) | 8 |
| Sample positions | 4 / 4 / 6 / 12 / 12 |
| Digestion vessel size | 500mL / 750mL / 250mL / 100mL / 250mL |
| Energy setting range | 0 – 100 %, infinitely variable, manually adjustable |
| Time setting range | 0 – 199 min, in steps of 1 min. |
| Programs | 25 |

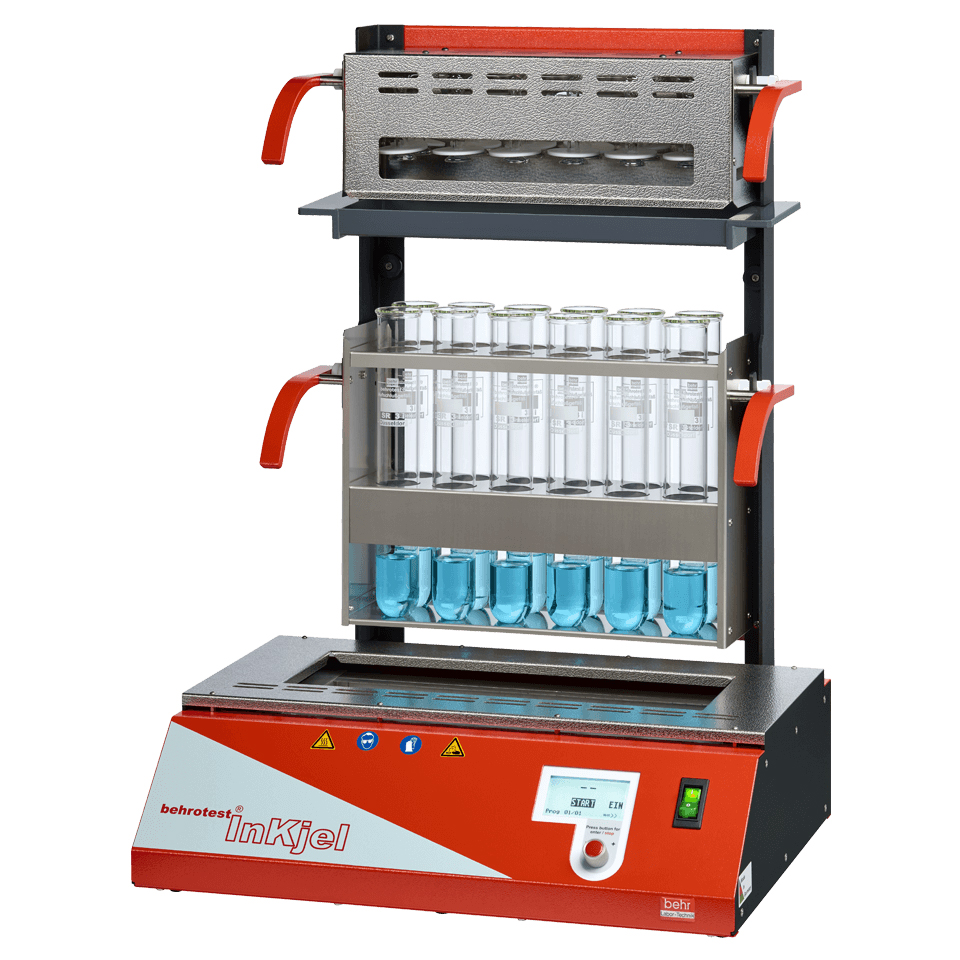

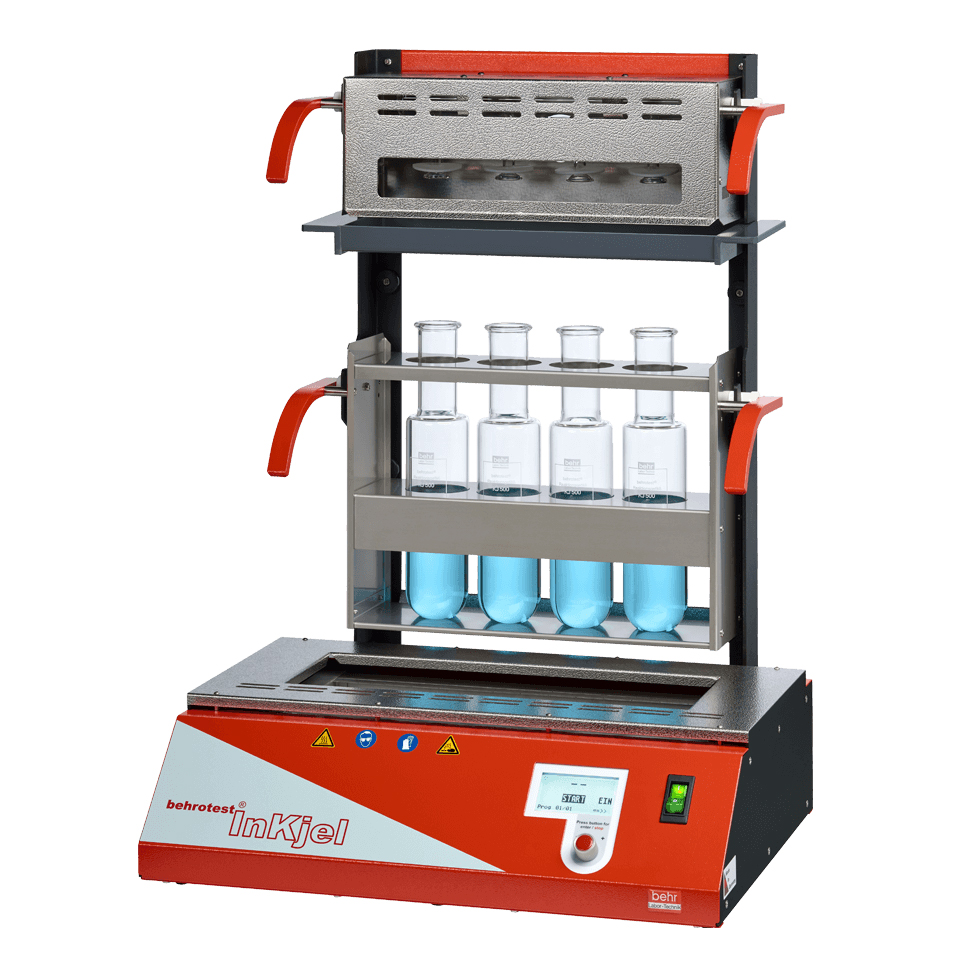

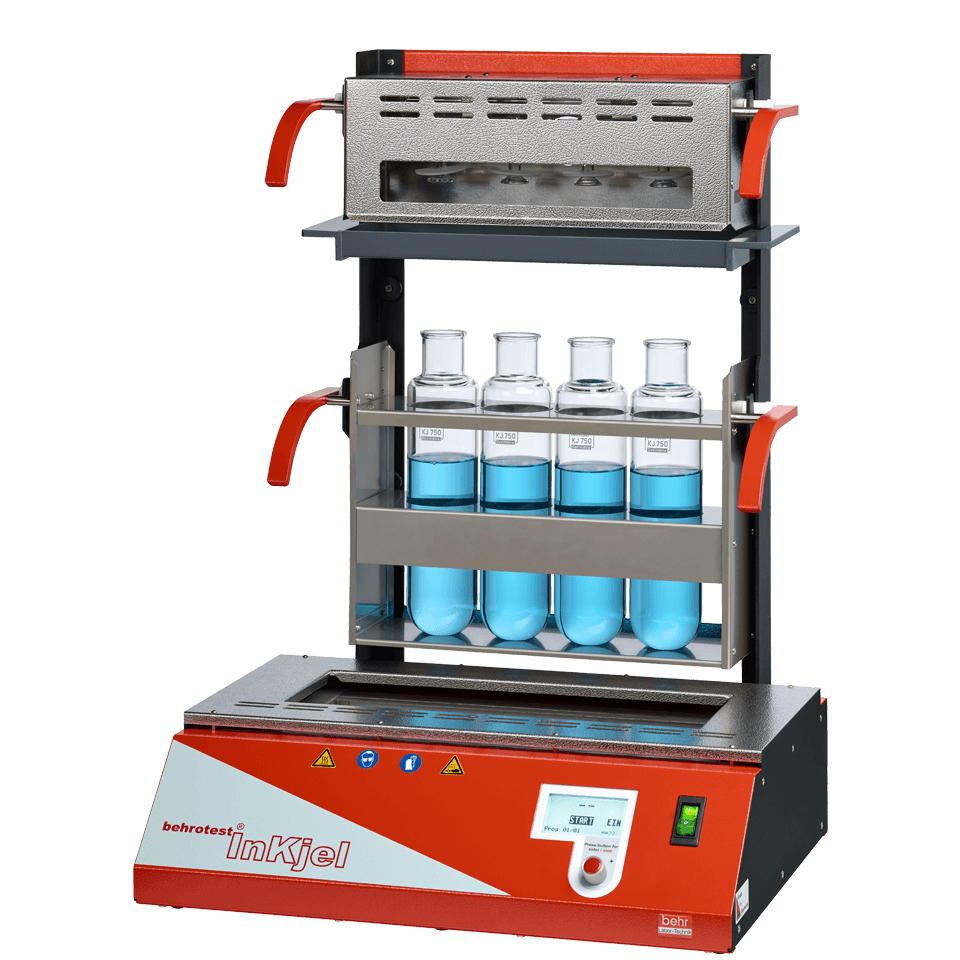

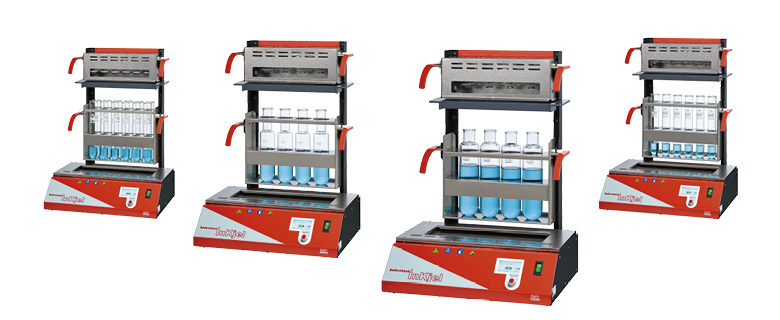

Behr-Labor behrotest® Kjeldahl Rapid Infrared Digestion System, with programmable energy control, InKjel P-series, with 4 / 6 / 12 sample positions
Infrared rapid digestion devices for nitrogen determination according to Kjeldahl
The digestion units of the model series behrotest® InKjel are equipped with a high-performance infrared heater. Quality and position of the behr infrared heater guarantee the user identical heating phases and digestion temperatures at all sample positions.
This also applies to the double-row arrangement for racks for 12 samples. The glass digestion vessels are suspended in the rack and are not deposited at the bottom of the digestion unit. Therefore the digestion units are less susceptible to breakage than in an aluminum heating block.
This makes the behrotest® InKjel the ideal digestion system for nitrogen determination according to Kjeldahl and other high-temperature digestions. In the Kjeldahl digestions, the temperature is adjusted through the boiling point of sulfuric acid.
- Direct heating of the samples by the infrared heater prevents the endlessly long heating times required using conventional heating block systems
- High-quality quartz heaters instead of the common steel-tube heater ensure particularly homogeneous heating at all sample positions.
- behr one-button operation for extremely easy and quick programming (InKjel P)
- Menu navigation in language of the country (InKjel P)
- Complete system with multi-level console, fume extraction unit, sample rack and glass digestion vessels.
- Rapid sample heating by means of direct heating via the infrared heater.
- Quartz infrared heaters reach a temperature of 830°C in 1 min.
- Various application possibilities: Rack for reaction vessels with 250 ml, 500 ml and 750 ml.
- With 500 ml and 750 ml vessels also suitable for nitrogen determination in water analysis.
- Easy conversion for various vessel sizes through the exchange of rack and fume extraction unit.
- Quick and problem-free digestion also for difficult samples: 25 freely configurable programs for block temperature and digestion time
