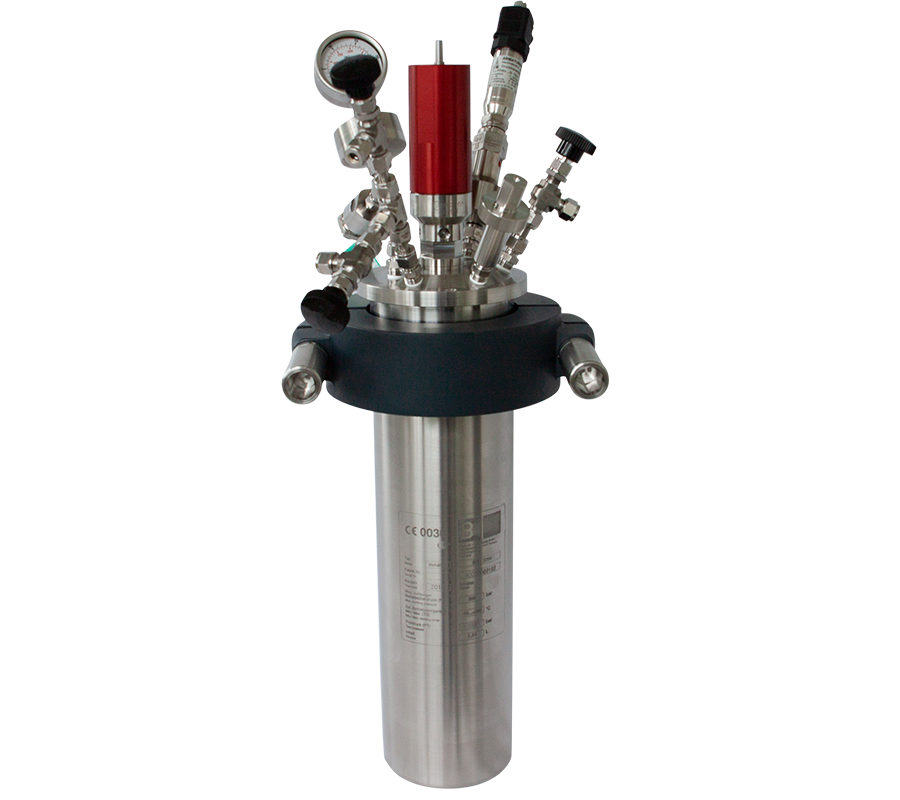

Berghof High Pressure Reactor (BR-2000)

With heating or cooling system, with or without stirring: the BR-1000, BR-1500 and BR-2000 high-pressure reactors fulfil the most demanding requirements. Volumes up to 2,230 ml offer a large variety of possible uses within production and research, e.g. for synthesis and catalysts researches. Intelligent instrument concepts form the basis for an easy handling.

The scope of delivery for the high-pressure reactors BR-1000, BR-1500 and BR-2000 includes rupture disc, dip tube, valve and a tool for a proper opening and closing of the reactors. According to customer requests, the reactors can be manufactured with stainless steel 316 Ti (1.4571) or hatelloy C-22 (2.4602). Pressure measurement is made analog and/or digital.

Due to an extensive range of accessories, individual reactor configurations can be made easily. Examples of accessories are:

  • Different heating methods (integrated or via additional instrument)
  • Various stirring concepts
  • Sample holders
  • A number of control units

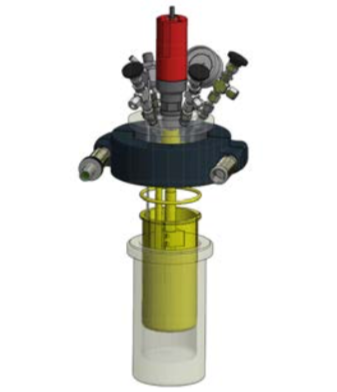

The BR-1000, BR-1500 and BR-2000 reactors can be used for volumes up to 2,230 ml and convince by an easy handling, which represents a high level of user friendliness. Amongst others, this can be traced back to the opening and closing tool. All reactor vessels can be equipped with PTFE inserts.

The reactors are used for different types of synthesis, material tests and catalysts researches. Depending on the users’ needs, two of the six ports (8 mm tube connection) can be used individually. When adding t-connections, the number of free ports can be enlarged.

Material

Stainless Steel 316Ti (1.4571) or Hastelloy C-22 (2.4602)

Temperature max.

300° C

Pressure max.

200 bar

Reactor vessel Volume

approx. 2,230 ml

Reactor vessel Inner Diameter

90 mm

Reactor Vessel Inner Height

352 mm

Reactor Vessel weight

approx. 16 kg

Volume

approx. 1,880 ml
TFM™-PTFE Insert

Inner diameter

84 mm

Inner height

340 mm

Standard armatures

Rupture Disc, Dip Tube, Valve

Pressure Measurement

analog and/or digital

Ports (total)

6

Type of connection

8 mm Tube Connection

Heating Systems (optional)

Electrical (Heating Jacket)
Via Fluid (Double Jacket)
Via Fluid (Heating Coil)

Stirring

RV-100 (Magnetic Drive)
