| Volume | 60mL |
|---|---|
| Working Pressure | 40bar |
| Operating Temperature | 230 °C |
| Rotor | 10 vessels |
| Loading | From the front |
| Pressure Monitoring | – |
| Pressure control | Excess pressure protection by rupture disc |
| Vessel Temperature Measurement | – |
| Sample Temperature Measurement | Patented DIRC thermometer |
| Vessel material | Isostatically-moulded TFM-PTFE |
| Magnetron power | 1,000 W |
| Controller | Colored, multi-language touchscreen |
| Interfaces | USB, RS-232 |
| Dimensions | Basic instrument: 510 x 470 x 330mm (W x D x H) |
| Weight | Basic instrument: Approx. 22kg |
| Oven chamber | Approx. 32L |
| Range of applications | For routine digestion tasks, ideal for education and universities |

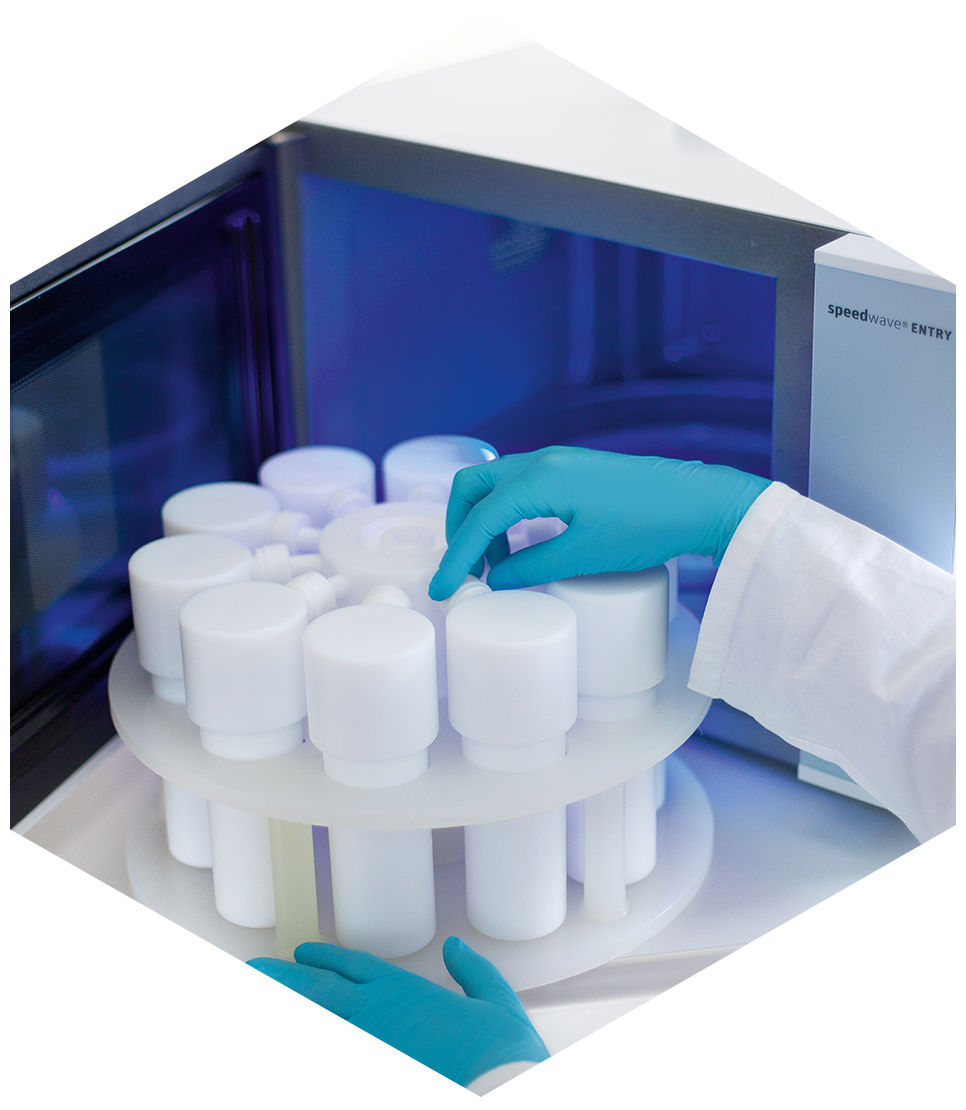

Berghof speedwave ENTRY, Microwave Digestion System (DAP-60K)
Focused on the essential
The speedwave ENTRY is especially strong in application areas where cost efficiency is essential. It is therefore often used in routine analytics for standardised digestion tasks in research facilities, education and at universities.
The speedwave ENTRY allows cost-efficiency in routine analysis. Nevertheless, the microwave system consists of high-quality components and innovative technology.
The PTFE vessels show high chemical resistance to all mineral acids as well as high mechanical durability. Furthermore, the minimal surface porosity of the vessels reduces the risk of cross contamination to a minimum.
In addition, the speedwave ENTRY features the optical sensor technology for contactless real-time recording of the sample temperature.
Food & feed
Digestion of beverages, animal products, milk products, fruit, coffee, beer, cereals, nutrients and coconut oil
Pharma & cosmetics
Digestion of blood, hair & bone
Environment & geology
Digestion of filter/emissions, sediments, soil, sludge, waste water/water, wood
Technology
Digestion of PET, polyester, bronze
