| Level of BSC | Biosafety Class II, Type A2 |
|---|---|
| Airflow Mode | 70% cycle, 30% exhaust |
| Average Airflow Velocity (downflow) | 0.35 m/s |
| Average Airflow Velocity (inflow) | 0.53 m/s |
| Personnel Protection Test | KI-Discus containment and microbiological tested |
| Product Protection Test | ≤ 5CFU |
| Cross Contamination Test | ≤ 2 CFU |
| Filter Type | ULPA |
| Filter Efficiency | Filters provide 99.9995% efficiency for particle size greater than 0.12 microns |
| Airflow Volume (downflow) | ~ 718 m3/hr |
| Airflow Volume (inflow) | ~ 363 m3/hr |
| Fluorescent Light Intensity | > 1000 Lux |
| UV Lamp | Included, UVC |
| Sound Emission | ≤ 60 dBA |
| Maximum Power | 1600 Watt |
| Power | Single Phase, 220-240 V, 50/60 Hz |
| External Dimensions with Base Stand (WxDxH) | 1040 x 790 x 2130 mm |
| Internal Work Area Dimensions (WxDxH) | 950 x 575 x 625 mm |

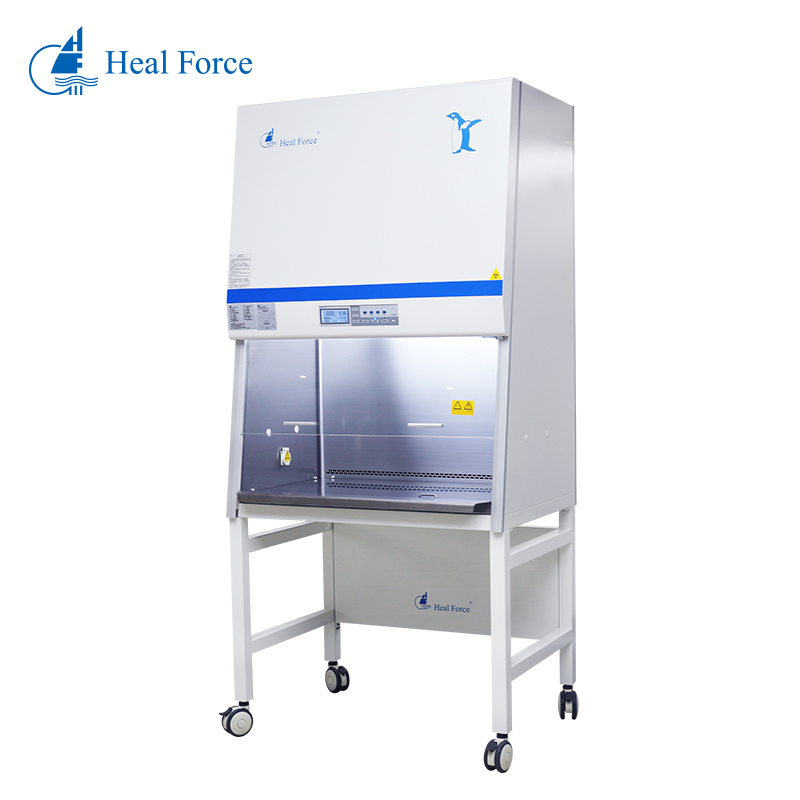

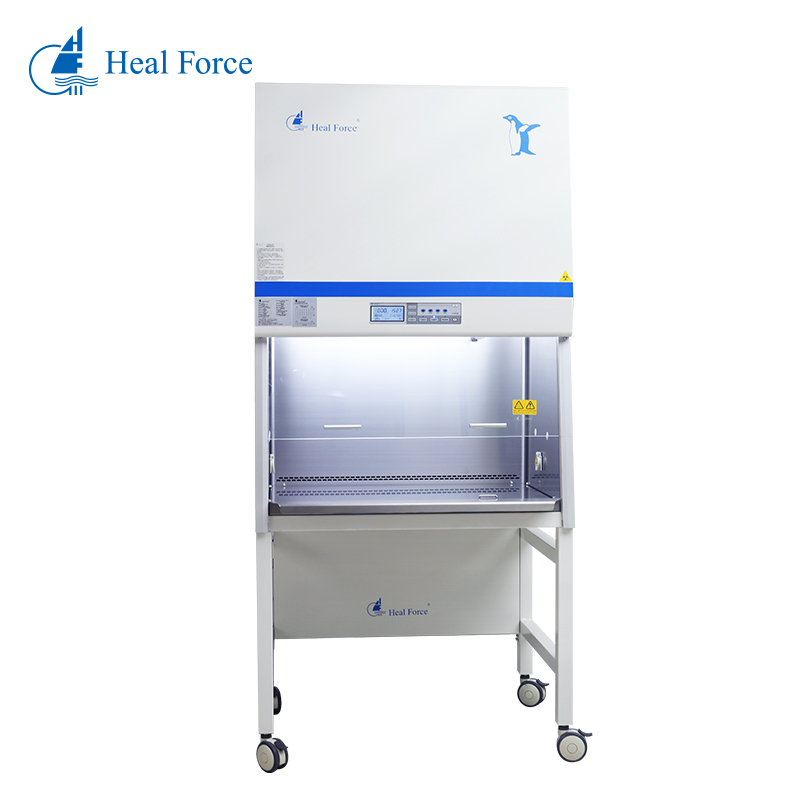

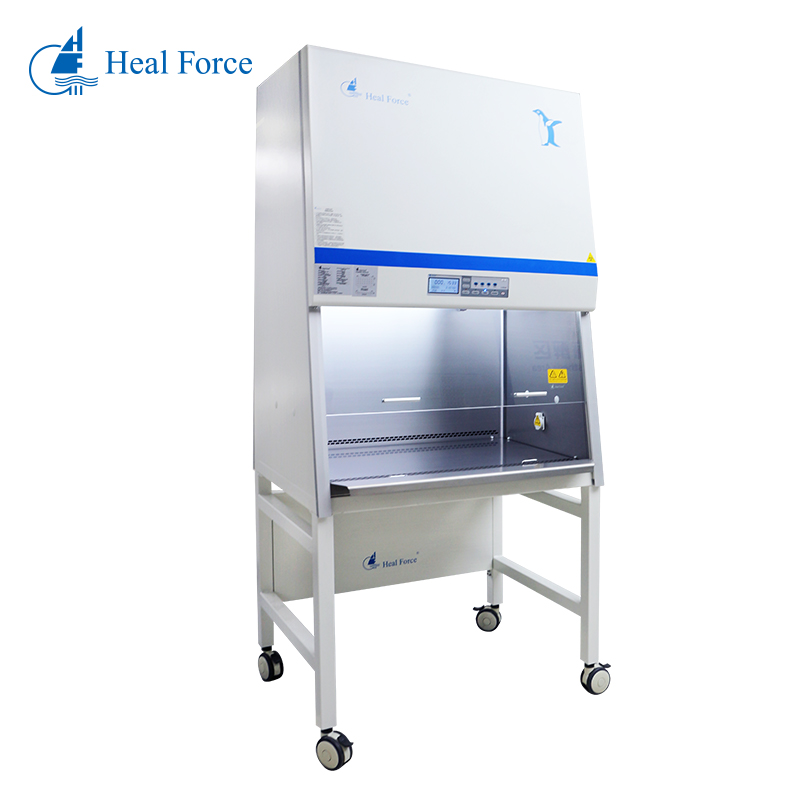

Biological Safety Cabinet, Class II, 3 ft/900 mm
Heal Force HFsafe LC Biosafety Cabinets specialises in quality and design that comes from a heritage of over 25 years’ experience. HFsafe LC Series are independently tested and certified to NSF 49 (American Standard), EN12469 (European Standard), CFDA & YY0569-2011 standard. Heal Force Biosfety cabinets Class II, type A2 make ideal investment for a wide range of applications including work with infectious agents that require biosafety level 1 & 2 containment.
Class II Biological Safety Cabinet, model HFsafe-900LC comes with a internal length of 950 mm/3 ft working area.
Features
– Large LCD screen : durable LCD is mounted at eye level for at-a-glance viewing of airflow, working area temperature, total running time, operating parameters, and alarm messages in real-time.
– Filter Life Indicator : Patented filter life indicator is designed to measure filter life span according to actual condition of membrane. When the filter does not work properly, it will give you visual and acoustic alarm. This is to ensure user is always been protected.
– ULPA Filter : Utilise the silicate glass fiber ULPA filter from World famous brand, providing more than 99.9995% filtration efficiency.
– Ultraviolet Lamp with timing function : This function can set the ON and OFF time of the ultraviolet lamp.
– Equipped with high quality self induced blower, better power saving, longer life span and higher stability. When the air flow pressure of filter drops by 50%, the exhaust air volume of the blower does not fall by more than 10% with automatic compensation function.
– Airflow Sensor : Two independent sensors (down flow/exhaust air flow) mean double security, showing the air flow speed in real time.
– Energy Saving Operation Mode : Energy saving function with low speed operation when the glass door is closed, automatic adjusted
– Lower Cabinet Height : Total height is 2130/2200 mm, easily accommodated in a laboratory with lower ceiling height.
– Activated Carbon Post Filters : Real-time filter life display with a visual and audio reminder
– Every HFsafe model manufactured by Heal Force is individually tested, documented by serial number and validated with international compliance methods : KI Discuss Personal Protection Test, Airflow Speed Monitoring, and Filter Integrity Test
