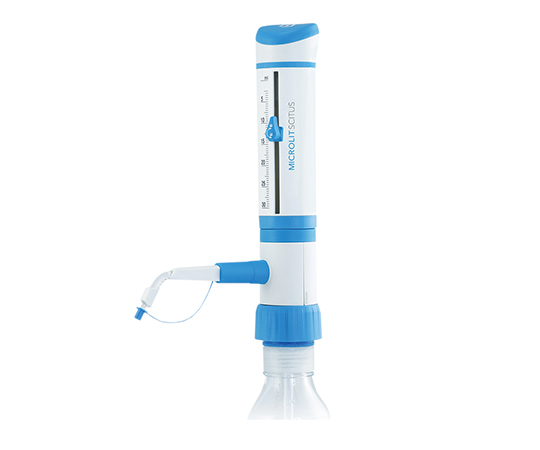

Bottle Dispenser

SKU: SCI10/30/60/100

Features

● The entire unit can be autoclaved (at 121°C and 100 kPa for 15 to 20 minutes).

● Various adapters are included to adapt to a variety of screw-necked bottles.

● The dispensing direction can be freely adjusted over 360 degrees.

● No springs are used inside the wet interior.

Specifications

●  Material: Piston (PTFE), O-ring (ETP), housing (PP with 10% glass), cylinder (borosilicate glass), suction and discharge tube (FEP), and nozzle cap (PP)

●  Precision: ±0.6%

● Reproducibility: ±0.2%

●  Inner Opening Diameter of Main Unit: 30 mm (GL30)

●  Bottle Adapter (sold together): 28 mm (GL28), 32 mm (GL32), 38 mm (GL38), 40 mm (GL40), and 45 mm (GL45)

Model

Descriptions
SCI-10

Order No : 2-9673-11
Dispensing capacity (ml) : 1.0 – 10
Minimum scale (ml) : 0.2
SCI-30

Order No : 2-9673-12
Dispensing capacity (ml) : 2.5 – 30
Minimum scale (ml) : 0.5
SCI-60

Order No : 2-9673-13
Dispensing capacity (ml) : 5.0 – 60
Minimum scale (ml) : 1.0
SCI-100

Order No : 2-9673-14
Dispensing capacity (ml) : 10 – 100
Minimum scale (ml) : 2.0
