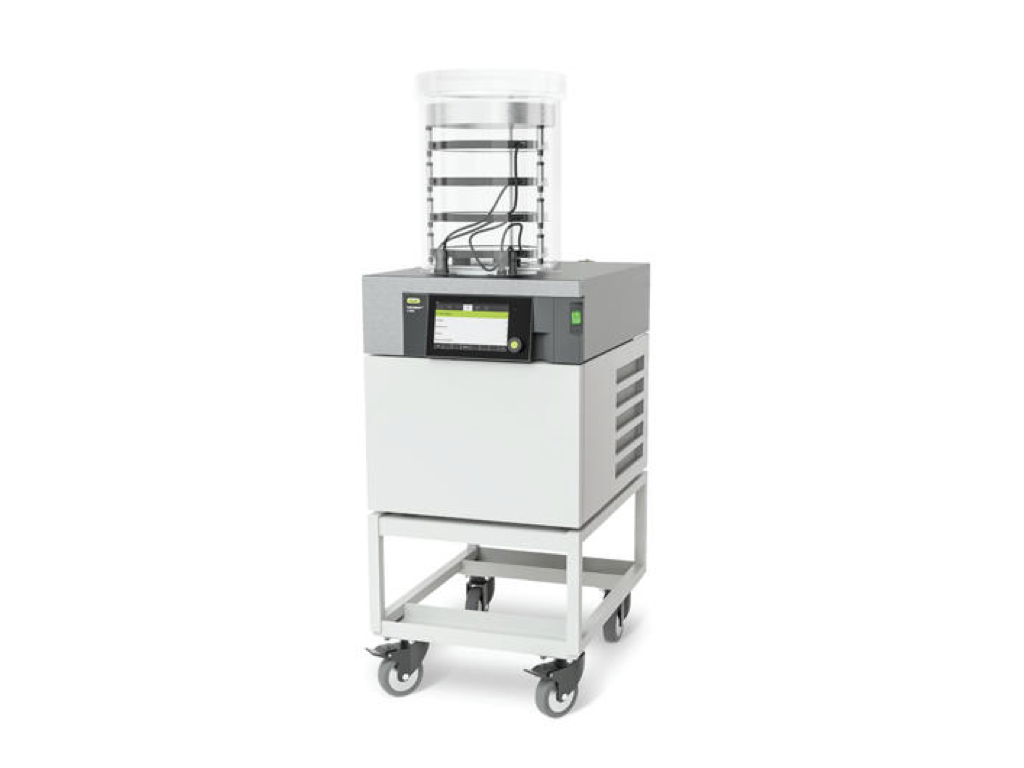

Buchi Lyovapor™ L-200

SKU: L-200

The first Freeze Dryer with Infinite-Control™

The compact Lyovapor™ L-200 offers high-quality Freeze Drying (-55 °C, 6 kg) with a high level of automation. Infinite-Control™ includes easy method creation, method running, data logging, chart recording in real-time and interruption if needed from anywhere at anytime.

  • Remote monitoring on mobile devices
  • Stay informed with push notifications
  • Save your precious product by the sample protective state
  • User-friendly method handling and operation

End point determination

Temperature difference can be used together with optional product temperature sensors to determine the end point.

Sample protective state

If the sample temperature rises above the set collapse temperature or the pressure is outside the safety range then the sample pretective state is activated. This reduces the pressure and stops the shelf heating.

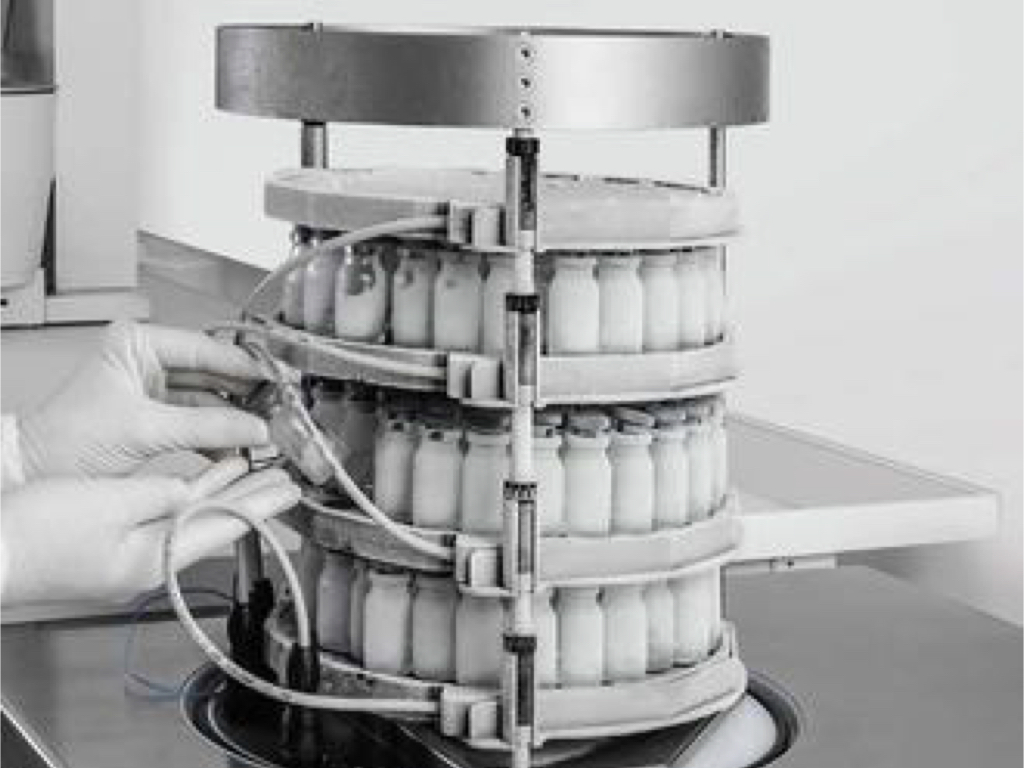

Flexible drying chambers

  • Adjustable shelf distance according to your application needs
  • Possibility to link two manifold racks together

Second Interface

  • An additional Interface can be connected and placed outside the fume hood to control the process outside
  • Upgrade to Interface Pro anytime to enable working within the advanced Lyovapor™ Software

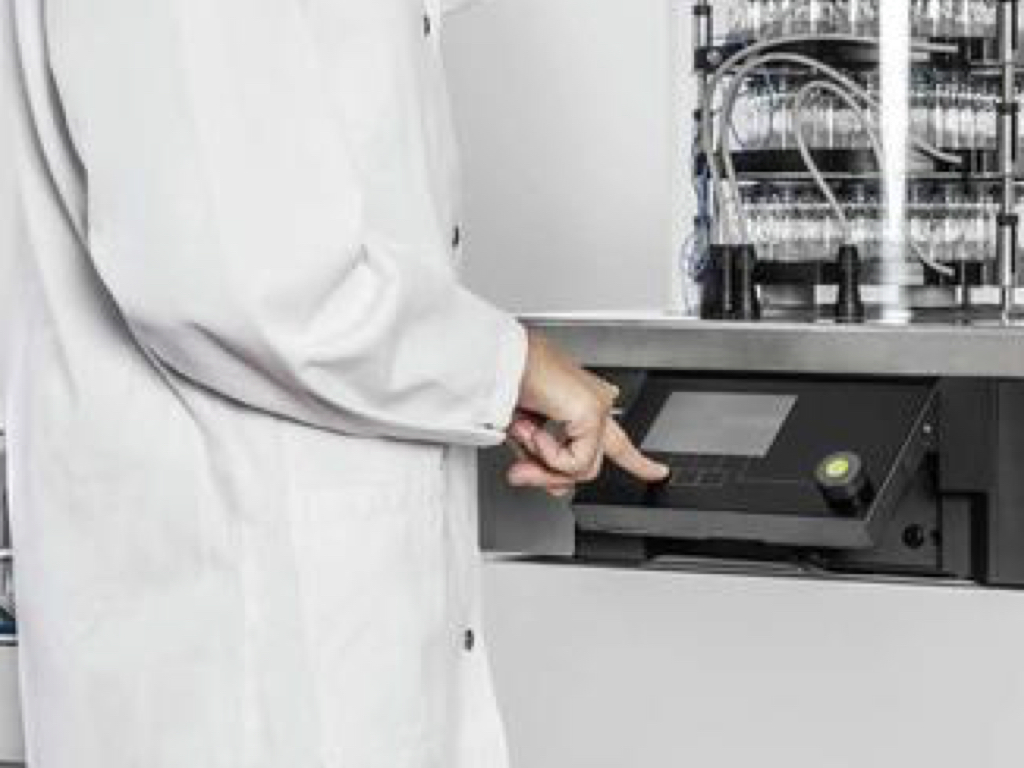

Ergonomic handling

  • Easy reading of process parameters due to the adjustable display
  • Adaptable position of the display at the front or on the side
Dimensions without drying attachments (W x D x H)

460 × 585 × 510 mm


75 kg

Connection voltage

220-240 VAC

Power consumption (rated)

1200 W

Power consumption (maximum)

1800 W

Condensing capacity

≥ 6 kg / 24 h

Lowest condenser temperature

-55 °C

Temperature divergence

± 1.0 °C

Condenser capacity

≤ 6 kg

Condenser surface area

1410 cm2

Number of compressors


Refrigerant quantity

485 g

Drying shelf temperature

up to 60 °C

Inert gas pressure

1.1 – 1.2 bar (max. 2 bar)

Vacuum generation time to 0.1 mbar

Typically ≤ 10 min

Minimum system vacuum

Typically ≤ 30 mTorr

Vacuum control range

50 to 500 mTorr
