| Air Convection | Natural (without fan) |
|---|---|
| Chamber Capacity [l] | 182 Liters |
| Working Capacity [l] | 135 Liters |
| Display | 7" full colour touch screen |
| Temperature Range [°C] | 5°C above ambient temperature … +50°C |
| Temperature Resolution every … [°C] | 0.1 °C |
| Temperature Fluctuation at 37°C [+/-°C] | 0.1 °C |
| Temperature Variation at 37°C [+/-°C] | 0.3 °C |
| Temperature Protection | class 3.1 to DIN 12880 |
| CO2 Range (%) | 0 – 20 |
| CO2 resolution every … [%] | 0.1 |
| CO2 measurement | IR |
| CO2 recovery time after 30 seconds door opening at 5 Vol.-% CO2 [min] | 10 |
| relative humidity range [%] | 90 – 95 |
| Door Type | double (external solid, internal glass) |
| Interior Material | acid-proof stainless steel to DIN 1.4301 |
| Exterior Housing Material | powder coated sheet |

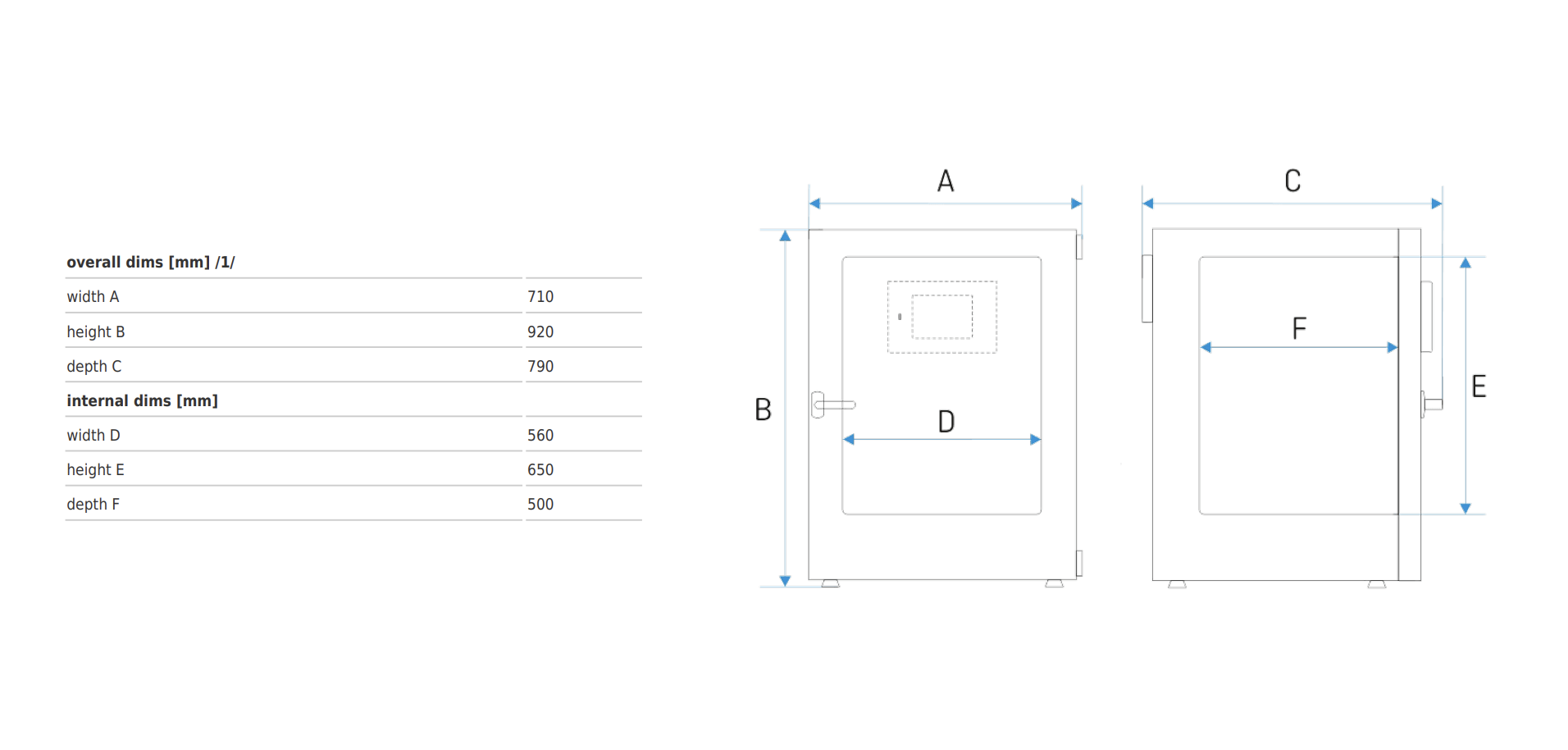

| Overall Dims [mm] | 710 L x 790 D x 920 H |
| Internal Dims [mm] | 560 L x 500 D x 650 H |
| Shelves (standard | max) | 3 / 6 |
| Weight [kg] | 96 kg |
| Power Supply | 230-240V, 50/60Hz |
| Nominal Power (W) | 1700 |

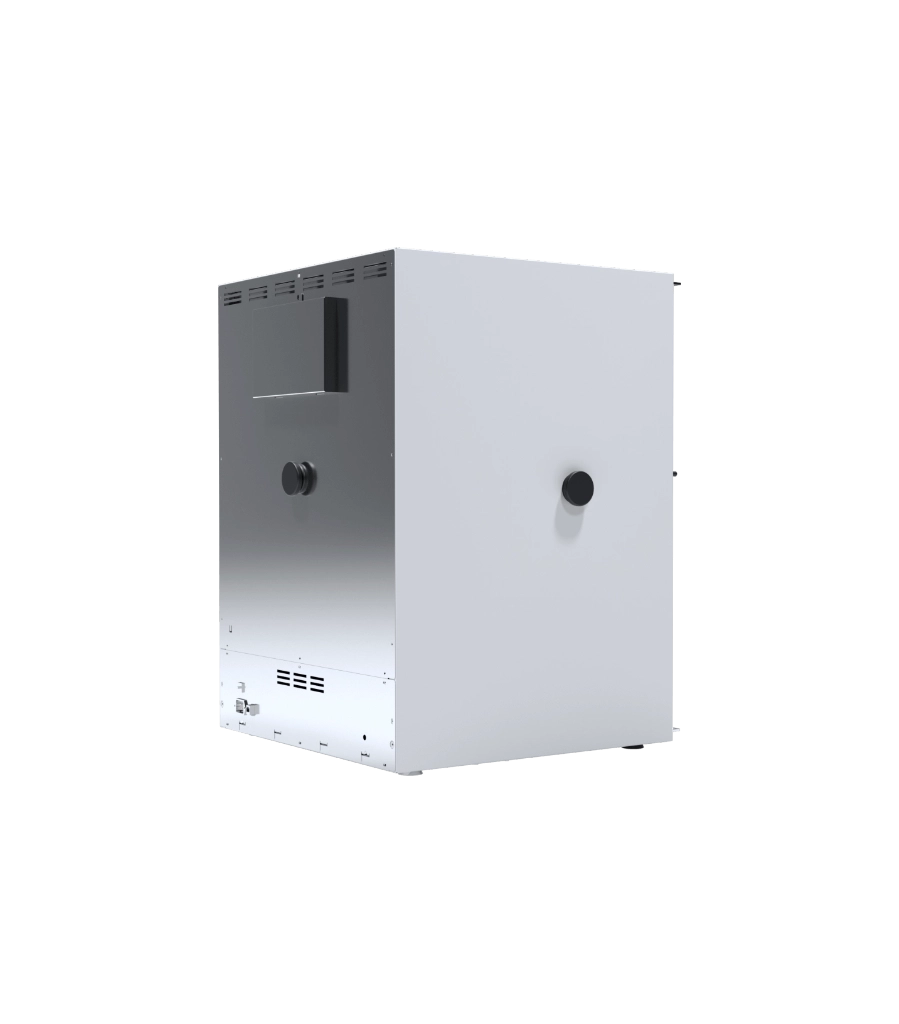

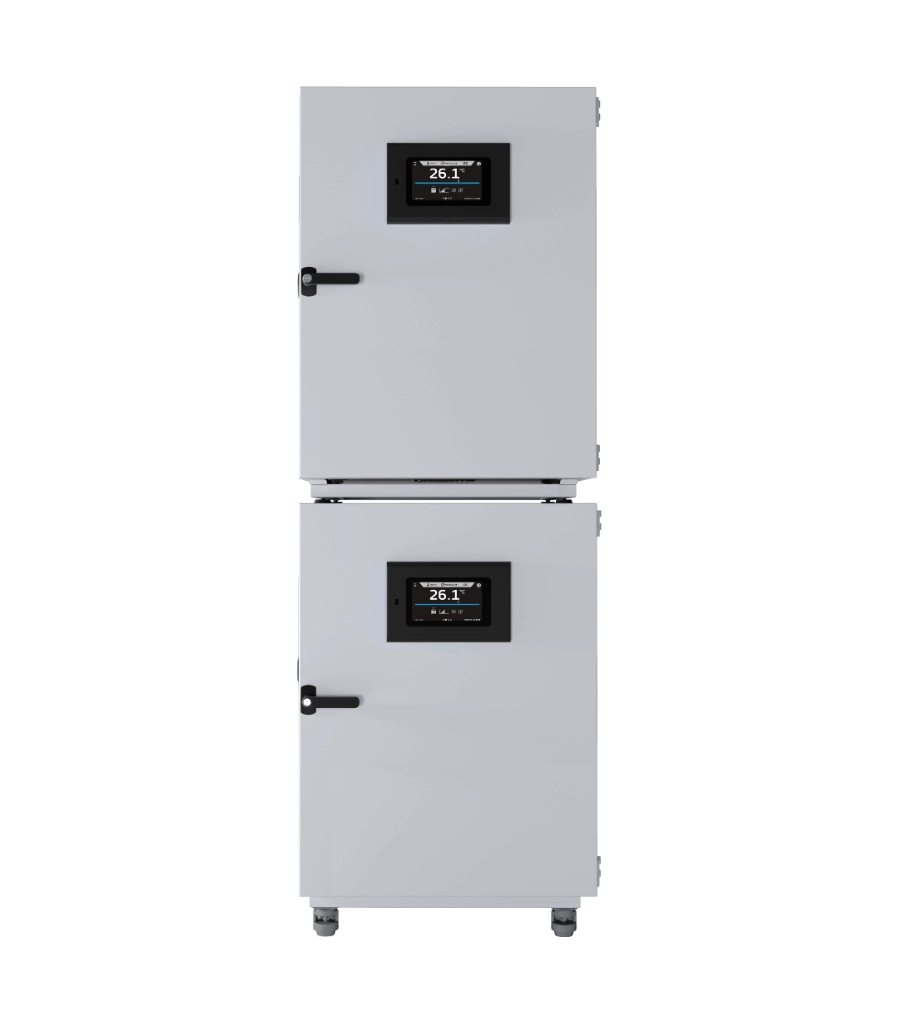

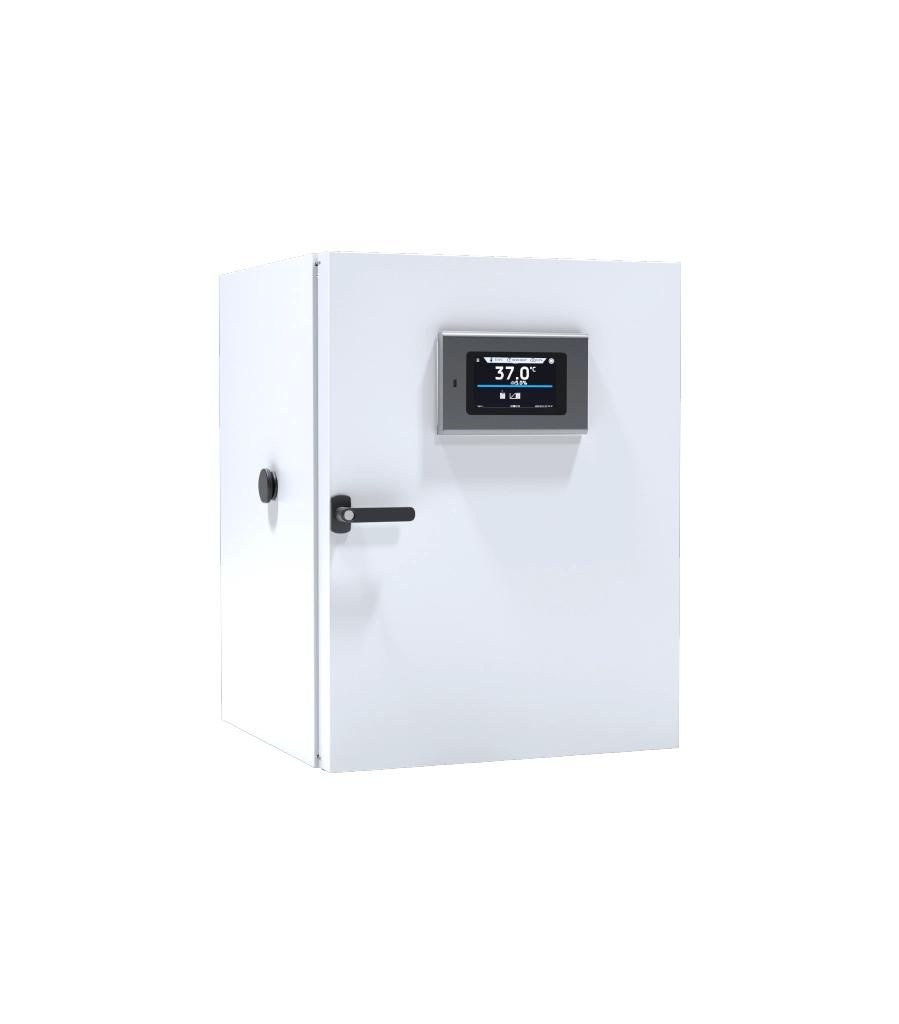

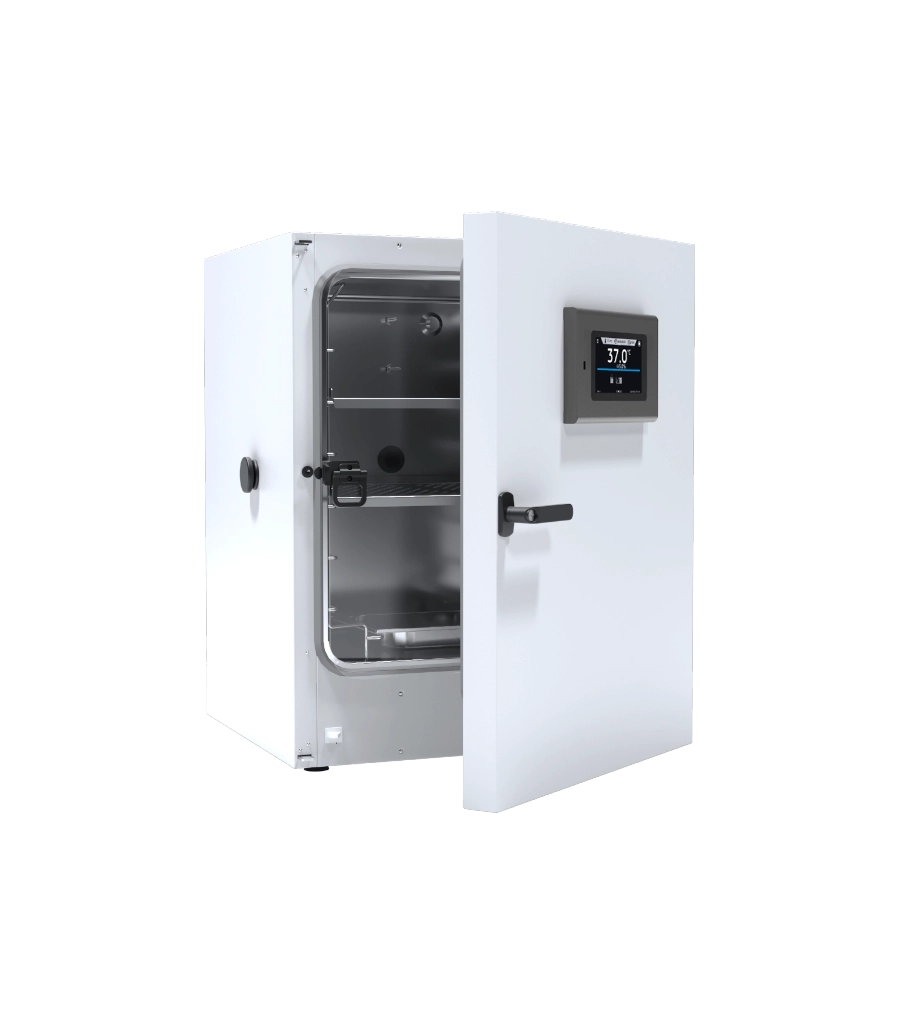

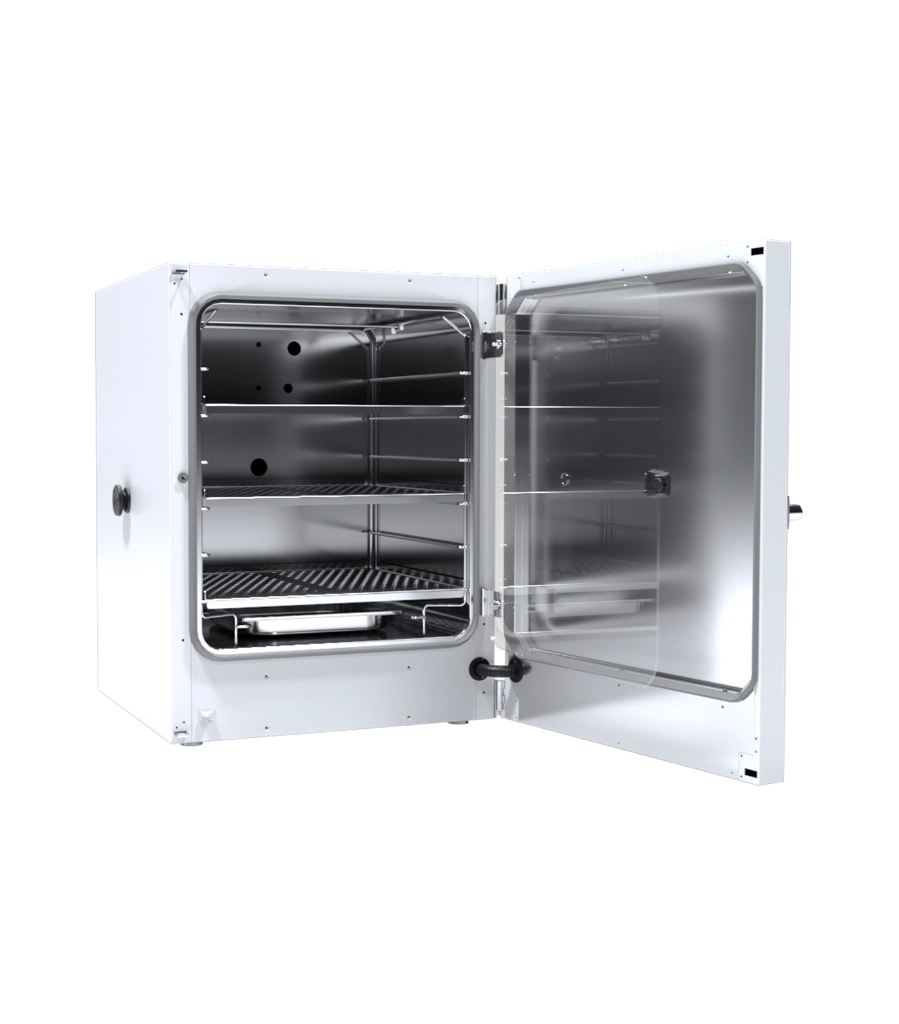

CO2 Incubator ILC 180
Features
- Natural Air Convection (without Fan)
- chamber volume 182 liters
- working capacity 135 liters
- rack for shelves
- stainless steel perforated shelf
- water pan
- key to the lock
- pressure gas hose with quick coupler socket and hose clamp for install pressure reducer
- ethernet cable
- manufacturer’s test certificate at 37°C
- instruction manual (only digital version can be downloaded from the internal memory)
- LabDesk software – can be downloaded from the internal memory
Smart Controller
