Air Volume Processed | 150 – 170 CFM |
---|---|
Fan | 2 units of 33 Watts Fans |
Air Process Area/Volume | 100-150 m2 |
UVC Lamp | 2 units x 36 Watts/ UV-C Light |
Dimension (HxDxL) cm | 21 x 21 x 95 cm |
Weight | 8.5 kg |
Installation | Ceiling Mounted (Bracket provided, adjustable) and Stand-alone |
Electrical Supply | 220 V , 50 Hz |
Shelf Life of UVC Lamp | Typical 9000-12,000 hours. |








DiaTek HySafe Air_UV light Air Sterilisation System
Air Sterilisation System with UVC Light
Diatek HySafe Air performs air sterilisation with UVC light, to eliminate microorganisms (viruses, bacteria, molds, yeasts and spores) spread from the air and spread to humans. DiaTek is the best UVC Air Sterilisation, it is packed with following features :
- Process up to 300 m3 volume or 100-150 m2 area of air per hour
- Equipped with two fans. Fan on the inlet section draws air into the device, while the fan on the outlet section blows out the sterilised air
- Comes with 2 units of 36 watt UVC lamps per device
- The reflectors in the inner chamber increase the intensity of the UVC light and allow the light to condense in the middle during the passage of air through the interior
- The carbon filters in the inlet and outlet section of the device prevent. the UVC light from going out. The system will not harm people presented in the room, while the device sterilises the air,
- These carbon filters prevent the entry of large particles such as dust and insects into the device
- The device can operate in all cold, hot and humid environments
- The device provide indication to show the UVC light is operating well – a green light is on when the system function well

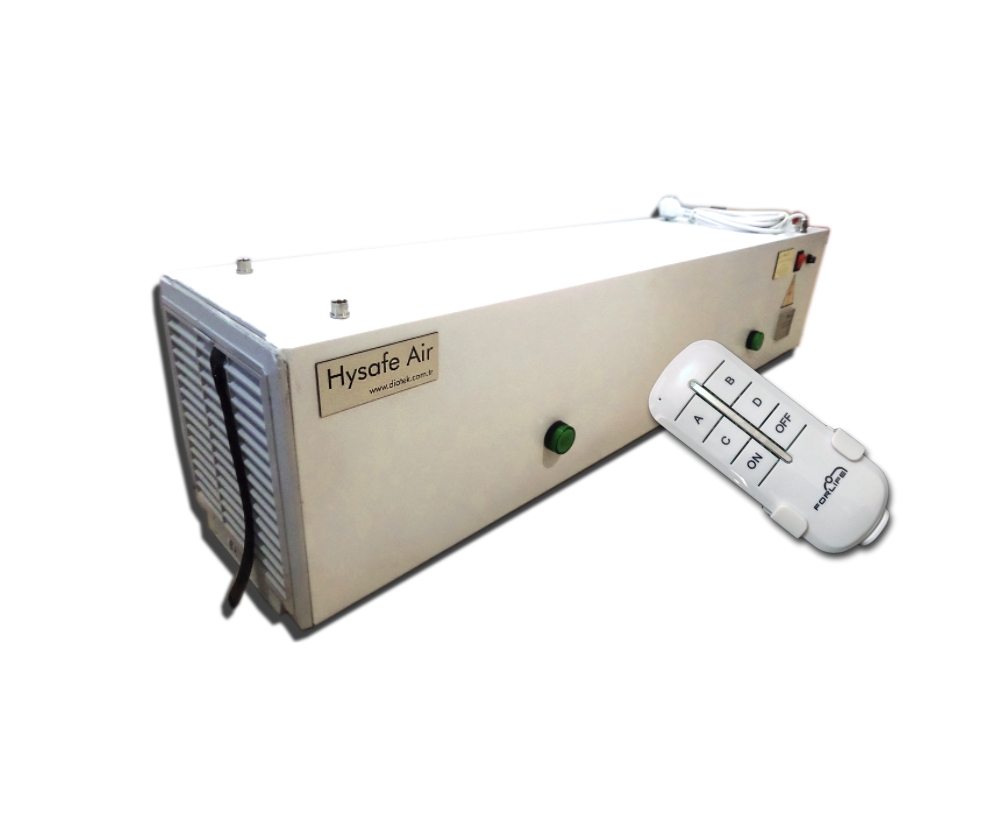

- The system comes with a remote control

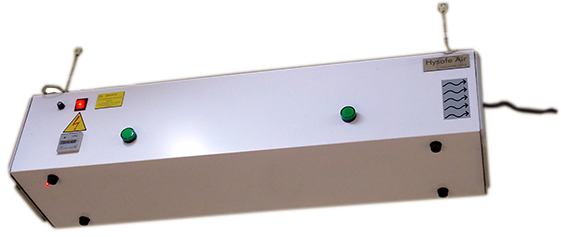

- The height is adjustable with the bracket
- Alternatively, it can also be used as a mobile UV steriliser by moving to different room without handling from the ceiling
Area of Application
- Food Production, Packaging and Storage Areas
- Pharmaceuticals and Cosmetics Manufacturing, Packaging and Storage Areas
- Hygienic Production, Filling and All Firms Packaging
- Microbiological Analysis Laboratories
- Hospitals and Clinics
- Operating Room, Intensive Care, Practice and Patient Rooms
- Mass Public Areas, such as Workplaces, Offices, Home, School, Nursery, Cinema and Gyms
