|External dimensions (L x D x H)||
1005mm x 615mm x 1106 – 1292mm
|Volume of air treated||
220 m3/hr (130 cfm)
|Sash opening type||
Wide opening with Air Foil to minimise air turbulences
Connection to main power : 240 V – Internal circuit : 24V-DC/50-60 Hz
Clear transparent and chemical resistant acrylic panel and electro-galvanised steel coated with anti-acid polymer
Made of injected Polypropylene
|Compliance with applicable world safety standards||
AFNOR NFX 15-211:2009: France – JG/T 385-2012 : China – SEFA 9 : USA – BS 7989 : England – DIN 12 927 : Germany – EN 1822 : 1998 (HEPA & ULPA) – CE Marking
|OEB 5 Tested||
Tested according to ISPE (International Society for Pharmaceutical Engineering) -Containment Measurement Testing Method. Results show the highest safety guaranteed below the Containment Performance Target (CPT) at 1µg/m3. Suitable for Class OEB 4 and OEB 5 application
|Face velocity at sash opening||
0.4 to 0.6 m/s (80-120 fpm) according to international and local standard (USECHH Reg. 2000)
Monitor remotely the safety functions of the Erlab Ductless Fume Hood's performance, change of settings, and events history via computer software and/or Smartphone App
|Safety Alert System||
Patented "Smart" technology consisting of safety alerts by LED pulsation and coded sounds to express the fan failure, insufficient face velocity or filter saturation/ breakthrough
|Tests Certificates and Reports||
Intertek (NFX 15-211)
|HEPA filter for powders||
HEPA H14 filtration efficiency : 99.995% according to MPPS method, EN1822 standard
40% filtration efficiency for particles >0.3 micron
|Stand and base cabinet||
Various options of stand with wheels, and base cabinet configures with electrical socket, water, compressed air, sink and faucet. Stability Table with graphite worktop is also available.

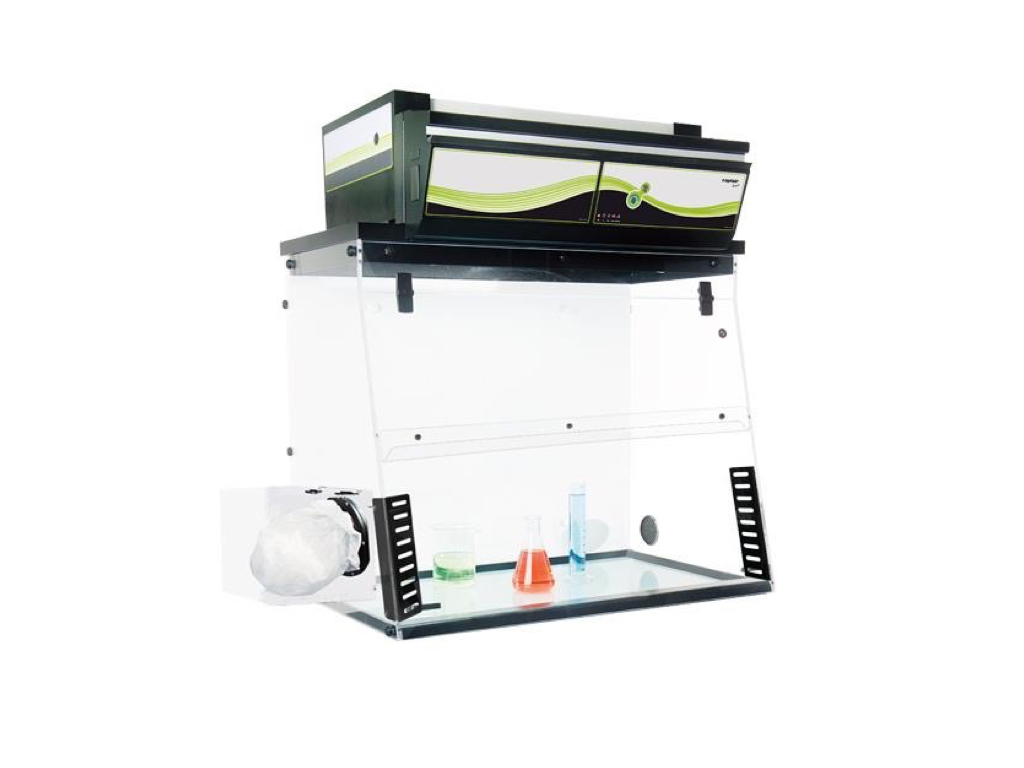

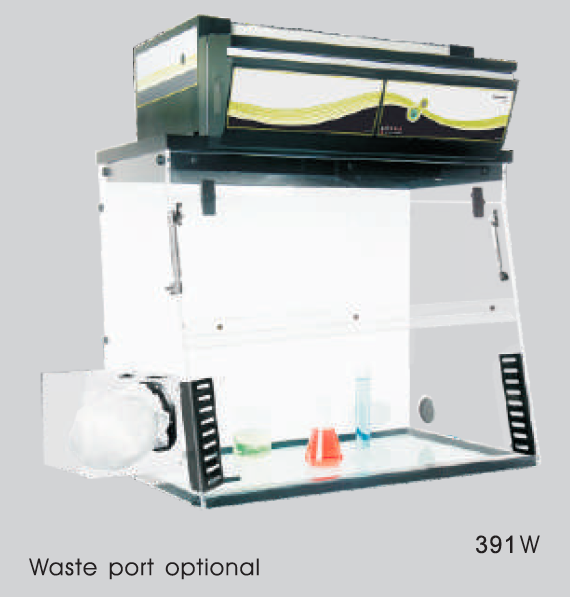

Erlab 391W Smart Weighing Station
Erlab Captair 391W Smart Weighing Station is the 3.3 ft (1005 mm) length hood designed specifically for powder containment application.
The Captair Smart weighing station delivers the proper airflow at the face of the enclosure and total filtration of hazardous powders or potent pharmaceutical compounds. The enclosure is designed to allow full access to your balance and reduce airflow turbulence to maintain stability to 6 decimal places without compromising containment. The air exhausted into the room complies with Class 5 (E.N. ISO 14 644) standards.
OEB Tested and Report
Captair Smart also being tested according to the “Containment Measurement Testing Method” by ISPE (International Society of Pharmaceutical Engineering) guidelines. Captair Smart Weighing station achieved the containment performance target (CPT)set at 1 µg/m3. Captair Smart Weighing Station can be used with chemical powders classified as high as OEB 5 (Occupational Exposure Band 5, the highly dangerous !) by most pharmaceutical companies.
Pharmaceuticals. Foods, Healthcare & Cosmetics
