| MODEL DESCRIPTION | H 402 | ||||
| EXTERNAL WIDTH (mm / in) | 482 / 19 | ||||
| EXTERNAL DEPTH (mm / in) | 451 / 17 ¾ | ||||
| EXTERNAL HEIGHT (mm / in) | 315 / 12 ½ | ||||
| AIR FLOW (m3/h – CFM) | 75 m3/h | ||||
| SAFETY STANDARDS | Filtration performances tested according to the AFNOR NF X 15-211:2009 standard : France EN 1822:1998 (HEPA H14 & ULPA U17 Filters) – CE Marking | ||||
| VOLTAGE / FREQUENCY (V/Hz) | 230v / 50Hz | ||||
| POWER CONSUMPTIONS (Watts) | 19 | ||||
| FLEXIBLE PVC PIPES (meter / feet) | 1 meter / 3,3 feet (Ø 63 mm) | ||||
| PVC FITTING | Ø 65-75-80-100 mm | ||||
| FEATURES | |||||
| SMART TECHNOLOGY | Simple communication by LED pulsation system: fan settings, usage timer, fan alarm, face velocity, automatic filter performance alarm | ||||
| EGUARD | App for remote control to monitor the chemical storage cabinet, change the settings, and deliver safety alerts immediately to you devise (mobile, tablet and PC) | ||||
| CONNECTIVITY | RJ45 cable connection | ||||
| CHEMICAL LISTING | List of approved chemicals | ||||
| OPTIONS | |||||
| CARBON FILTRATION FOR GASES AND VAPORS | AS: For organic vapors BE+: For organic and acid vapors
F: For formaldehyde vapors K: For ammonia vapors |
||||
| PARTICULATE FILTRATION FOR POWDERS | HEPA H14: 99.995% filtration efficiency MPPS method, EN1822 standard
ULPA U16: 99.99995% filtration efficiency according MPPS method, EN1822 standard |
||||
| OPTIONAL MOLECODE GAS SENSORS | Detection sensor: Type A, for acids / Detection sensor: Type F, for formaldehyde / Detection sensor: Type S, for solvents | ||||
| STRUCTURE | |||||
| METALLICS PART | Anti-corrosion steel coated with 100% polyester | ||||
| FILTRATION MODULE | Injected polypropylene | ||||

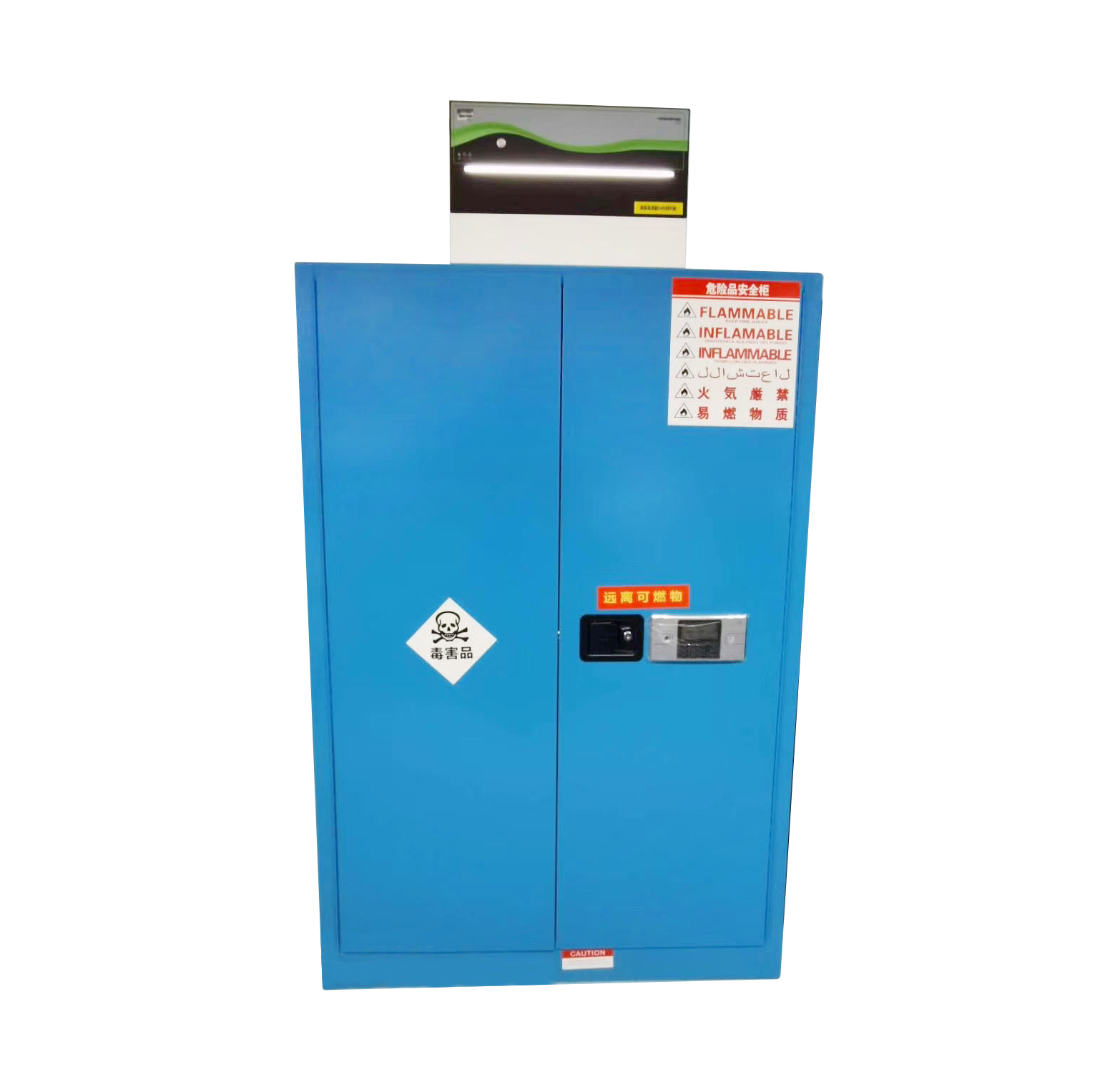

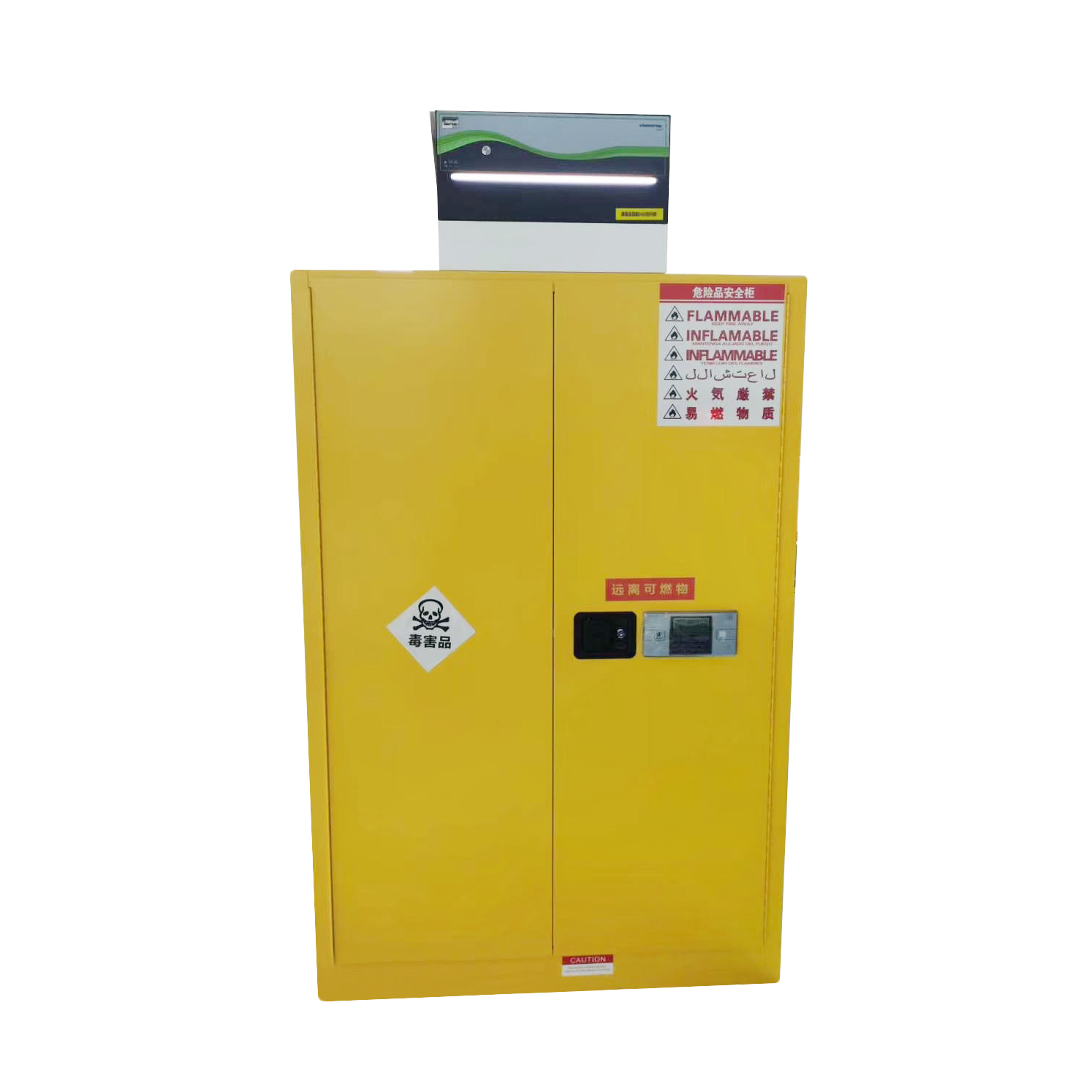

Erlab Chemtrap Smart H402
Standalone Filtration System for Fire Proof and Chemical Storage Cabinets
Protection from inhalation of noxious chemicals!
Benefits
- Transform any fire proof or chemical storage cabinet into a standalone filtered storage safety cabinet
- Eliminates noxious vapors released from your fire resistant safety cabinet and improves your safety from inhalation risks
- Continuously cleans the air in your lab
- Simple and intuitive communication by light and sound system
- Easy to install, energy saving & economical, no ducting needed
Erlab’s 50 years of expertise in research, design and manufacturing of filtering fume hoods and chemical storage cabinets guarantee superior filtration that will keep you protected during your chemical processes.
Chemtrap Smart filters the air from the internal chamber of a storage cabinet, captures toxic fumes right at the source and returns clean air back into the laboratory while contributing to a better and safer working environment. Designed as a standalone system with no need for ducting, it is equipped with an adjustable flexible air duct that allows for easy connection points to the side, back or to the top of your existing cabinet.
Equipped with the highest efficiency filtration system, Chemtrap Smart now integrates an innovative and straightforward mode of communication called Smart Technology. This technology uses simple light and sound pulsations to show that the unit is operating safely so can focus your attention on what is most important: your work.
Simpler to use
- SMART technology informs users about their protection using light and sound. Light and sound pulses give real time information about:
- eGuard App gives you remote control to monitor you Chemtrap, change the settings and delivers safety alerts immediately to you mobile, tablet or PC device.
Safer to operate
- The configurable filtering system above the fire proof or chemical storage cabinet can be adapted to filter gases, solvents, powders and particulates keeping the user and the lab protected by safely and efficiently cleaning the air when the room free of any toxic, hazardous vapors or odors.
- New optional sensors can be added for detection of solvents or acids or formaldehyde.
