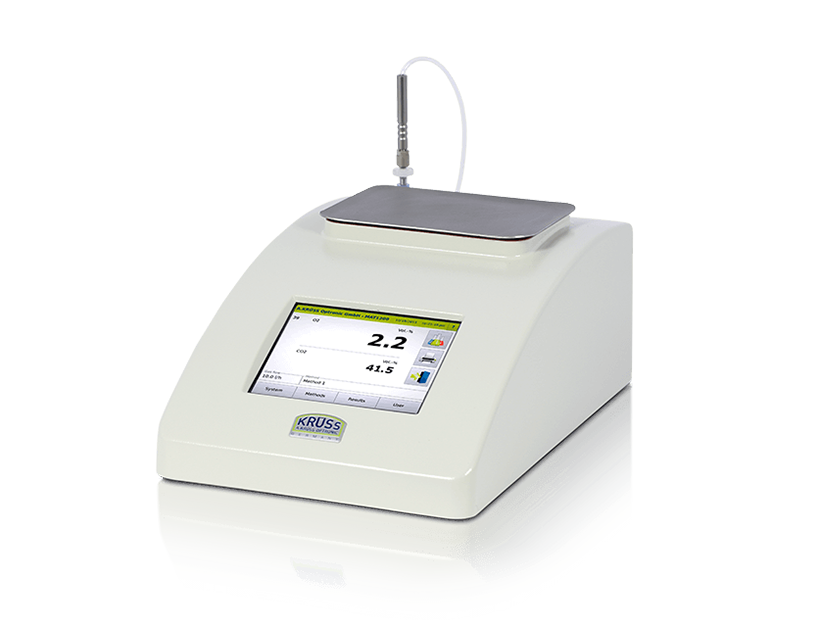

Gas Analyzer for O2- and CO2- Measurement MAT1200

SKU: MAT1200

The economic solution

If you need to measure the concentrations of oxygen and carbon dioxide, then the MAT1200 will be the appropriate model. In addition to an electrochemical oxygen cell, it features a non-dispersive infrared sensor (NDIR) for the CO2 measurement over the mearing range of 0 and 50 volume per cent and with a high accuracy of ±0.5 volume per cent. The MAT1200 hence covers most carbon dioxide applications in modified atmosphere packaging – at a very attractive price.

Application:

The gas analyzers MAT1200 are the ideal solution for the food, but also electronics, pharmaceutical or cosmetics industries. The measurement range of the electrochemical oxygen cell between 0.5 and 35 volume per cent O2 makes it especially interesting for products such as fresh fruit, raw, low-fat fish or sea food, which are packaged neither under an oxygen-free nor particularly oxygen-rich modified atmosphere. From poultry to cut cheese to cake and pastries – the non-dispersive infrared sensor with its wide measurement range between 0 and 50 volume per cent  is suitable for most applications of carbon dioxide in modified atmospheres. Its high accuracy of ±0.5 volume per cent CO2 always ensures precise measurement results. A typical application is the control of oxygen and carbon dioxide concentration in the following products:

  • Coffee
  • Dried fruit
  • Bakery products
  • Cheese and soft cheese
  • Fresh pasta products
  • Desserts
  • Products with alcohol
  • Convenient
SCALES Oxygen
Carbon dioxide
Nitrogen
Any number of user-defined scales
Oxygen (O2)
MEASUREMENT RANGE 0.5 – 35 vol%
ACCURACY ±0.2 vol%
RESOLUTION 0.1 vol%
Carbon Dioxide (CO2)
MEASUREMENT RANGE 0–50 vol%
ACCURACY ±0,5 vol%
RESOLUTION 0,1 Vol.-%
Nitrogen (N2)
ARITHMETIC DETERMINATION Residual content of the gas mixture
O2-Sensor
TYPE Electrochemical cell (EC)
MEASUREMENT PRINCIPLE Acidic electrolyte
SERVICE LIFE Up to 6 years (at 20 vol% O2)
CROSS-SENSITIVITY No CO2 cross-sensitivity
DRIFT Low drift, < 3 %/month
CO2-Sensor
TYPE Two-channel NDIR sensor
MEASUREMENT PRINCIPLE Infrared spectroscopy
SERVICE LIFE Unlimited
CROSS-SENSITIVITY Not affected by moisture
DRIFT Low drift < 1 %/month
