| Model: | Smart Mini |
| Feed Water Requirement | |
| Source | Tap Water |
| Conductivity* | <400 μs/cm |
| Hardness** | <450ppm as CaCO3 |
| Pressure | 0.1~0.5MPa(14-72psi) |
| Temperature | 5~40°C |
| Purification Water (Class III) | |
| Ionic Rejection | >95% |
| Bacteria Rejection | >99% |
| Conductivity | <20 μs/cm |
| Productivity Rate | 15L/hr |
| Ultrapurification Water (Class I) | |
| Resistivity at 25 C | 18.2MΩ.cm |
| Conductivity at 25 C | 0.055 μs/cm |
| TOC Level*** | 1~5 ppb |
| Endotoxin (Pyrogens) | NA |
| Particulate (0.02μm) | ≤1pc/ml |
| Bacteria*** | ≤1 cfu/ml |
| Rnase/Dnase** | N/A |
| Manual dispense flow rate | 1.2~1.5 L/min |
| Automatic dispense volume | 100-60000ml |
| Electrical Requirements | |
| Electrical Voltage | 110V/220V±10% |
| Electrical Frequency | 50Hz/60Hz |
| Packing information | |
| Net Weight | |
| Main Units | 32 kg |
| Water Tank | N/A |
| External Dimensions (WxDxH) | |
| Main Units | 315 x 525 x 570 mm |
| Water Tank | N/A |
| Shipping Weight | |
| Main Units | 45 kg |
| Water Tank | N/A |
| Shipping Dimensions (WxDxH) | |
| Main Units | 525 x 610 x 770 mm |
| Water Tank | N/A |

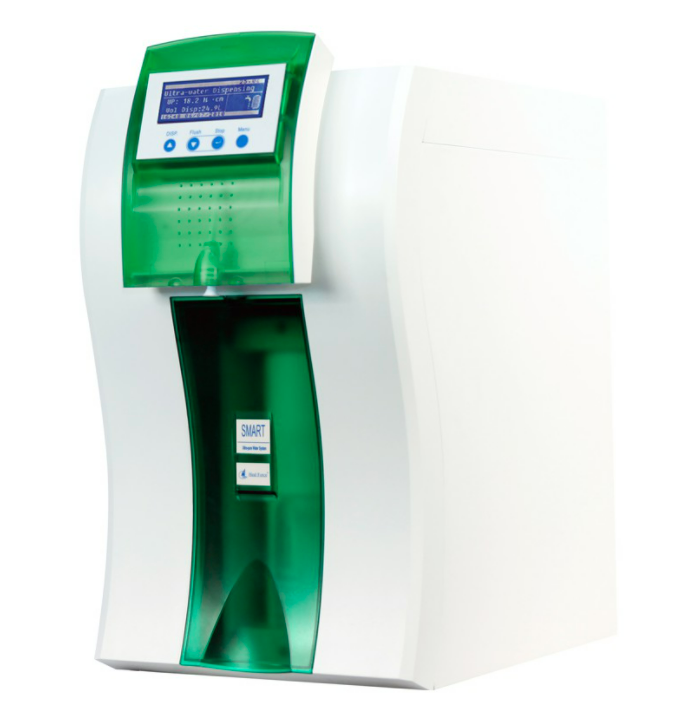

Heal Force Smart Mini Water Purification Systems
Compact new design for small volume ultra-pure water usage.
Many laboratories require ultra-pure water every day – for HPLC or for other instrumental analyses- but only as small volumes at a time, up to a total of a few liters at the most. However, this is no reason to do without professional, freshly-prepared ultra-pure water and buy expensive HPLC water. After all, with the repeated taking of small volumes from an HPLC water container, the quality of the water and the TOC-value no longer fulfill the specifications. The ultra-pure water is no longer ultra-pure!
