| Motor power | 500W |
|---|---|
| Power supply | 220V，50Hz |
| Flow rate range (H₂O) | 1-15L/min |
| Maximum working viscosity | 1000cP |
| Speed range | 10000-28000rpm |
| Temperature | 120℃ |
| Speed display | Scale/Digital display |
| Speed control | Stepless speed regulation |
| Medium-contact material | SS316L、FKM |
| Standard working chamber | Stainless steel with jacket |
| Standard dispersing agitator | 20DG |
| Mechanical seal material | SIC、FKM |
| Inlet/outlet size | 14 (Hose connection) |
| Process type | Inline processing |
| Working base material | SS304 |
| Overall dimensions | 465×260×590 |
| Weight | ~6kg |
| Container capacity | 2L |

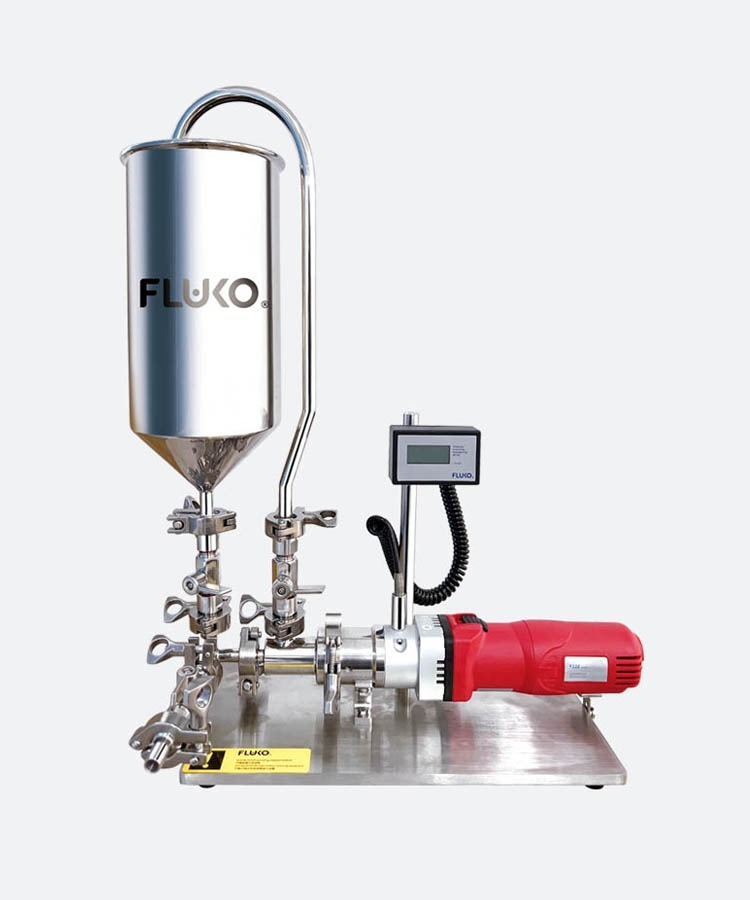

Inline High Shear F22ZD-672-T
Description
Applied laboratory/Pilot external circulation shearing homogenization continuous process processing, simple and compact design. Modular safety design, with process valves to achieve flow control to meet different process requirements, suitable for online emulsification, dispersion and suspension process under vacuum or pressure aseptic environment; Can realize steam sterilization treatment; Unique fixed rotor structure, narrow working cavity flow shear more sufficient, maximum 27M/s line speed rapidly reduce particle size, processing materials more fine, more uniform dispersion; Desktop operation, convenient operation for R&D personnel, easy assembly and disassembly; Optional double feed structure, integrated peristaltic pump upgrade module function, easy to cope with different flow, viscosity process .
