| Motor power | 1800W |
|---|---|
| Power supply | 220V，50/60Hz |
| Flow rate range (H₂O) | 1~30L/min |
| Maximum working viscosity | 1000cP |
| Speed range | 2500~23500rpm |
| Temperature | 120℃ |
| Speed display | Digital |
| Speed control | Stepless |
| Medium-contact material | SS316L |
| Standard working chamber | Stainless steel |
| Standard dispersing agitator | 40DG |
| Mechanical seal material | SIC、FKM |
| Inlet/outlet size | 18 (Hose connection) |
| Process type | Inline processing |
| Working base material | SS304 |
| Overall dimensions | 515×180×150 |
| Weight | ~12kg |

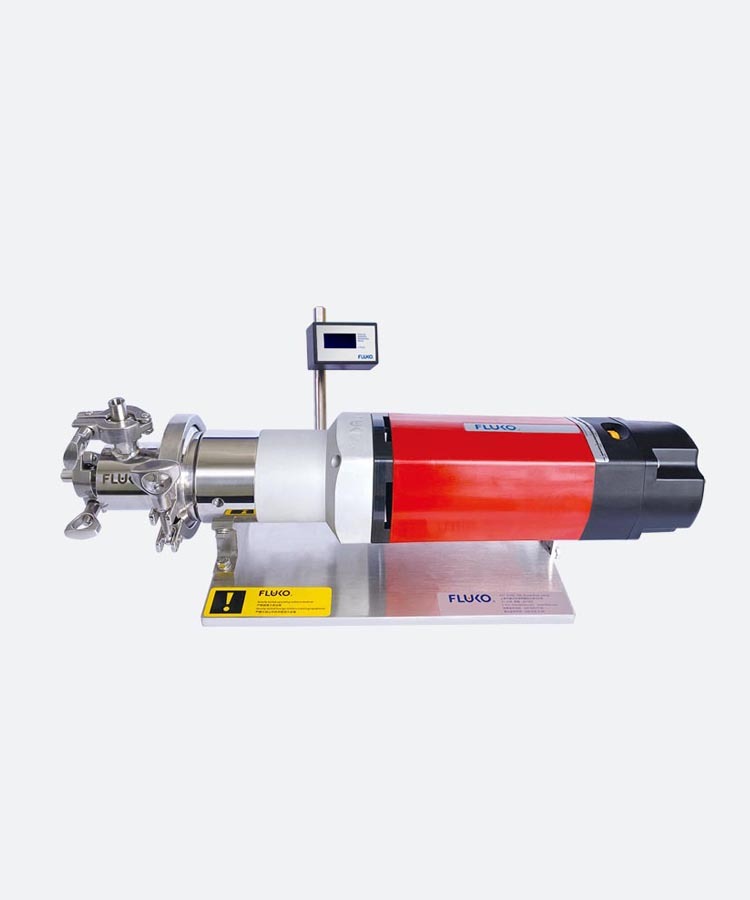

Inline High Shear F40ZD
Description
High speed motor, unique stator and rotor structure. Super shearing force rapidly reduces the size of liquid drops, to produce finer, more uniform material. The utility model can simulate the laboratory inline process. Highly efficient, achieving homogeneity without dispersion or dead angles.
Applicable
Suitable for inline processes and circular materials for dispersal, emulsifying, homogenization and mixing.
