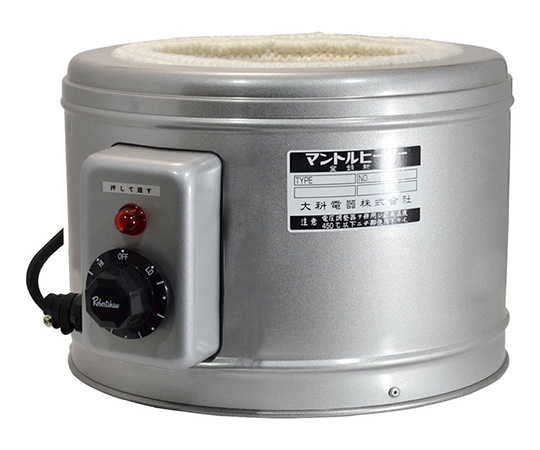

Mantle Heater (with input regulator, for beakers)

SKU: GBR-5/10/20/30/50/100
Order No Model No Capacity(mL) Electric Capacity(W)
1-164-82 GBR-5 500 250
1-164-83 GBR-10 1000 400
1-164-84 GBR-20 2000 500
1-164-85 GBR-30 3000 600
1-164-86 GBR-50 5000 700
1-164-87 GBR-100* 10000 1200

※Please inform us of the beaker’s outer diameter (⌀230 or ⌀240) in the case of the GBR-100

Specifications

  • Highest temperature: 450℃
  • Model number: GBR-5
  • For beaker
  • Capacity: 500mL
  • Power supply: 230V±5%
  • Country of origin: Japan
  • With input regulator
  • RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
  • Package size：310×230×235 mm　2 kg　 [About Package size]
GBR-10

Order No: 1-164-83
Highest temperature: 450℃
Model number: GBR-10
For beaker
Capacity: 1000mL
Power supply: 230V±5%
Country of origin: Japan
With input regulator
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：310×230×235 mm　2.2 kg
GBR-20

Order No: 1-164-84
Highest temperature: 450℃
Model number: GBR-20
For beaker
Capacity: 2000mL
Power supply: 230V±5%
Country of origin: Japan
With input regulator
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：355×270×265 mm　3 kg
GBR-30

Order No: 1-164-85
Highest temperature: 450℃
Model number: GBR-30
For beaker
Capacity: 3000mL
Power supply: 230V±5%
Country of origin: Japan
With input regulator
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：410×320×285 mm　4.5 kg
GBR-50

Order No: 1-164-86
Highest temperature: 450℃
Model number: GBR-50
For beaker
Capacity: 5000mL
Power supply: 230V±5%
Country of origin: Japan
With input regulator
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：425×340×330 mm　5.8 kg
GBR-100*

Order No: 1-164-87
Highest temperature: 450℃
Model number: GBR-100
For beaker
Capacity: 10000mL
Power supply: 230V±5%
With input regulator
Country of origin: Japan
*Specify φ230 or φ240 for the outer diameter of the beaker to use.
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：470×390×375 mm　7.8 kg
