| Model | Description |
|---|---|
| MVD-300N | Order No. : 1-5811-11 |
| MVD-100 | Order No. : 1-6158-01 |

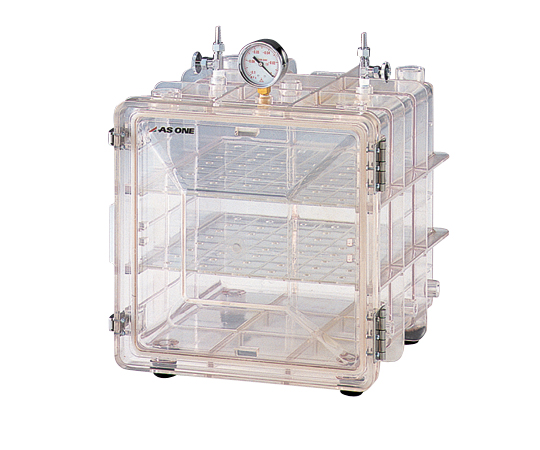

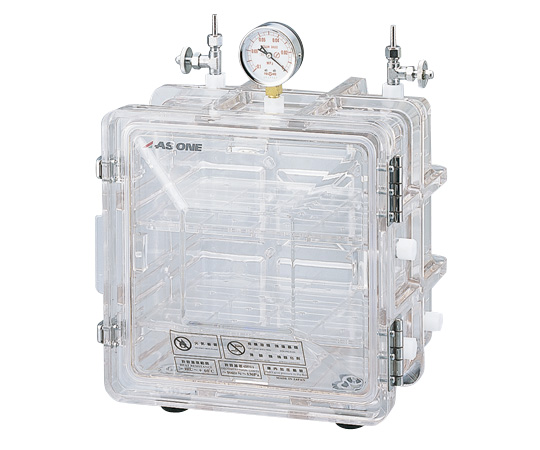

Molded Vacuum Desiccator
Features
● Strong vacuum desiccator made of integrally molded polycarbonate.
● The sealing section between the door and the main unit uses a highly airtight silicon packing, eliminating the need for greasing or other
lubrication.
● The vacuum gauge and valve can be mounted on either the top or right side of the main unit.

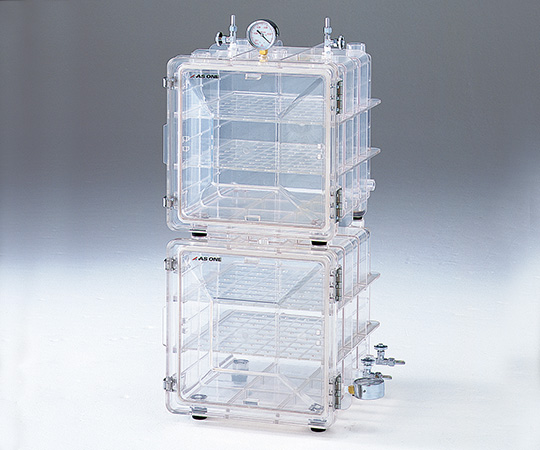

● The MVD-300N can also be used with the main unit stacked two high.
Specifications
● Material: Polycarbonate
● Permissible Vacuum: Approx. 133 Pa (1 Torr)
● Number of Shelves: 5 shelves (MVD-300N) and 4 shelves (MVD-100)
● Capacity: 32 L max. (MVD-300N) and 13 L max. (MVD-100)
● Withstand Load: Approx. 50 kg (main unit) and approx. 5 kg (shelf board section)
● Weight: Approx. 13 g (MVD-300N) and 7 kg (MVD-100)
● Vacuum Valve (⌀8 a, nipple/base R1/4) × 2, Vacuum gauge × 1, Shelf board × 2
