Muffle Furnace

SKU: 300-Plus/500-Plus/1500-Plus
Order No Model No Outer dimensions(mm) Furnance interior dimensions(mm) Capacity(L)
1-5057-11-90 300-Plus 314 × 468 × 396 120 × 222 × 110 2.9
1-5057-12-90 500-Plus 415 × 503 × 441 160 × 240 × 130 5
1-5057-13-90 1500-Plus 510 × 608 × 520 230 × 300 × 200 13.8
  • Accessories: Furnace setter plate, Exhaust port plug, Exhaust sleep, AC cord (300-Plus is attached to the body)
  • Option (sold separately): Deodorizer (ES71, ES72) Ventilator (VF71, VF72), Gas introduction unit (KDG-300, -1500, -3000, -5000), 3-color patolight, Different system excessive temperature rise sensor, Body fixing fitting unit, Electrical leakage breaker, Platinel thermocouple, wagon (KDW-100, KDW-200), Temperature sensor for recorder output
  • *Vacuum gas replacement furnace type is also available. Please contact with us.
  • Country of origin: Japan

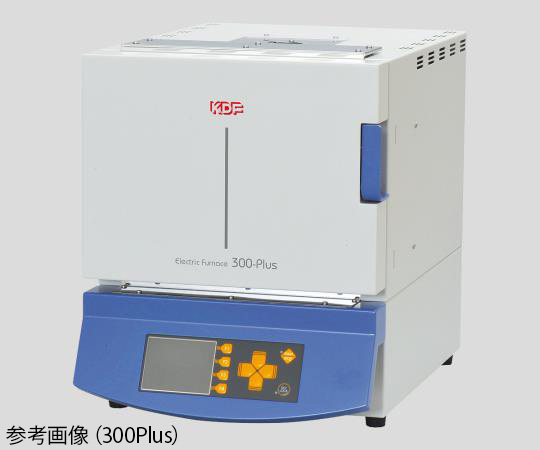

300-Plus

Order No: 1-5057-11-90
Outer dimension (mm): 300 x 440 x 390

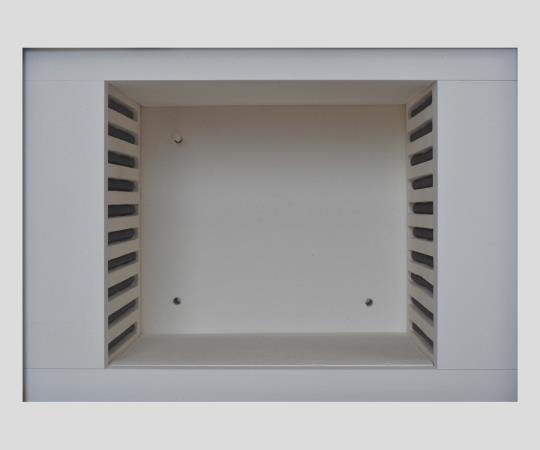

Inner furnace dimension (mm): 120 x 225 x 110
Capacity (L): 3
Operating temperature range: 100℃ – 1150℃ (0.5℃ unit)
Temperature distribution accuracy: +/- 3℃ at 1000℃
Temperature rise time: Approx 40 minutes, room temperature -> 1150℃
Control system: Program operation (50 patterns, 100 segments)
Temperature sensor: K class thermocouple
Heater capacity: 1.2kW
Furnace body: Ceramic fiber
Safety device: Overcurrent breaker, Excessive temperature rise setting device, Door opening and closing sensor, Key lock function, Exterior temperature sensitive type cooling fan, Microcomputer abnormality detection device (heater disconnection, Thermocouple disconnection, Memory content abnormality, Excessive temperature rise abnormality, Control substrate abnormality)
External output: Recorder thermocouple output, Output for automatic gas introduction 1 – 2, Event contact output 1 – 4, Output for deodorizer, During-operation, end, alarm contact output, 3-color patolight output, SD card slot
Exhaust port diameter: φ23.5mmWeight: 22kg
Power: AC220V
Current capacity*: 12A (*All numerical data are representative values and are not guaranteed values.
*Please prepare plenty of current capacity for power equipment.)
500-Plus

Order No: 1-5057-12-90
Outer dimension (mm): 400 x 470 x 450
Inner furnace dimension (mm): 160 x 245 x 130
Capacity (L): 5.1
Operating temperature range: 100℃ – 1150℃ (0.5℃ unit)
Temperature distribution accuracy: +/- 3℃ at 1000℃
Temperature rise time: Approx 28 minutes, room temperature -> 1150℃
Control system: Program operation (50 patterns, 100 segments)
Temperature sensor: K class thermocouple
Heater capacity: 1.8kW
Furnace body: Ceramic fiber
Safety device: Overcurrent breaker, Excessive temperature rise setting device, Door opening and closing sensor, Key lock function, Exterior temperature sensitive type cooling fan, Microcomputer abnormality detection device (heater disconnection, Thermocouple disconnection, Memory content abnormality, Excessive temperature rise abnormality, Control substrate abnormality)
External output: Recorder thermocouple output, Output for automatic gas introduction 1 – 2, Event contact output 1 – 4, Output for deodorizer, During-operation, end, alarm contact output, 3-color patolight output, SD card slot
Exhaust port diameter: φ23.5mm
Weight: 33kg
Power: AC220V
Current capacity*: 9A (*All numerical data are representative values and are not guaranteed values. *AC cord 3m, 5.5SQ, with grounding (with crimp terminal conforming to M5 screw) *Please prepare plenty of current capacity for power equipment.)
1500-Plus

Order No: 1-5057-13-90
Outer dimension (mm): 570 x 575 x 510
Inner furnace dimension (mm): 230 x 305 x 200
Capacity (L): 14
Operating temperature range: 100℃ – 1150℃ (0.5℃ unit)
Temperature distribution accuracy: +/- 3℃ at 1000℃
Temperature rise time: Approx 25 minutes, room temperature -> 1150℃
Control system: Program operation (50 patterns, 100 segments)
Temperature sensor: K class thermocouple
Heater capacity: 3.6kW
Furnace body: Ceramic fiber
Safety device: Overcurrent breaker, Excessive temperature rise setting device, Door opening and closing sensor, Key lock function, Exterior temperature sensitive type cooling fan, Microcomputer abnormality detection device (heater disconnection, Thermocouple disconnection, Memory content abnormality, Excessive temperature rise abnormality, Control substrate abnormality)
External output: Recorder thermocouple output, Output for automatic gas introduction 1 – 2, Event contact output 1 – 4, Output for deodorizer, During-operation, end, alarm contact output, 3-color patolight output, SD card slot
Exhaust port diameter: φ23.5mm
Weight: 49kg
Power: AC220V
Current capacity*: 18A (*All numerical data are representative values and are not guaranteed values. *AC cord 3m, 5.5SQ, with grounding (with crimp terminal conforming to M5 screw) *Please prepare plenty of current capacity for power equipment.)
