| Motor power | 205W |
|---|---|
| Power supply | 200~240V, 50/60Hz |
| Maximum working capacity (H₂O) | 30L |
| Maximum working viscosity | 40000cP |
| Speed range | 30~2000rpm |
| Timing range | 0-6000mins |
| Speed memory | Yes |
| Speed control | Stepless speed regulation |
| Precise speed control | 1rpm |
| Speed display | Digital display |
| Maximum output torque | 50N·cm |
| Shaft length | Adjustable |
| Standard dispersing agitator | Four blade agitator |
| Standard agitator material | SS316L |
| Agitator fixation | Drill chuck |
| Clench diameter range | 0.5~10mm |
| Forward and reverse rotation switching | Yes |
| Button lock | Yes |
| Button dynamic monitoring and display | Yes |
| Speed dynamic detection and display | Yes |
| Host computer and data connection | Yes (software EU control for optional) |
| Intermittent control | Yes (software EU control for optional) |
| Dumping protection | Yes (automatic shutdown at 30 degrees tilt) |
| Temperature measurement function | Yes |
| External temperature sensor | PT1000 (for optional) |
| Temperature measurement range | -50~400℃ |
| Temperature Measurement Accuracy | 0.15+0.002｜t｜℃ |
| Temperature display function | Yes |
| Overheat protection | 75℃ |
| Working temperature | 5~40℃ |
| Allowable relative humidity | 80% |
| Working frame, Base | Standard（Optional for gas spring bracket） |
| Class of protection | IP30 |
| Communication interface | DB-9/USB-Type c |
| Shell material | Aluminium alloy |
| Package size | 220x350x720 |
| Weight | ~5.9kg |
| Package | Carton |

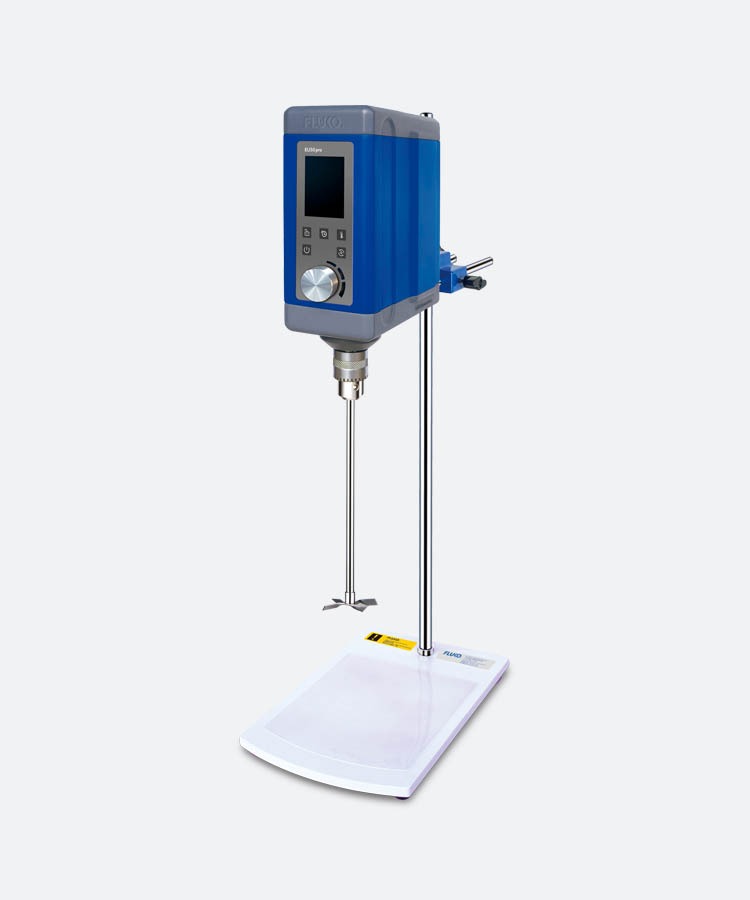

Multifunctional Electric Stirrer EU50 pro
EU50 pro multi-function electric stirrer is suitable for mixing liquids of varying viscosity in the laboratory.With new brushless motor and control chip, inculding function of strong mixing, timing control, speed memory and automatic adjustment, speed and torque dynamic curve display, temperature measurement and display, torque compensation etc. Sensitive touch button and one-button shuttle button, which makes the operation easier.This model can be equipped with host computer and data connection function, which can be easily integrated into modules and systems to meet diverse research and development needs.
Multi-function
It has the functions of timing switch, forward and reverse rotation of the spindle, speed memory, torque display, temperature measurement, data output, data connection, etc.
Excellent performance
Stable operation with the strong power, processing maximum of capacity 30L, maximum output torque 50N.cm.
Safe and reliable
The motor has functions such as overheat protection, overload protection, dumping shutdown protection, etc.
-TFT LCD display
-Timing operation
-Programmable function
-Torque dynamic measurement
-Penetrating stirrer
-Temperature measurement
-Data external function
-Silent operation
-Overload protection
