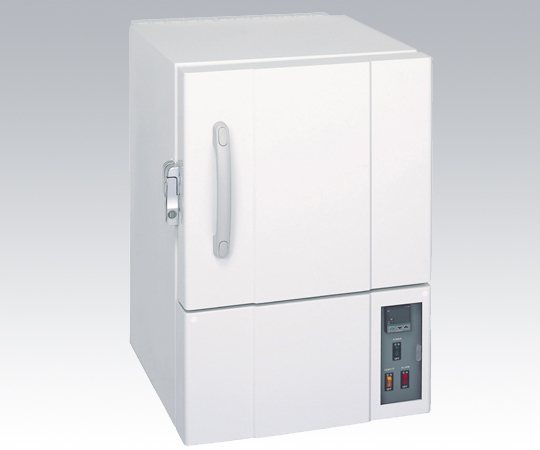

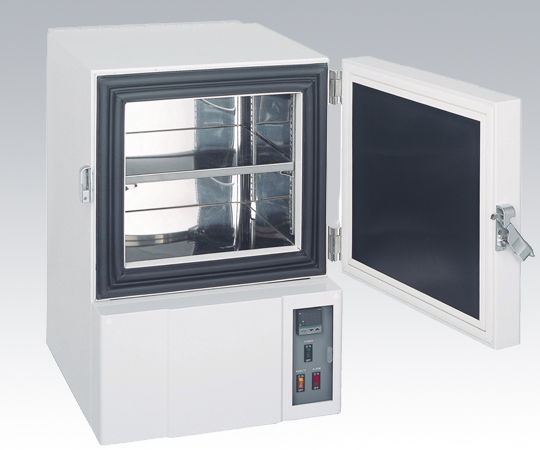

Table-Top Ultra Low Temperature Chamber (My Bio Cube)

SKU: DTF-35D2/Standard tray/Freeze box tray/Freeze box IB-02100/IB-02081/Stainless steel frame
Order No Model No Outer dimensions(mm) Internal dimensions(mm)
2-6834-01-90 DTF-35D2 460＋35 × 620＋40 × 680 336 × 356 × 295
2-6834-11 Standard tray 325 × 325＋10 × 290 Upper side: 315 × 319 × 110; Lower side: 315 × 319 × 166
2-6834-12 Freeze box tray 153 × 308＋10 × 281 Freeze box storage capacity: 10 boxes
2-5480-02 Freeze box IB-02100 147 × 147 x 52 No of tubes stored: 1.2 and 2.0 mL × 100 tubes
2-5480-05 Freeze box IB-02081 134 x 134 x 52 No of tubes stored: 1.2 and 2.0 mL × 81 tubes
2-6834-15 Stainless steel frame 600 x 600 x 800 Made of SUS430, with an adjuster
  • A one-compressor system is used to prevent breakdowns.

Specifications

  • Model number: DTF-35
  • External dimensions: 460 + 35 x 620 + 40 x 680mm
  • Internal dimensions: 336 x 356 x 295mm
  • Cooling performance: Maximum/-85℃, Regular use/-80 to -70℃
  • Cooling method: One compressor system
  • Capacity: Approximately 35L
  • Exterior: Electric zinc plated steel sheet
  • Interior: Stainless steel sheet (SUS304)
  • Heat insulator: Vacuum insulation material + hard foamed PU (polyurethane)
  • Refrigerant: Special mixed refrigerants (HFC)
  • Power supply:220V or 230V or 240V
  • Temperature Alarm: Lamp lighting + buzzer notification
  • Weight: Approx 65kg
  • With key
  • My Bio Cube
  • *Please specify the power supply at the time of your order.
  • Package size：640×760×870 mm　70 kg　 [About Package size]

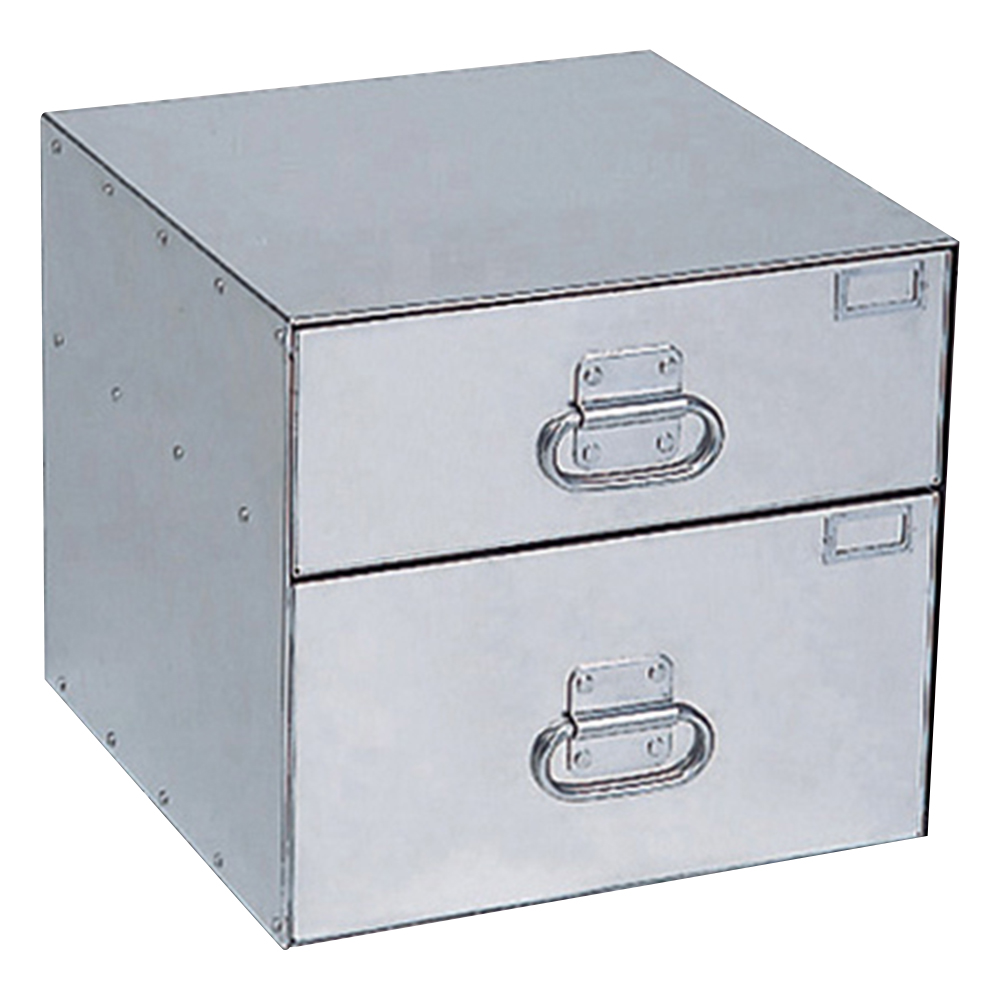

Standard tray

Order No: 2-6834-11
Features
It is a structure that adopted one-compressor system, hard to occur of failure.　　
The adoption of the vacuum insulation material, it has large volume in small space.　　
Freeze box can accommodate 20.
Specifications
Model number: Standard tray
External dimensions: 325 x 325 + 10 x 290mm
Internal dimensions: (Upper) 315 x 319 x 110, (Lower) 315 x 319 x 166mm
Material: Aluminum
Package size：350×350×300 mm　5 kg

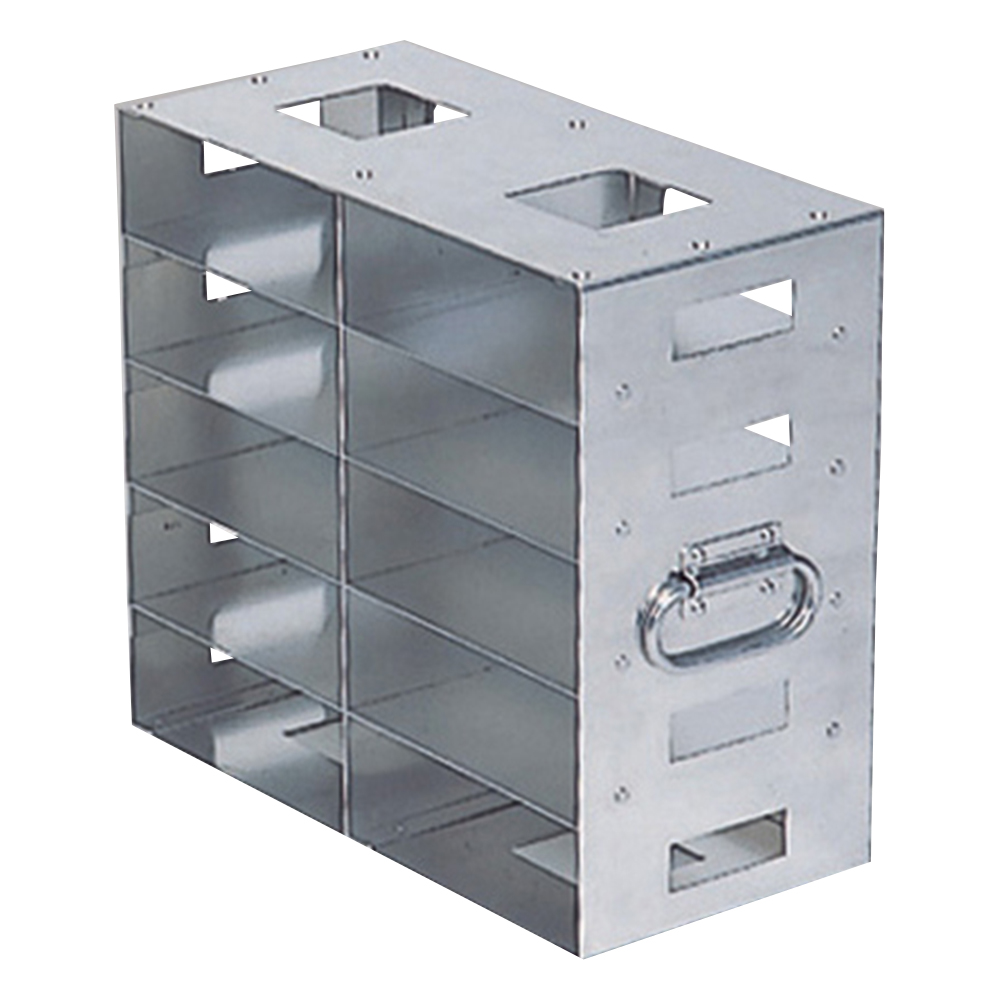

Freeze box tray

Order No: 2-6834-12
It is a structure that adopted one-compressor system, hard to occur of failure.　　
The adoption of the vacuum insulation material, it has large volume in small space.　　
Freeze box can accommodate 20.
Model number: Tray for freeze box
External dimensions: 153 x 308 + 10 x 281mm
Number of freeze boxes to be stored: 10 pcs
Material: Aluminum

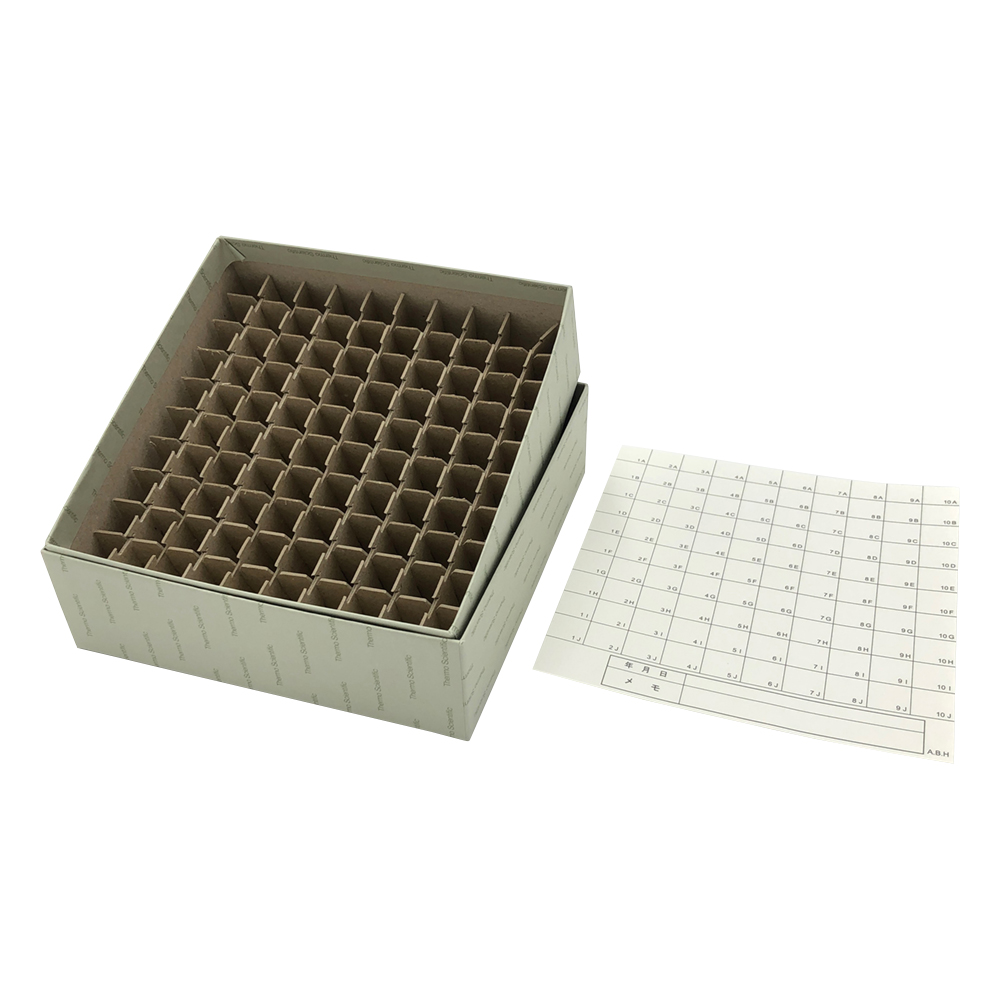

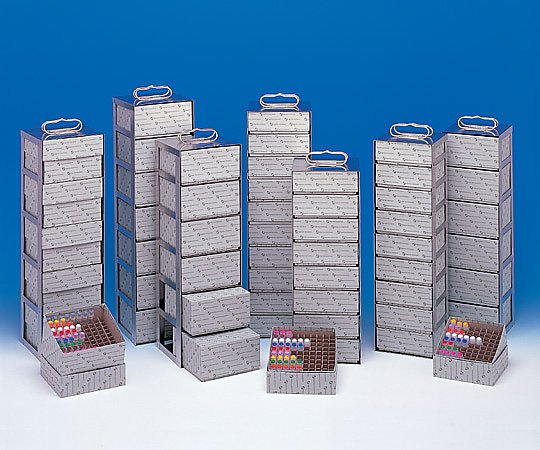

Freeze box IB-02100

Order No: 2-5480-02
Product name: Freeze box
Size (mm): 147 x 147 x 52
Adaptive tube size (mL): 1.2・2.0
Number of tube setting (pieces): 100
Quantity: 1 case (20 pieces)
Model number: IB-02100
Package size：320×330×290 mm　3.4 kg
Freeze box IB-02081

Order No: 2-5480-05
Product name: Freeze box
Size (mm): 134 x 134 x 52
Adaptive tube size (mL): 1.2・2.0
Number of tube setting (pieces): 81
Quantity: 1 case (20 pieces)
Model number: IB-02081
Package size：295×295×290 mm　2.81 kg　

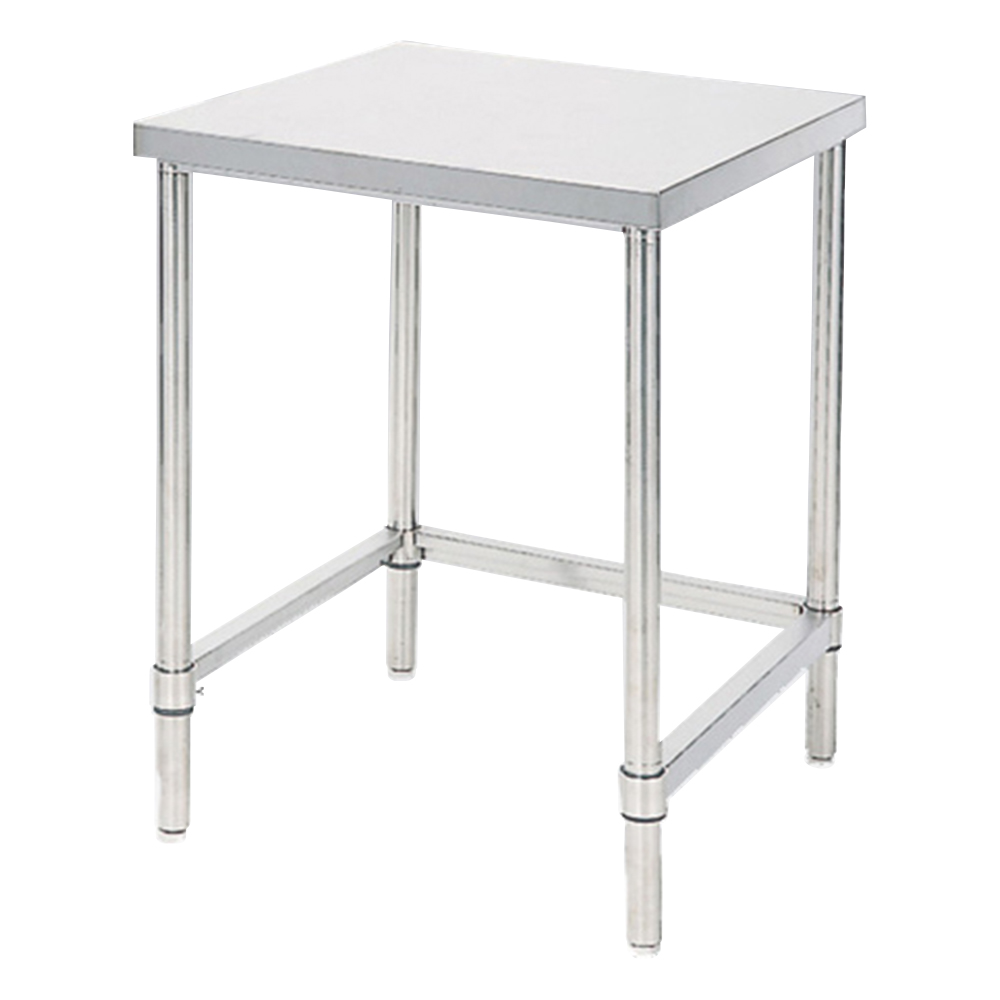

Stainless steel frame

Order No: 2-6834-15
Features
It is a structure that adopted one-compressor system, hard to occur of failure.　　
The adoption of the vacuum insulation material, it has large volume in small space.　　
Freeze box can accommodate 20.
Specifications
Model number: Stainless frame
External dimensions: 600 x 600 x 800mm
Made of Stainless Steel (SUS430), With adjuster
Withstand load: 150kg
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：620×620×123 mm　15 kg　
