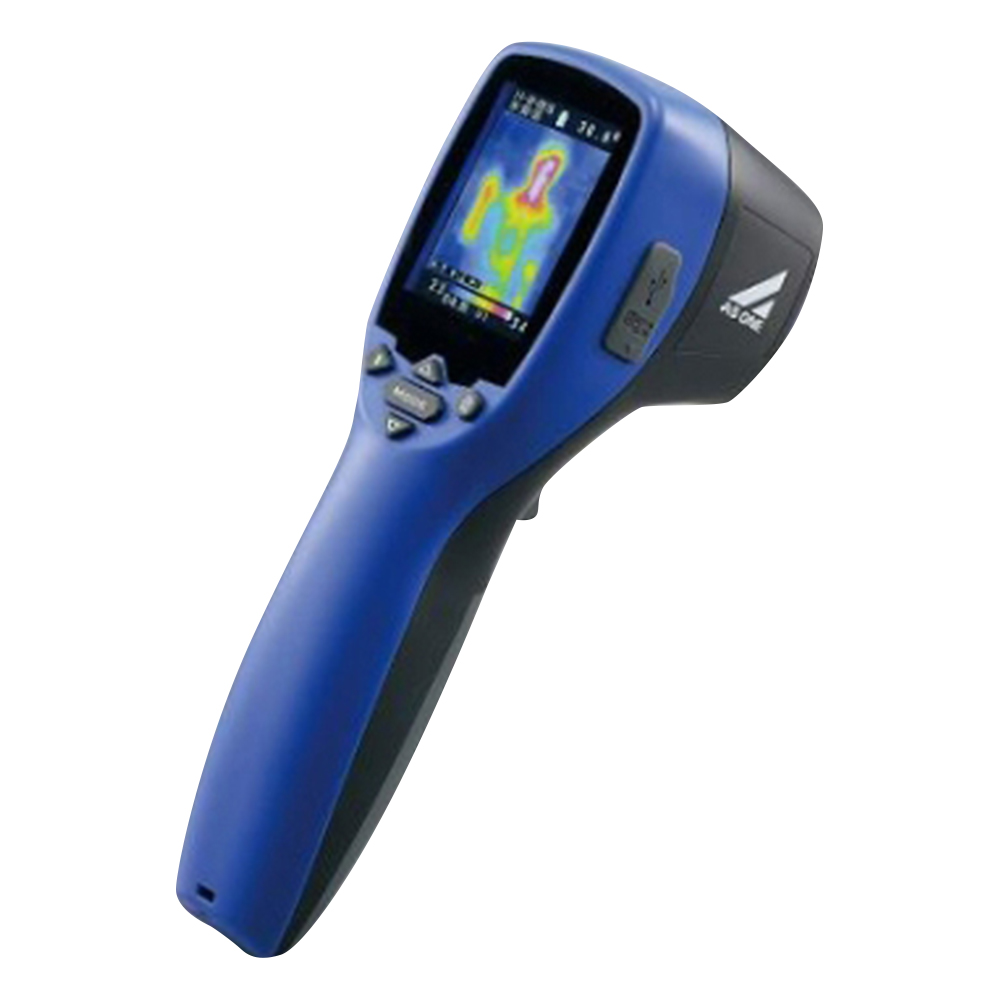

Thermography

SKU: 3-7406-01

Highlights

  • This device shows max. temperature, min. temperature and temperature in screen center.
  • By using dedicated software, possible to check temperature for each pixel.
  • Device allows you to set alarm which sounds when lower or upper temperature limit is exceeded.
TIM-03

Definition: 32×31
Resolution: 0.1°C
Measuring Range: -20 ~ +250°C
Accuracy: ±2°C or ±2%
View Angle: 40°x40°C
Min. Measuring Distance: 30mm
Water/Dustproof IP Code: IP54
Saving Format: Images/BMP, Videos/BDS/AVI(when connected to PC)/BIN(when used independently)
Image Storage Capacity: 25,000 images (when using included 8GB microSD card)
Interface: USB Mini-B
Application OS: Windows XP/7/8/10
Power Supply: AA Battery x4 (included for testing)
Dimensions: 74x95x234mm
Weight: Approx. 400g (including battery)
