| Max. Volume Flow | 170 m3/hr |
|---|---|
| Max. Vacuum | 2,800 Pa |
| Nominal capacity | 80m3/hr at 1,400 Pa |
| External dimensions (L x D x H) | 450mm x 340mm x 540mm |
| Voltage/Frequency | Connection to main power : 240 V – Internal circuit : 24V-DC/50-60 Hz |
| Power consumption | 150 Watts |
| Noise Level 100% | 49dB(A) |
| Weight | 18 Kg |
| Material | ABS Impact Resistant, Resistant to chemicals and corrosion |
| Suction | 1 Alsident S50 Suction Arm |
| Blow out opening | Lamellas, adjustable blow-out direction |
| Volumetric Flow Control | Infinitely variable volumetric flow control |
| Indicator | Loaded Filter Indicator |
| Combined Filter | Fine dust and odour filters : |

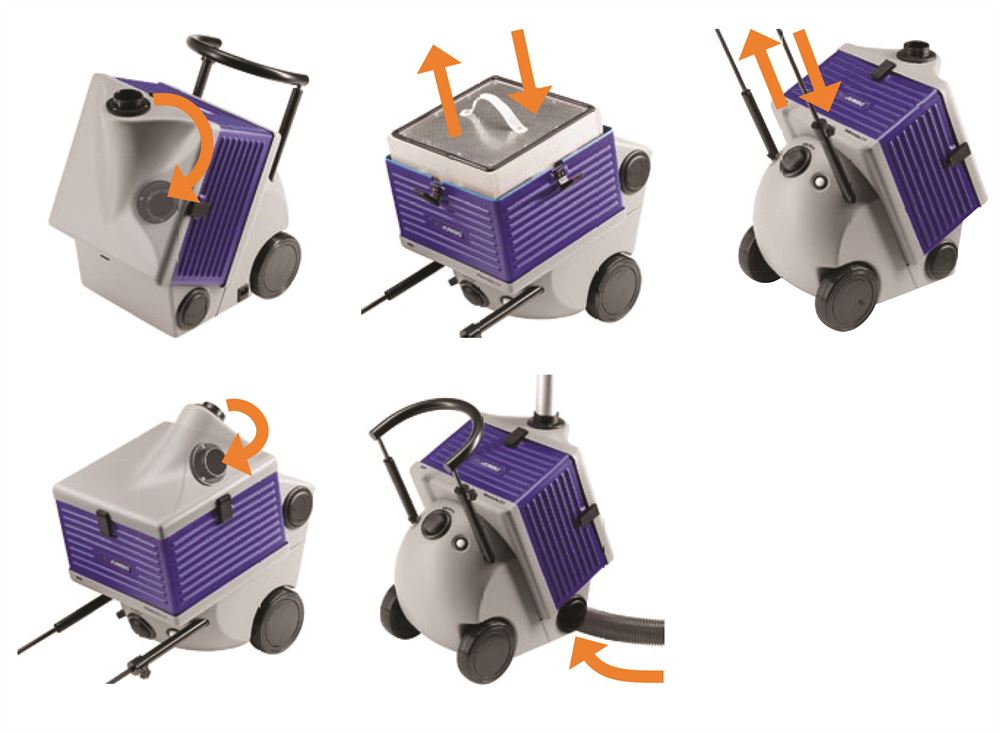

ULT Jumbo Filtertrolley 2.0 Med_Medical & Hospital
Mobile Extraction and Filtration Unit for Laser Fumes in Medical Technology
Laser fume, occurring in medical applications, means a health risk for patients and medical staff. It is a respirable germ-laden mixture of fine dust and corrosive aerosol, whereby solely mouth protection is insufficient. Building up firmly adhering layers of contamination, it also damages instrument technology. Pollutants therefore, must be completely eliminated directly at their places of origin. The ULT JUMBO Filtertrolley 2.0 MED provides a practicable extraction and filtration solution. In addition, laser typical unpleasant odours can be removed.
Applications:
- HF surgery
- Ophthalmology
- Dermatology
- Dentistry
- Anaesthesia
- Veterinary medicine etc.
