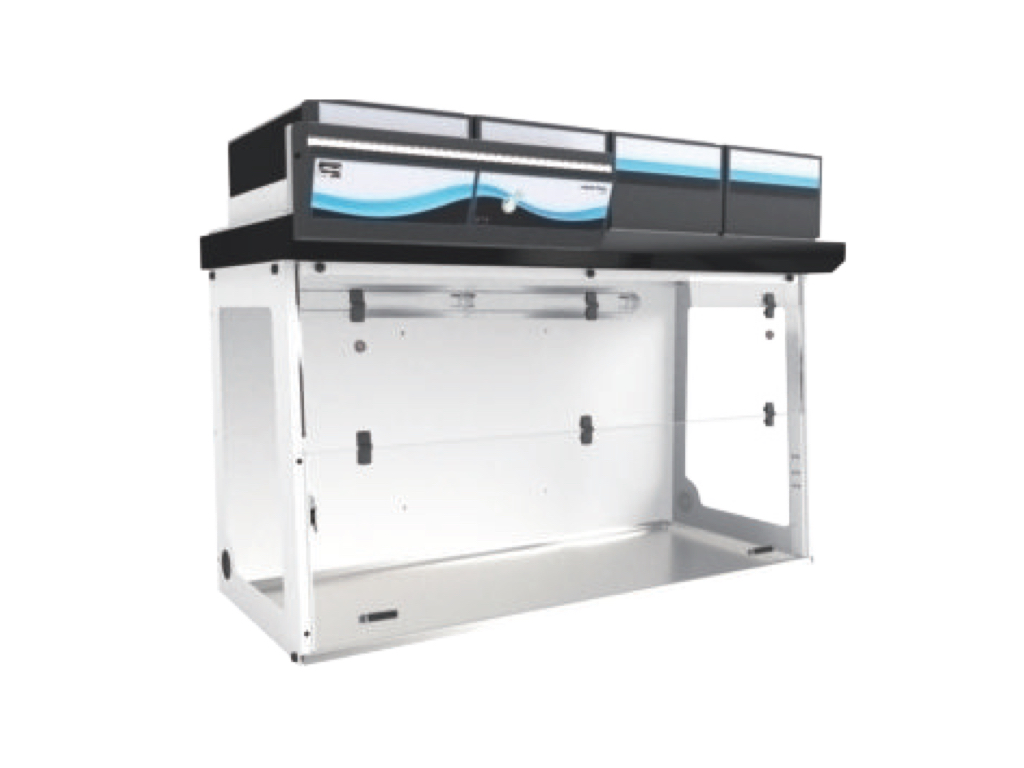

Erlab Captair Flow 714 Laminar Flow Cabinet

SKU: # Captair Flow 714

Captair Flow Smart 714, a 1819 mm/ 6 ft. length vertical flow laminar flow cabinet providing an ultra-clean, dust free enclosure to handle various applications from tissue culture, non-pathogenic biological samples, food microbiology, cell culture, to semi-conductor assembly.

Ergonomic Design

Slanted sash provides an comfortable working position and productivity

UV-C Germicidal Lamp

To sterilise the interior and contents before usage to prevent cross-contamination from the previous experiment

Dust Free Workstation

Class 5 air quality in the enclosure according to ISO 14644-1.

Connectivity

eGuard Software able to connect all the other workstations that have the same control system, to create a connected eco-system to monitor the safety in the laboratory seamlessly.

External dimensions (L x D x H)

1819 mm x 750 mm x 1332 – 1518 mm

Internal dimensions (L x D x H)

1687 mm x 648 – 653 mm x 1039 mm

SMART TECHNOLOGY

Simple, intuitive communication by light shows the status of the workstation

Filtration Type

High Efficiency Particulate Filter HEPA H14, filters guarantee 99.995% filteration efficiency for particles larger than 0.1 μm. Air quality in the enclosure complies with EN ISO 14644-1 (Class 5)

Air Volume Process

880 m3/hr – 4 filter modules

Sensor

Build in air flow anemometer
Sensor for fan speed and fan failure

ERGONOMIC DESIGN

Slanted design for comfortable and safe working position

BACTERICIDAL UV LAMPS

15 W Wavelength 254 nm

INTERNAL LIGHTING

Compact tubular fluorescent lighting – 800 Lux- IP 67

ENERGY PORTS

Located on the enclosure side panels, allow the passage of power cables/fluid pipes in the enclosure without interfering the work flow

WORK SURFACE

High chemical and mechanical resistance 304 L Stainless Steel Worktop. Rounded corners to facilitate cleaning operations. Built in spill tray

MOLECULAR FILTER

Option to add a layer of carbon filter for adsorption of ambient air VOCs

Base Cabinet

Base cabinet with 3 doors (option to change to stand with wheels)

Erlab Captair Flow Smart 714 Catalog

Download

General Catalog for Erlab Captair Flow

Download
