| Principle | Manometric; mercury-free; electronic pressure sensor |
|---|---|
| Measuring Range | 0-40, 0-80, 0-200, 0-400, 0-800, 0-2000, 0-4000 mg/l |
| Display | Backlit |
| Interfaces | USB |
| Auto - OFF | No |
| External Storage | USB |
| Internal Storage | 1 GB or up to 50000 measurement or calibration series |
| Measurement Time | Selectable: 5, 28, 60 and 90 days possible |
| Power Supply | 100 – 240 V / 50-60 Hz |
| Clock | Real Time Clock and Date |
| Portability | Benchtop |
| Autostart | No |
| Measuring Stations | 6 |
| Storage Interval | – every 2 hours (5 days) – every 12 hours (28 days) – every 24 hours (60 days) – every 24 – 48 hours (90 days) |
| IP Rating | IP 51 |
| Compliance | CE |
| Dimensions | 181 x 230 x 375 mm |
| Weight | 4100 g, unit with bottles & batteries 5775 g, complete with stirring unit |

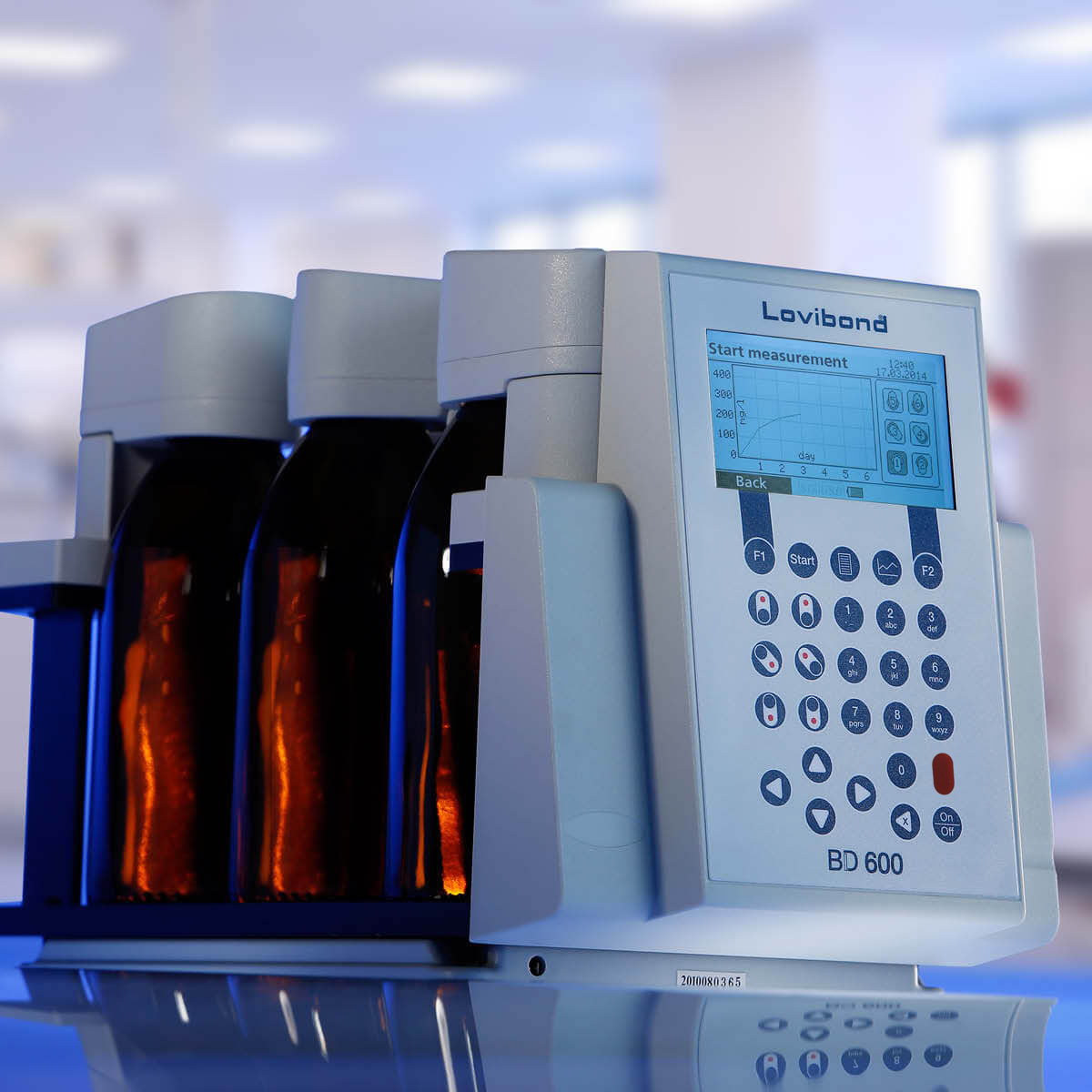

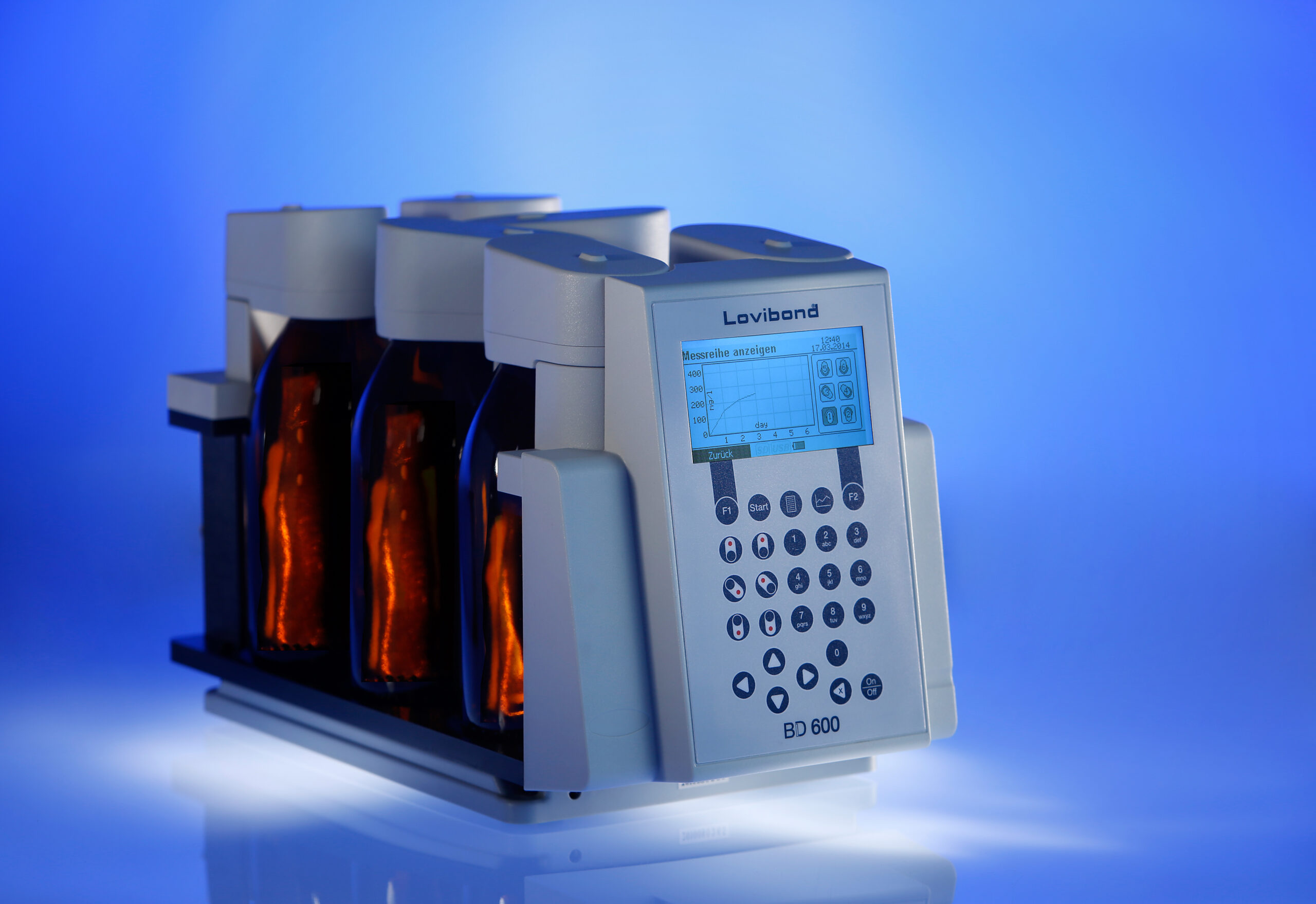

Lovibond BOD BD 600 GLP
Respirometric measuring system optimized for biodegradability tests under GLP conditions.
- Good Laboratory Practice compliant
- For OECD 301F and BOD testing
- Protected life time data memory (1 GB)
- Extended measurement duration up to 90 days possible
The BD 600 is a respirometric system for the determination of Biochemical Oxygen Demand (BOD). Save time, reduce the potential for errors and easily interpret data to help make process control decisions for your plant.
Significantly Reduced Sample Preparation
It’s easy to begin collecting data – simply add sample to the bottle, add nitrification inhibitor and place the sensor head on the bottle.
Operators do not have to be present at completion of test
Measurements are automatically taken and stored at regular time intervals and can be recalled at your convenience – no more weekend trips to the lab or plant!
Easy and quick interpretation of measurement values
In addition to displaying results of a sample directly in mg/L BOD, the large, integrated, display is able to display the BOD curve which makes it is easy to see and understand measurement data points and trends. In addition, each sensor head has an integrated LED. This allows operators to visually confirm which sample the data is being displayed for and reduces potential confusion or errors over which sample data is presented
Consistent Measurement Conditions
The Automatic Start Function ensures all measurements are taken at an equal sample temperature. When the measurement conditions are consistent across readings, operators do not have to work about temperature or pressure fluctuations skewing results.
Sample Identification and Tracking
The BD 600 interface, makes it easy to assign an identification code or sample name when setting up a new sample. This helps track a sample from the time it is collected and ensures traceability during sample measurement.
Use the remote control
If using an incubator with a glass door, operators can use the supplied remote control to display measurement data for a sample – without even opening the door! This further ensures that samples stay at a consistent temperature which is essential to accurate results.
