| LT-X Basic | Basic version of Kuhners stackable incubator shaker with temperature control (heating). |
|---|---|
| LT-X EcoDew® | Includes temperature control (heating) and Kuhners EcoDew® technology for humidity control. No cooling compressor unit is required for the precise and eco-friendly EcoDew® technology. |
| LT-X Compressor | The incubator shaker contains two cooling units operated with natural gas. This eco-friendly concept optimizes the energy consumption of the shaking incubator and provides more process reliability. |
| LT-X (C) | XC incubator shakers are optimised |
| Motor Type | Direct Drive |
| Shaking diameter (user-adjustable, all incl.) | 12.5/25/50 mm |
| Shaking motion | Orbital or Linear |
| Shaking frequency | at orbital, Ø 12.5 mm: 20 – 500 rpm |
| Accuracy, absolute | ≤ 800 rpm = ± 0.5 rpm |
| Tray size max. | EX (500 x 420mm) |
| Timer | 1 s – 999 h |
| Power consumption | < 700W (LT-X Basic) |
| Temperature range | RT + 10 °C to 80 °C (60 °C with CO2) without cooling |
| Temperature distribution at 37°C/85% r.H. | ± 0.30°C |
| Power of heating (electric) | 500 W |
| Gas circulation | 160 m3 / h |
| Humidity Range | up to 85% rH (depends on model & configuration) |
| Water refill | automatic |
| Principle of hum. sensor & control | capacitive sensor & evaporation & recondensation |
| CO2 Range | 0 to 20% |
| CO2 Accuracy absolute | 0.40 at 5 % CO2 |
| CO2 supply & principle | max. 2 bar overpressure |
| O2 Range | approximately 0% up to ambient O2 (20.95% at dry air) |
| N2 Supply | max. 0.5…0.8 bar overpressure |
| O2 Sensor & control | zirconium oxide |
| Available Option | Photosynthesis (LED); UV lamp; Black Window; Automatic Door; Touch Screen; Dual table; Kuhner TOM; IQOQ |
| Available Accessories | • Universal tray |

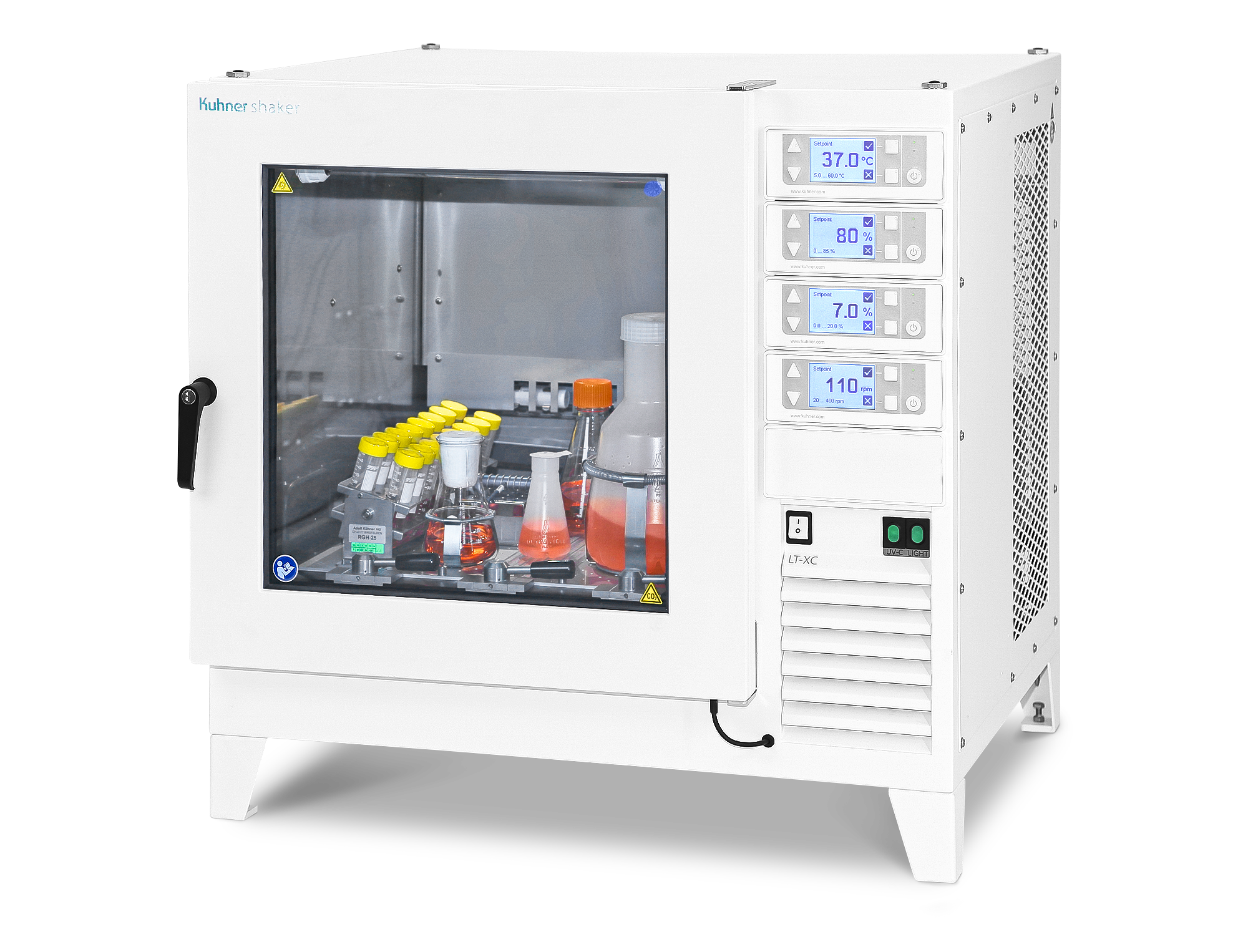

LT-X Incubator Shaker
Space Saving Stackable Incubator Shaker
The Kuhner LT-X (Lab-Therm) incubator shaker has the same capabilities as the larger ISF1-Z and ISF4-X models. The incubator shaker was specially developed to address the shaking needs of the biotechnology and pharmaceutical industries. The practical size of the LT-X means it will fit in any laboratory.
Performance characteristics of LT-X models
- Fits into any laboratory
- Used in biotech and pharmaceutical industries
- Accepts flasks up to 6 litres
- Two units can be stacked without the need for special kits or tools
- Improved direct drive: stronger, higher shaking frequencies, very long lasting
- Flexible and retrofittable: all options and accessories applicable
- Fast, direct information through parallel and clear display of all process parameters
- 5 year warranty – The improved maintenance-free direct drive offers higher shaking frequencies. It guarantees accurate control and low energy consumption/heat dissipation even at high speeds. The shaking diameter allow to be changed at any time – quickly and easily. 12.5, 25 & 50mm standard shaking diameter is changeable by user. Different fixed shaking diameters are available on request.
- With O2 & CO2 control for microbial, plant, human and animal cell cultures as optional
- With Humidity control for human and animal cell cultures as optional
Shaking Technology Forum
The “Forum Shaking Technology” is a collection of partner companies involved in different areas of the laboratory & biotechnology industry. The forum is a helpful resource for users of shaken bioreactors, providing support, information and a publication database.
Any questions regarding shaken cultures that you send to the forum are automatically forwarded by “Dr Shaker” to the relevant specialist.
The publication database gives an overview of scientific papers concerned with shaken cultures (from microtiter plates up to the 1000L shaken bioreactor). There are now more than 1000 publications in the database which is continuously updated.
