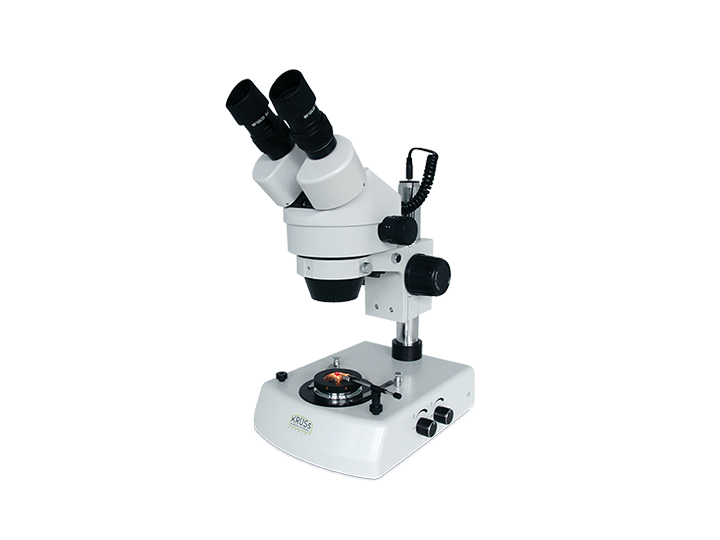

KSW5000 |
KSW5000-T |

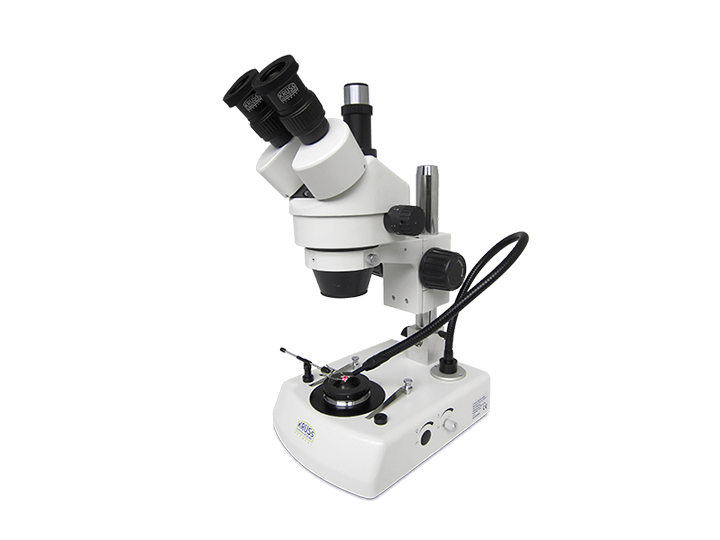

KSW5000-T-K-W |
|
OPTICAL HEAD |
45° inclined Adjustable interocular distance 51–75 mm Dioptric compensation |
||
OBJECTIVES |
0.7- 4.5x zoom lenses, object field 28.6–4.44 mm |
||
EYEPIECES |
10x wide-field eyepieces, field of view 20 |
||
MAGNIFICATION |
7-45x, optionally expandable to 14-90x |
||
WORKING DISTANCE |
Approximately 90 mm |
||
CONDENSER |
Dark field condenser with locking device for stone pincers |
||
ILLUMINATION |
LED incident and transmitted light Darkfield illumination |
LED incident and transmitted light Darkfield illumination |
LED transmitted light LED cold light source with light conductor Darkfield illumination |
STAND |
Metal |
||
SPECIAL EQUIPMENT |
Stone pincers Preparation brackets Base plate black or white changeable |
Phototube Stone pincers Preparation brackets Base plate black or white changeable |

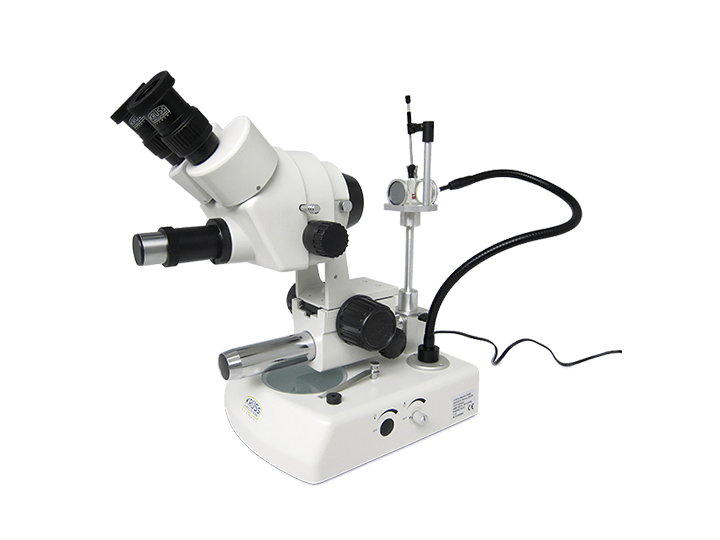

Phototube Stone pincers Preparation brackets Base plate black or white changeable Polarisation device Glass cuvette Cuvette table Horizontal mounting of microscope head possible |
POWER SUPPLY |
230 V, optional 115 V |
||
MODEL-SPECIFIC EQUIPMENT IN TYPE DESIGNATION | |||
T = Trinocular/phototube | |||
K = Cold light source |
Stereo Microscope for Zoom Objective KSW5000-series
Nothing escapes the view of these optics
The microscopes of the KSW5000 series are particularly suitable for the professional investigation of gemstones. Due to the large zoom range, the large working distance and the large depth of focus, a very pleasant work in many areas is possible. It offers a stepless zoom from 7 to 45x. The robust metal housing facilitates reliable work even in harsh environments. Various eyepieces and auxiliary lenses for adjusting the magnification and working distance are available as accessories. The microscopes of this series are equipped with dark field and stone tongs, partly also with cuvette table and polarization device.
Benefits:
- Very pleasant working due to large zoom range and large working distance
- Stepless zoom from 7 to 45x, optionally expandable to 90x
- Great depth of field
- With dark field and stone pincers, partly also with cuvette table and polarisation device
- Incident and transmitted light (depending on the equipment)
- Robust metal housing
