| 3E-040 | Temperature Combination: 40-50-60°C |
|---|---|
| 3E-045 | Temperature Combination: 45-55-65°C |
| 3E-050 | Temperature Combination: 50-60-70°C |
| 3E-055 | Temperature Combination: 55-65-75°C |
| 3E-060 | Temperature Combination: 60-70-80°C |
| 3E-065 | Temperature Combination: 65-75-85°C |
| 3E-070 | Temperature Combination: 70-80-90°C |
| 3E-075 | Temperature Combination: 75-85-95°C |
| 3E-080 | Temperature Combination: 80-90-100°C |
| 3E-085 | Temperature Combination: 85-95-105°C |
| 3E-090 | Temperature Combination: 90-100-110°C |
| 3E-095 | Temperature Combination: 95-105-115°C |
| 3E-100 | Temperature Combination: 100-110-120°C |
| 3E-105 | Temperature Combination: 105-115-125°C |
| 3E-110 | Temperature Combination: 110-120-130°C |
| 3E-120 | Temperature Combination: 120-130-140°C |
| 3E-130 | Temperature Combination: 130-140-150°C |
| 3E-140 | Temperature Combination: 140-150-160°C |
| 3E-150 | Temperature Combination: 150-160-170°C |
| 3E-160 | Temperature Combination: 160-170-180°C |
| 3E-170 | Temperature Combination: 170-180-190°C |
| 3E-180 | Temperature Combination: 180-190-200°C |
| 3E-190 | Temperature Combination: 190-200-210°C |
| 3E-200 | Temperature Combination: 200-210-220°C |
| 3E-210 | Temperature Combination: 210-220-230°C |
| 3E-220 | Temperature Combination: 220-230-240°C |
| 3E-230 | Temperature Combination: 230-240-250°C |

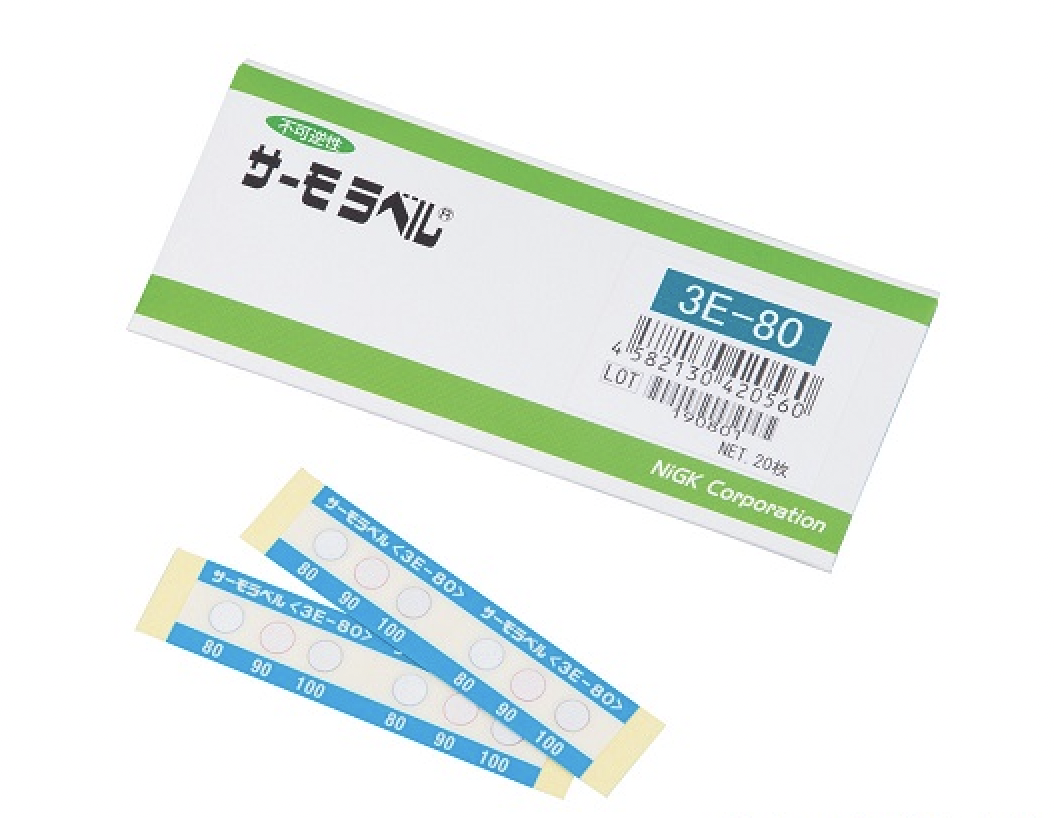

Temperature Labels (Irreversibility)
Highlights
- Since temperature indicating element uses melting point of stable melt pigment, it is exact and highly precise
General Specification
- Discolouration Accuracy: 3E – 40~150/±2°C, 3E-160·170/±2~3°C, 3E-180·190·200~230/±3°C
- Dimensions: Base/15x30mm (3E-40~110) · 17x32mm (3E-120~230), Temperature-indicating Element/⌀5mm
- Quantity: 1 box (20sheets)
