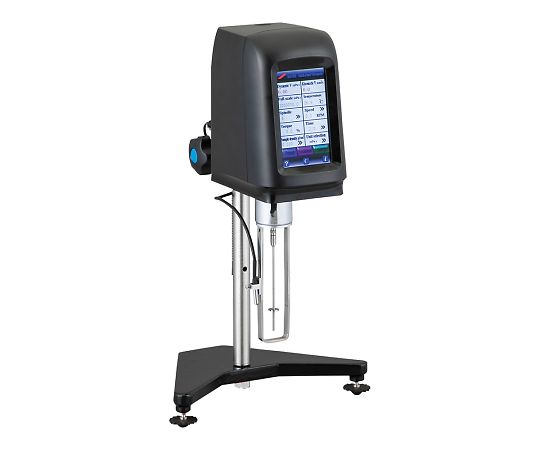

Touch Panel Viscometer (1 to 2 million mPa.s) ASJ-8ST
Features
- Equipped with a 5-inch touch panel, it has excellent operability and functionality.
- Automatically converts to kinematic viscosity by entering density.
- The measurement results are displayed in real time.
- You can select from four viscosity display units.
- The measurement range can be set arbitrarily, and it has a function to hold the final measurement value.
- Viscometer with excellent operability!
Specification
- measurement range (mPa*s) : 1 to 2 million
- measurement range (degrees C) : 0 to 100
- resolution : 1 mPa*s
- Accuracy: ± 1.0% (F.S.)
- Reproducibility: ± 0.5% (F.S.)
- rotation speed : 0.3 , 0.6 , 1.5 , 3 , 6 , 12 , 30 , 60 rpm
- FS Torque: 673.7 dyne-cm2
- materials of liquid contact part : SUS304
- power supply : AC100 to 240 V (AC adapter)
- Size: 285 x 300 x 565 mm (Maximum)
- Weight : about 5.3 kg (Include Stand)

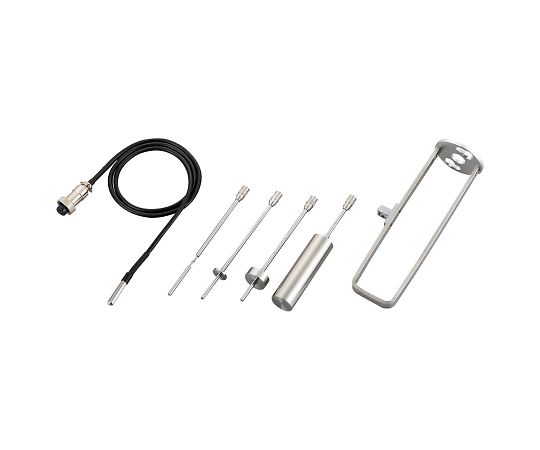

- Accessories: Standard Spindle (L1, L2, L3, L4), Guard Frame, RTD Probe, Stand Set, AC Adapter, Carrying Case
- *For 10 mPa ・ S or less, No.0 spindle is required separately.
- Package size：355×400×360 mm 8.9 kg
