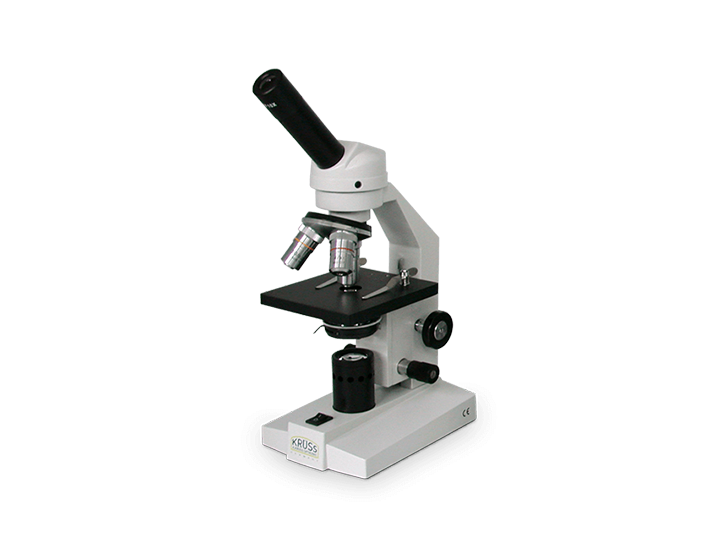

Transmitted Light Microscopes for Laboratory, Teaching and Production MML1000-series

SKU: Monocular Microscope MML1000-series

A strong start

Monocular microscopes are compact, inexpensive and ideal for many applications in laboratory, teaching and production. The solid weight of the microscope series provides stability even in harsh environments. The durable precision mechanics ensures optimal laboratory work for many years. We give extended warranty on case, optics and mechanics.

Application:

  • Quality control
  • Incoming inspection
  • Sampling
  • Simple laboratory applications
  • Simple clinical applications
  • Education: Popular school experiments for microscopy

MML1200

MML1300

MML1400

OPTICAL HEAD

45° inclined and 360° rotating

OBJECTIVE REVOLVER

3x

3x

4x

OBJECTIVES

Achromatic
4x/NA 0.10
10x/NA 0.25
40x/NA 0.65

Achromatic
4x/NA 0.10
10x/NA 0.25
40x/NA 0.65

Achromatic
4x/NA 0.10
10x/NA 0.25
40x/NA 0.65
100x/NA 1.25 oil    immersion

OCULAR

10x wide field planocular

CONDENSER

Double lenses Abbe condenser NA 1.25, with iris diaphragm and filter holder

ILLUMINATION

6 V 10 W with      reflector

6 V 10 W with reflector, adjustable

STAND

Metal tripod with coarse and fine adjustment

POWER SUPPLY

230 V, 50 Hz
