| Max. Volume Flow | 170 m3/hr |
|---|---|
| Max. Vacuum | 2,800 Pa |
| Nominal capacity | 80m3/hr at 1,400 Pa |
| External dimensions (L x D x H) | 450mm x 340mm x 540mm |
| Voltage/Frequency | Connection to main power : 240 V – Internal circuit : 24V-DC/50-60 Hz |
| Power consumption | 150 Watts |
| Noise Level 100% | 49dB(A) |
| Weight | 18 Kg |
| Material | ABS Impact Resistant, Resistant to chemicals and corrosion |
| Suction | 1 Alsident S50 Suction Arm |
| Blow out opening | Lamellas, adjustable blow-out direction |
| Volumetric Flow Control | Infinitely variable volumetric flow control |
| Indicator | Loaded Filter Indicator |

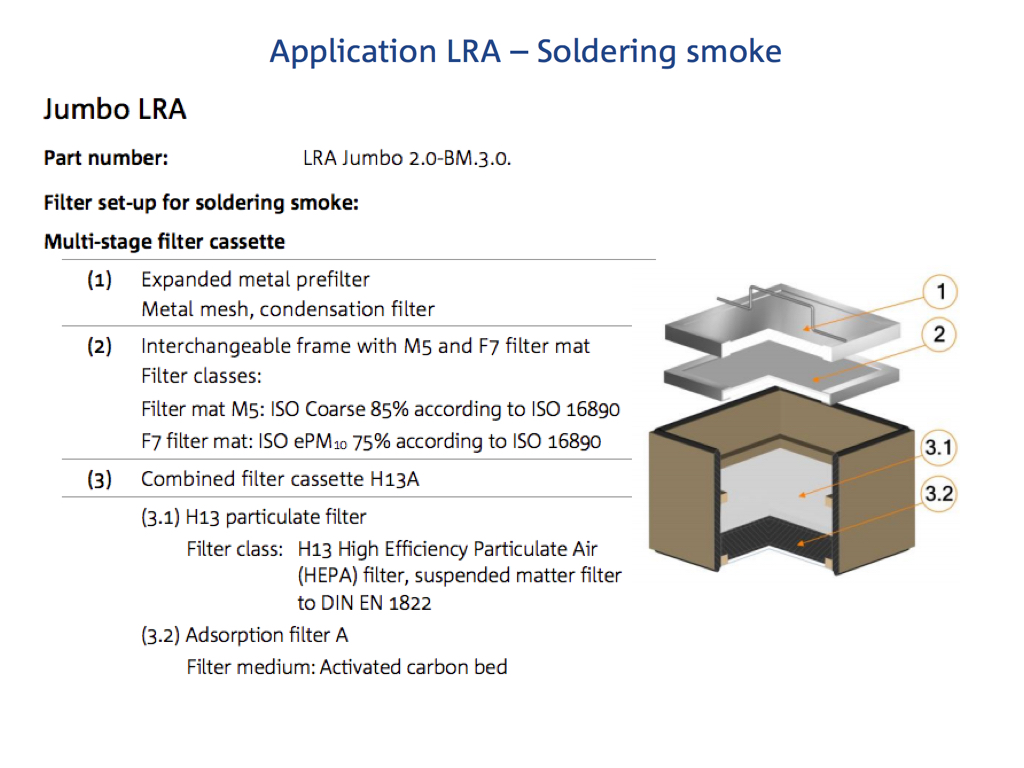

| Combined Filter | Multi-stage Filter Cassette |
ULT Jumbo Filtertrolley 2.0 LRA_Soldering Fumes

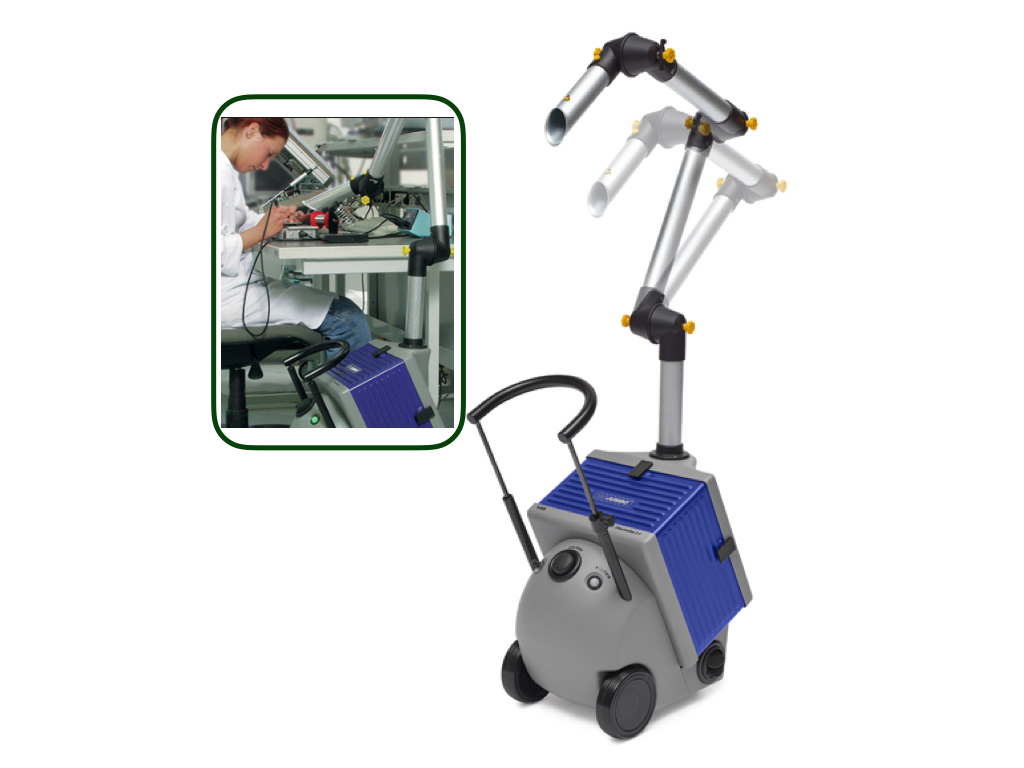

Mobile Filtration Solution for Extraction of Soldering Fumes and Smoke
Soldering smoke/fume is detrimental to people’s health. Fluxes, detergent residues and their decomposition products evaporating during the soldering process contain harmful substances.

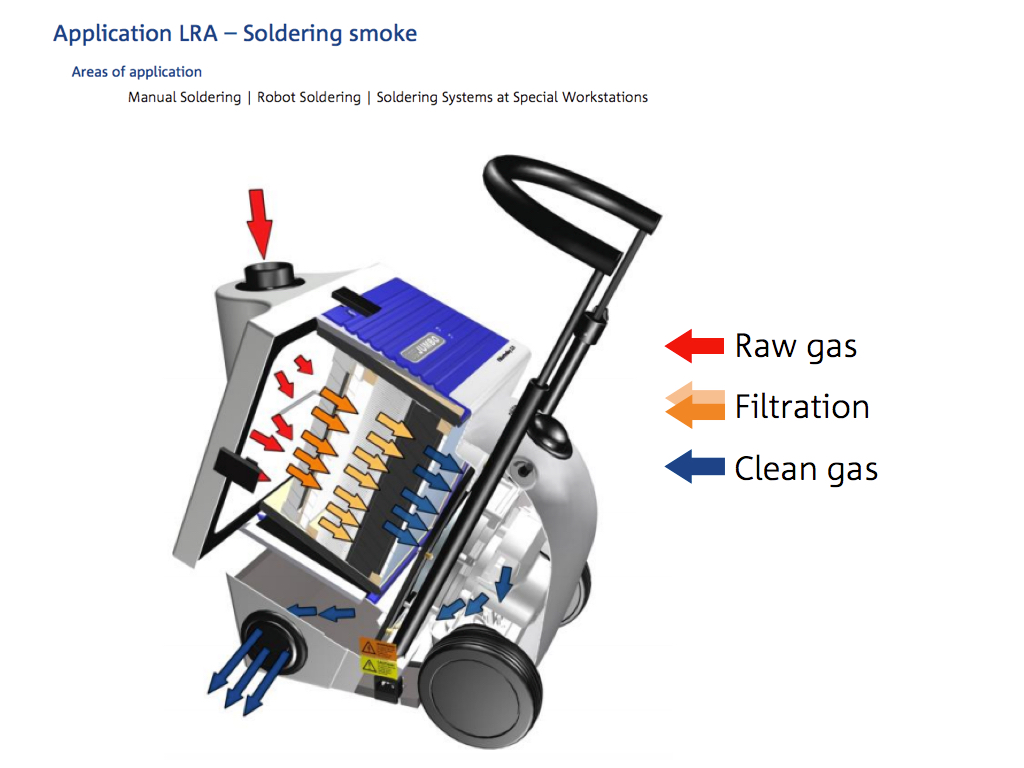

The ULT JUMBO Filtertrolley 2.0 LRA can be used for cleaning the air directly at the workplace. A high degree of cleaning is achieved so that the filtered air can be recycled into the working room without any loss of heat and affecting the room air balance. ULT JUMBO Filtertrolley 2.0 LRA is a specially designed extraction and filtration unit for individual soldering workstation with limited space. Its compact dimensions and ergonomics allow quick location changes and precise capturing of soldering fume directly from the workstation.
ULT Jumbo Filtertrolley 2.0 LRA fields of application
In electronics industry, with manual soldering operations :
- Point extraction
- Extraction integrated in soldering iron
In soldering machines :
- Wave soldering installations
- Reflow soldering installations
- Selective soldering installations
- Soldering robots
- Laser soldering operations
- Steam-phase soldering
