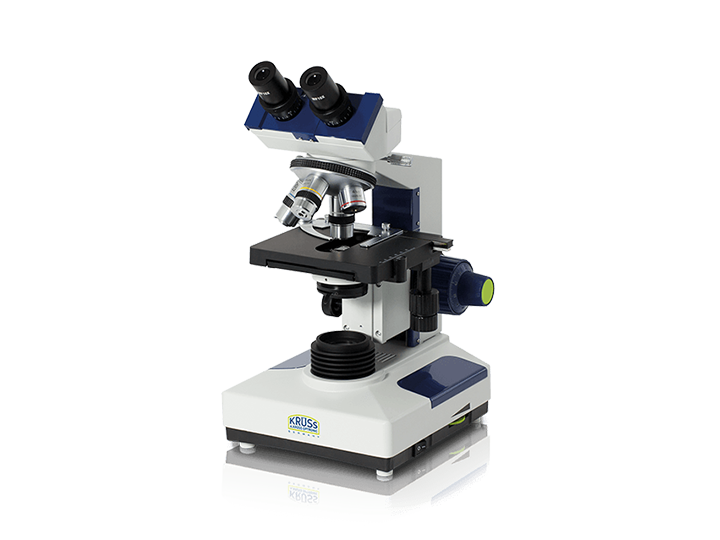

Transmitted Light Binocular Microscopes MBL2000-series

SKU: Binocular Microscope MBL2000-series

A strong start

Robust and universal. This model is ideal for general microscopy in laboratories, schools and universities. The MBL2000 offers an extensive range of add-on options: For example, with phase-contrast setting, a dark-field condenser, micrometre setup, plan achromatic objectives and additional eyepieces. A binocular optical head offers inclined viewing and interocular adjustment. A wide range of accessories is available for all models.

Application:

For the examination of herbal foods and feeding stuffs:

 Distinction and quality control of cereals, tuber starch, pure starch, legume seeds, vegetable crops, fruit, semi-luxury foods, spices, thickening agents, pollen occurring in honey and their characteristics, impurities and stocking (animal and vegetable matter) fungal pests, technical trimming, natural trimming, poisonous fruits and seeds)

In biology:

Identifying different cell structures, differentiating between plant and mammalian cells, investigating cell membranes or walls, understanding cellular functions

Gemmology and Earth Sciences:

Identifying and classifying minerals and rocks, gemstone analysis

Materials research:

Investigating material surfaces and cross-sections, describing material properties

Forensics:

Trace analysis and identification of counterfeits

Medicine:

Skin and cell examination, blood test according to Enderlein

Environment:

Water analysis (hydrobiology) in waters and sewage treatment plants

BASIC EQUIPMENT
OPTICAL HEAD Inclined optical head,
Symmetrical eye distance adjustment (55 – 75 mm),
Dioptre compensation with scale
OBJECTIVE REVOLVER Quadruple
OBJECTIVES Achromatic
4x 0.10 NA 17.04 mm working distance
10x 0.25 NA 8.05 mm working distance
40x 0.65 NA 0.32 mm working distance
100x 1.25 NA 0.13 mm working distance
EYEPIECES 10x, focal length 25 mm
CONDENSER Double lens ABBE Condenser, NA 1.25, with centering, height adjustment and filter holder
ILLUMINATION 6 V 20 W (or 30 W) halogen bulb with brightness control.
LED for models with the description LED
MICROSCOPE STAGE With 0.1 mm increment memory scale, left-right range of movement 74 mm, forwards – backwards 30 mm.
STAND Made of metal with coaxial coarse/fine knob with a range of 30 mm each. The right coarse adjustment knob comes with a mobility adjustment, the left coarse adjustment knob comes with a quick focusing adjustment
FURTHER EQUIPMENT Iris diaphragme, pivoting filter holder, height adjustment, glass filters in blue, yellow and green
MODELS
MBL2000 Device with basic equipment
MBL2000-T With phototube
MBL2000-30W With 30 Watt illumination
MBL2000-T-30W With phototube and 30 Watt illumination
MBL2000-PL With planachromatic objectives
MBL2000-T-PL With phototube and planachromatic objectives
MBL2000-PL-PH With planachromatic objectives and phase contrast feature and dark-field
MBL2000-T-PL-PH With phototube, planachromatic objectives and phase contrast feature
MBL2000-PL-PH-30W With planachromatic objectives, phase contrast feature, dark-field and 30 Watt illumination
MBL2000-T-PL-PH-30W With phototube, planachromatic objectives, phase contrast feature, dark-field and 30 Watt illumination
MBL2000-PL-30W With planachromatic objectives and 30 Watt illumination
MBL2000-T-PL-30W With phototube, planachromatic objectives and 30 Watt illumination
MBL2000-B With setup for blood examination: 150 W adjustable cold light source and dark-field condenser
MBL2000-T-B With Phototube and setup for blood examination: 150 W adjustable cold light source and dark-field condenser
MBL2000-PL-B With planachromatic objectives and setup for blood examination: 150 W adjustable cold light source and dark-field condenser
MBL2000-T-PL-B With phototube, planachromatic objectives and setup for blood examination: 150 W adjustable cold light source and dark-field condenser
MODEL-SPECIFIC EQUIPMENT IN TYPE DESIGNATION:
T = Trinocular/phototube
PL = Planachromatic objectives
PH = Phase contrast feature with dark field
B = Blood test setup
30W = 30 watt illumination
LED = LED illumination
